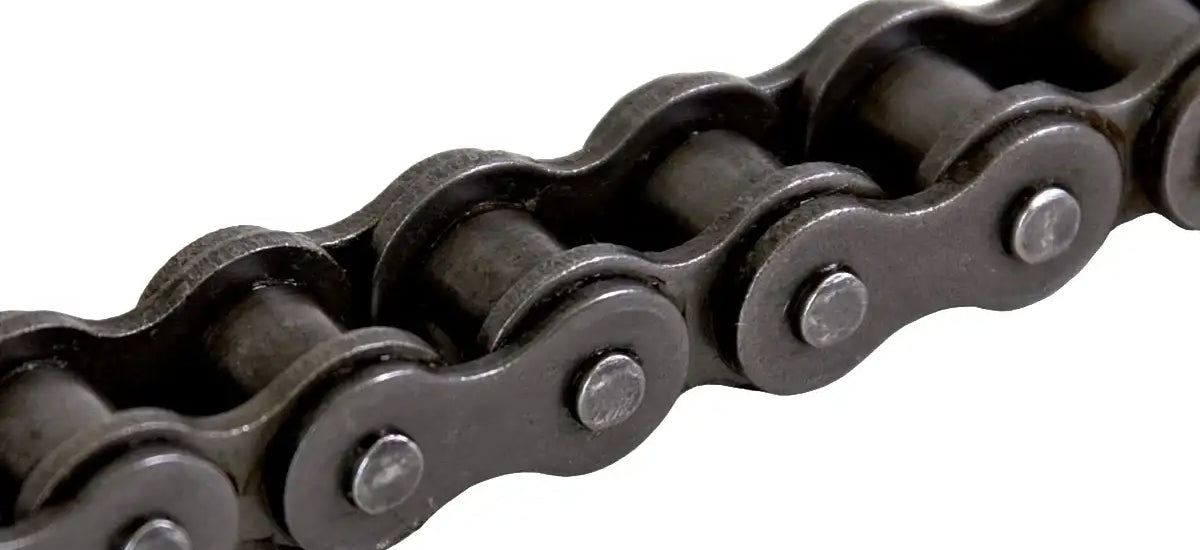

Premium 160K Roller Chain - 10ft Box

Roller Chain > More Roller Chains > Super Roller Chain > #160 Super High Strength Roller Chains

Premium 160K Roller Chain - 10ft Box

Note: Custom Cut to Length Chain Also Available
SKU: 160K-ROLLER-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51714169864559" , "metafield_value":""}]
Premium 160K Roller Chain - 10ft Box Features
Premium 160K Roller Chain - 10ft Box Specifications
#160K roller chain is apart of the Super High Strength K series premium roller chains. This roller chain is manufactured using high-quality precision components to increase the working life, fatigue, and strength of the roller chain while still remaining within the dimensions of standard ANSI roller chain. K series roller chains will run on standard #160 roller chain sprockets and are recommended for slow to moderate speed, heavy load drive applications. Something else that sets this chain apart is that it features solid bushings and solid rollers, this greatly increased the performance, working life, and strength of the roller chain and decreases the energy consumption by creating less friction. If you're needing a large quantity of #160K roller chain or need any additional information please contact us and we will be happy to assist you!

Dimensions:
Premium 160K Roller Chain - 10ft Box
  • Chain #: 160K
  • Pitch (P): 2.000"
  • Roller Diameter (D): 1.125"
  • Width Between Plates (W): 1.250"
  • Link Plate Height (H): 1.882"
  • Side Plate Thickness (T): 0.252"
  • Pin Diameter (E): 0.563"
  • Pin Length (L): 2.504"
  • Average Tensile Strength: 68,200 LBS
  • Maximum Recommended Working Load: 12,760 LBS
  • Weight Per Foot: 6.8 LBS

Phone: (407) 347-3519
Email: sales@usarollerchain.com

See What All We Offer "Here"!
  • Chain #: 160K
  • Pitch (P): 2.000"
  • Roller Diameter (D): 1.125"
  • Width Between Plates (W): 1.250"
  • Link Plate Height (H): 1.882"
  • Side Plate Thickness (T): 0.252"
  • Pin Diameter (E): 0.563"
  • Pin Length (L): 2.504"
  • Average Tensile Strength: 68,200 LBS
  • Maximum Recommended Working Load: 12,760 LBS
  • Weight Per Foot: 6.8 LBS
