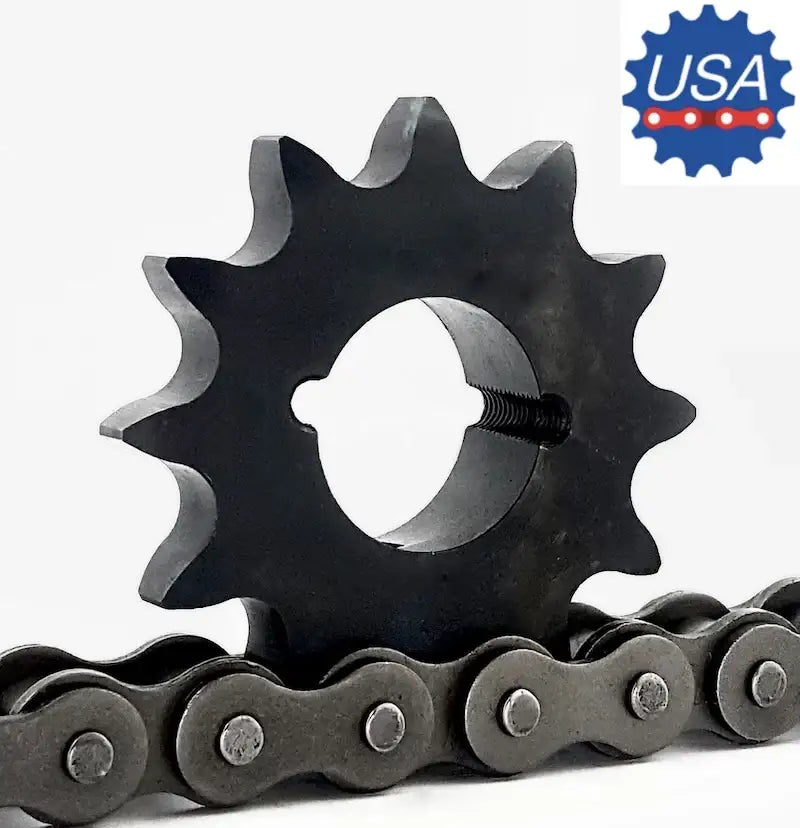

160BTB21 Sprocket (Taper Bushed)

Name: 160BTB21 Sprocket (Taper Bushed)
Brand: USA ROLLER CHAIN
SKU: 160BTB21-SPROCKET
Price: 619.99 USD
Availability: InStock

Note: Se Habla Espanol

$619.99

SKU: 160BTB21-SPROCKET

Item is in stock Only 0 left in stockItem is out of stock Item is unavailable

Request a Quote

Don’t see what you need? In a rush?

Call us!

Buy it With:

160BTB21 Sprocket (Taper Bushed) Features

160BTB21 Sprocket (Taper Bushed) Specifications

This 160BTB21 sprocket is a durable, high quality, and precision sprocket with 21 hardened teeth that is manufactured to accept a 3535 bushing. Sprockets that have hardened teeth last longer and are much more durable than those that don't. Something else that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #160 roller chain and sprocket which prevents premature wear or breakage. This sprocket is also black oxide coated which increases resistance to the environment and will prevent early rust build up. 160BTB21 sprockets are manufactured to accept a 3535 size taper bushing which we also stock with a wide range of bore sizes. We also have sprockets with finished bore configurations, and if you are needing a custom bore sprocket we can do those as well. For more information or large inquiry request please contact us and we will be happy to assist you.

160BTB21 Sprocket Dimensions

Sprocket Size: 160BTB21
Tooth Count: 21
Bushing Size: 3535
Outside Diameter: 14.470"
Pitch Diameter: 13.419"
Maximum Bore: 3-1/2"
Dimension (L): 3-1/2"
Dimension (C): 6-1/2"
Sprocket Type: B
Bushing Weight: 14.0 LBS
Sprocket Weight: 48.0 LBS
