160 Quad Capacity Roller Chain | 160-QC Chain
Note:
Standard Factory Lead Time is 16 - 18 Weeks, Expedite Is Available For 10 - 12 Week Delivery
SKU: 160-QC-CHAIN
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |
Buy it With:
160 Quad Capacity Roller Chain | 160-QC Chain Description/Features
160 Quad Capacity Roller Chain | 160-QC Chain Specifications
160 quad-capacity roller chain is designed with four times the respective amount of link plates as a standard chain. This unique design combines the benefits of leaf chain and roller chain into one unique chain capable of achieving tensile strengths higher than other chain types on the market. Our 160QC quad capacity chain is also manufactured using precision heat-treated and shot-peened components machined from top grades of alloy and carbon steels. We also supply our 160 quad-capacity roller chains with solid bushings and solid rollers, drastically improving the performance and longevity of the chain. Due to the unique design, the 160QC roller chain requires a special sprocket design, any sprockets used for this chain must have hardened teeth! We also supply sprockets for 160 quad-capacity roller chains. For additional information or to get a quote on our premium 160 quad-capacity roller chains, contact our customer support team, and we will be happy to assist you!

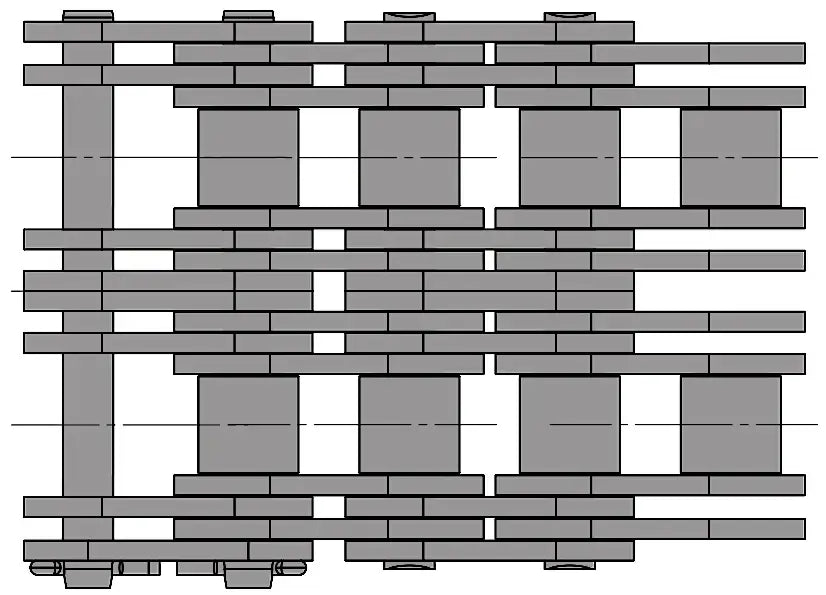

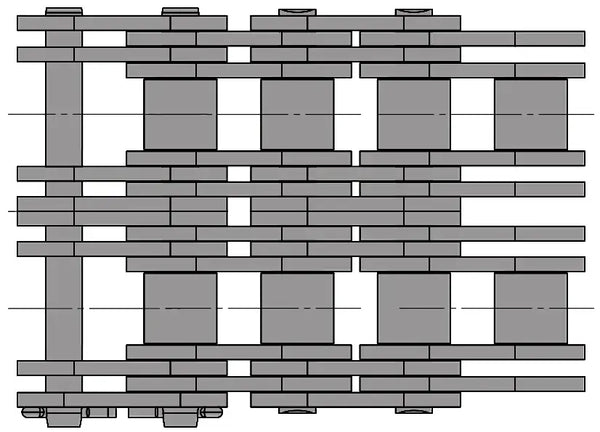

160 Quad-Capacity Chain Dimensions
- Chain Size: 160QC
- Pitch (P): 2.000"
- Inside Width (W): 1.125"
- Roller Diameter (R): 1.250"
- Pin Diameter (D): 0.562"
- Plate Height (H): 1.839"
- Plate Thickness (To): 0.250"
- Plate Thickness (Ti): 0.250"
- Transverse Pitch (QC): 3.311"
- Average Ultimate Strength: 251,340 LBS
- Chain Size: 160QC
- Pitch (P): 2.000"
- Inside Width (W): 1.125"
- Roller Diameter (R): 1.250"
- Pin Diameter (D): 0.562"
- Plate Height (H): 1.839"
- Plate Thickness (To): 0.250"
- Plate Thickness (Ti): 0.250"
- Transverse Pitch (QC): 3.311"
- Average Ultimate Strength: 251,340 LBS
