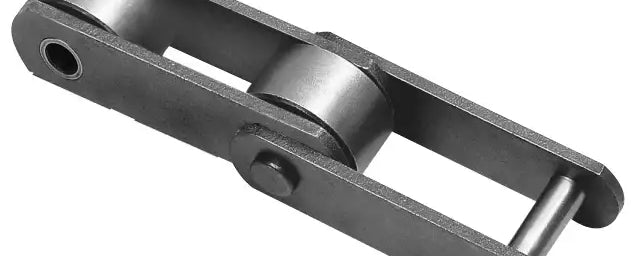

1594 Chain

Specialty Chain > Engineering Class Chains > Roller Conveyor Chain > 1594 Roller Chain

1594 Chain

Note: Custom Cut to Length Chain Also Available
SKU: 1594-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51714163540335" , "metafield_value":""}]
1594 Chain Features
1594 Chain Specifications
1594 Chain is a roller conveyor chain that is manufactured to specific specifications and standards throughout the industry. This 1594 Chain features premium solid components that have been engineered and manufactured to have high strength, a long working life, and great performance. Each component has either been heat-treated or hardened to increase the strength and working life of the chain. USA Roller Chain and Sprockets is a one-stop one-shop facility meaning you can get everything you need from one place. We also offer a full line of high quality 1594 sprockets with very short lead-times. For more information or to get a quote on 1594 roller conveyor chain please contact us and one of our highly-trained customer service staff will be happy to assist you!

Dimensions:
1594 Chain
  • Chain #: 1594
  • Pitch: 4.000"
  • Pin End To CL (B): 1.33"
  • Pin Head To CL (C): 1.11"
  • Inside Width (E): 1.19"
  • Roller Diameter (D): 2.00"
  • Roller Width (L): 1.13"
  • Roller Style: T
  • Roller Material: Carbon Case Hardened
  • Pin Diameter (G): 0.44"
  • Pin Material: Carbon Heat-Treated
  • Sidebar Height (H): 1.25"
  • Sidebar Thickness (T): 0.19"
  • Sidebar Material: High Carbon
  • Bushing Material: Carbon Case Hardened
  • Bearing Area: 0.69"
  • Ultimate Strength: 16,500 LBS
  • Maximum Working Load: 2,400 LBS
  • Weight Per Foot: 5.3 LBS

Roller Style: 1594 Chain
