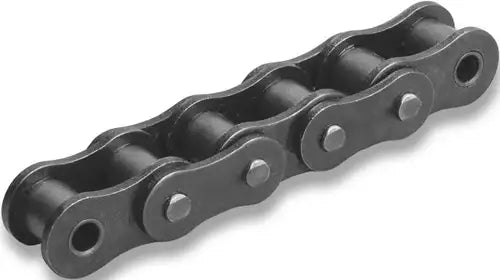

Premium 140HE Roller Chain - 10ft Box
Premium 140HE Roller Chain - 10ft Box
Note:
Custom Cut to Length Chain Also Available
Product Code: 140HE-ROLLER-CHAIN
Shipping calculated at checkout.
Couldn't load pickup availability
Other Customers Viewed
#140HE roller chain is apart of the Super High Strength HE series premium heavy roller chains. Each component that goes into HE series roller chains has been made with quality material and precision machining to produce a chain that has superior performance and working life. This roller chain features solid bushings and solid rollers for increased performance, working life, and strength and decreased internal friction and energy consumption. Additionally it has fully heat-treated pins for a much better shock load rating and durability. #140HE roller chain has thicker side-plates as well and fully meets all ANSI Standards so it will run on standard #140 roller chain sprockets. If you're needing a large quantity of #140HE roller chain or need any additional information please contact us and we will be happy to assist you!
Dimensions:
Phone: (407) 347-3519
Email: sales@usarollerchain.com
See What All We Offer "Here"!
Dimensions:
- Chain #: 140HE
- Pitch (P): 1.750"
- Roller Diameter (D): 1.000"
- Width Between Plates (W): 1.000"
- Link Plate Height (H): 1.610"
- Side Plate Thickness (T): 0.250"
- Pin Diameter (E): 0.500"
- Pin Length (L): 2.280"
- Average Tensile Strength: 56,600 LBS
- Maximum Recommended Working Load: 11,310 LBS
- Weight Per Foot: 5.64 LBS
Email:
See What All We Offer "Here"!
Feature
- Super High Strength
- Premium Quality Roller Chain
- Meets & Exceeds ANSI Standards
- Has Solid Bushings & Solid Rollers
- Manufactured Using Precession Components
- Wide Side-plates
- Fully Heat-Treated Pins
- Stainless Shot-Peened Components
- Has Thicker Side-Plates
- Chain #: 140HE
- Pitch (P): 1.750"
- Roller Diameter (D): 1.000"
- Width Between Plates (W): 1.000"
- Link Plate Height (H): 1.610"
- Side Plate Thickness (T): 0.250"
- Pin Diameter (E): 0.500"
- Pin Length (L): 2.280"
- Average Tensile Strength: 56,600 LBS
- Maximum Recommended Working Load: 11,310 LBS
- Weight Per Foot: 5.64 LBS
