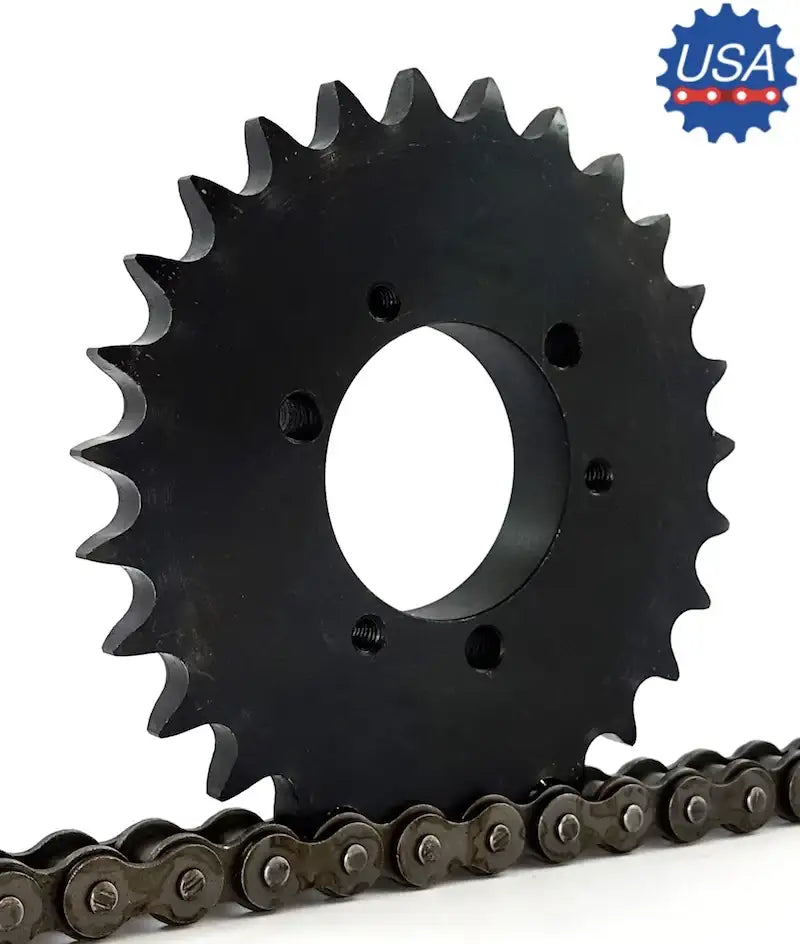

140F30 Sprocket (QD Type)

140F30 Sprocket (QD Type)

Note: Custom Cut to Length Chain Also Available
$824.99
$824.99
In Stock
On Sale Sold out
Product Code: 140F30-SPROCKET
In Stock
Shipping calculated at checkout.

Login to Request a Quote

Other Customers Viewed
140 Roller Chain 10ft Box - 140 Chain | ANSI Roller Chain
140 Roller Chain 10ft Box - 140 Chain | ANSI Roller Chain
$289.99
Login
General Duty Plus #140 Roller Chain - 10ft Box
General Duty Plus #140 Roller Chain - 10ft Box
$414.99
Login
Premium #140 Roller Chain - 10ft Box | Premier Series Chain
Premium #140 Roller Chain - 10ft Box | Premier Series Chain
$719.99
Login
View full details
Description
Specification
This 140F30 sprocket is a durable, high quality, and precision sprocket with 30 hardened teeth that is manufactured to accept a F bushing. Sprockets that have hardened teeth last longer, perform better, and are much more durable than those that don't. Something else that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #140 roller chain and sprocket. Meeting strict ANSI Standards prevents premature wear or breakage as well as making it directly interchangeable with other brands. This sprocket is also black oxide coated which increases resistance to the environment and will prevent early corrosion. 140F30 sprockets are manufactured to accept a F type QD bushing which, we also stock with a wide range of bore sizes. Additionally we offer sprockets with finished bore configurations, and if you need a custom sprocket we have the capabilities on providing them within a fast lead-time and at really great prices. For more information or large quantity request please contact us and we will be happy to assist you.

140F30 Sprocket Dimensions
  • Sprocket Size: 140F30
  • Tooth Count: 30
  • Bushing Type: F
  • Outside Diameter: 17.700"
  • Pitch Diameter: 16.742"
  • Sprocket Type: B1
  • Maximum Bore: 3-15/16"
  • Dimension (L1): 3-5/8"
  • Dimension (L2): 4"
  • Dimension (C): 6-5/8"
  • Dimension (Y): 2-9/16"
  • Dimension (P): 1/8"
  • Dimension (G): 1-37/64"
  • Dimension (X): 2-1/2"
  • Dimension (T): 0.924"
  • Bushing Weight: 11.50 LBS
  • Sprocket Weight: 60.4 LBS

Phone: (407) 347-3519
Email: sales@usarollerchain.com

Click Here To See Our Other Products!

Feature

  • Premium Quality Sprocket
  • Fully Meets All ANSI Standards
  • High Performance
  • Extremely Durable
  • Fully Black Oxide Coated
Featured image
  • Sprocket Size: 140F30
  • Tooth Count: 30
  • Bushing Type: F
  • Outside Diameter: 17.700"
  • Pitch Diameter: 16.742"
  • Sprocket Type: B1
  • Maximum Bore: 3-15/16"
  • Dimension (L1): 3-5/8"
  • Dimension (L2): 4"
  • Dimension (C): 6-5/8"
  • Dimension (Y): 2-9/16"
  • Dimension (P): 1/8"
  • Dimension (G): 1-37/64"
  • Dimension (X): 2-1/2"
  • Dimension (T): 0.924"
  • Bushing Weight: 11.50 LBS
  • Sprocket Weight: 60.4 LBS
