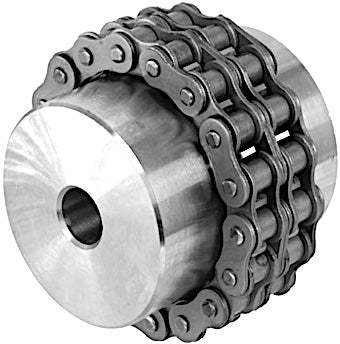

08B-2 Roller Chain Coupling - 86mm OD
Note:
Custom Cut to Length Chain Also Available
SKU: 14030400-COUPLING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
08B-2 Roller Chain Coupling - 86mm OD Features
08B-2 Roller Chain Coupling - 86mm OD Specifications
Our 08B-2 chain coupling is manufactured following ISO 606 and British Standards. It comprises a strand of 08B-2 roller chain and two 08B sprockets with 18 teeth. Roller chain couplings are great for transmission torque and allow for axial shaft movements but are not ideal for high shock load applications. Our premium 08B-2 roller chain is precision-made from top-grade materials and is coupled with high-strength steel sprockets for optimal working life. Due to the simplistic design, 08B-2 chain couplings are easy to replace, service, and maintain. The sprockets will be supplied with plain stock bores, but custom bore sizes are available upon request.
08B-2 Chain Coupling Dimensions
- Part #: 14030400
- Chain Size: 08B-2
- Nominal Torque: 240 Nm
- Moment of Inertia GD^2: 0.00474 kgm^2
- P/n Max.: 0.0246 KW/min-1
- n Max.: 5500 min-1
- Dimension (d): 15mm
- Dimension (D1): 60mm
- Dimension (I): 32mm
- Dimension (B): 20.7mm
- Max. Space Required (G): 86mm
- Dimension (L): 71mm
- Weight: 1.83 kG
- Part #: 14030400
- Chain Size: 08B-2
- Nominal Torque: 240 Nm
- Moment of Inertia GD^2: 0.00474 kgm^2
- P/n Max.: 0.0246 KW/min-1
- n Max.: 5500 min-1
- Dimension (d): 15mm
- Dimension (D1): 60mm
- Dimension (I): 32mm
- Dimension (B): 20.7mm
- Max. Space Required (G): 86mm
- Dimension (L): 71mm
- Weight: 1.83 kG
