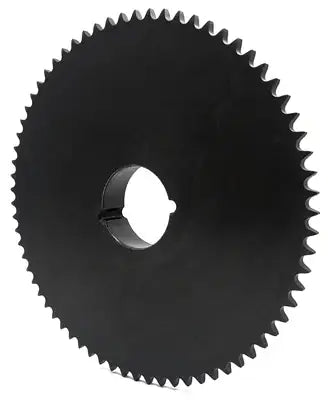

12BTB60 Sprocket (Taper Bushed)
Note:
Custom Cut to Length Chain Also Available
SKU: 12BTB60-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
12BTB60 Sprocket (Taper Bushed) Features
12BTB60 Sprocket (Taper Bushed) Specifications
This 12BTB60 sprocket is a metric taper bushed style roller chain sprocket manufactured under ISO and British Standard 228 and is made to accept a 2517 taper bushing. Our 12BTB60 sprockets are made with reliability and performance in mind, so we use high-quality carbon steel (CS) and have the sprocket precision cut to ensure maximum performance and wear life. We also offer upgrades on our 12BTB60 sprockets such as black-oxide coatings and heat-treated hardened teeth, though hardened tooth sprockets are typically not utilized on tooth counts past 30. Besides the 60 tooth sprocket, we also stock a high-quality 12B-1 roller chain, 2517 bushing, and a wide array of roller chain accessories. For more information or to get a quote on taper bushed 12BTB60 sprockets, please contact us and one of our sales team members will be happy to assist you.
12BTB60 Sprocket Dimensions
- Sprocket Size: 12BTB60
- Tooth Count: 60
- Pitch Diameter: 363.99mm
- Bushing Size: 2517
- Maximum Bushing Bore: 63.50mm
- Dimension (L): 44.45mm
- Dimension (C): 107.95mm
- Sprocket Weight: 9.22 kg
- Bushing Weight: 1.59 kg
- Sprocket Size: 12BTB60
- Tooth Count: 60
- Pitch Diameter: 363.99mm
- Bushing Size: 2517
- Maximum Bushing Bore: 63.50mm
- Dimension (L): 44.45mm
- Dimension (C): 107.95mm
- Sprocket Weight: 9.22 kg
- Bushing Weight: 1.59 kg
