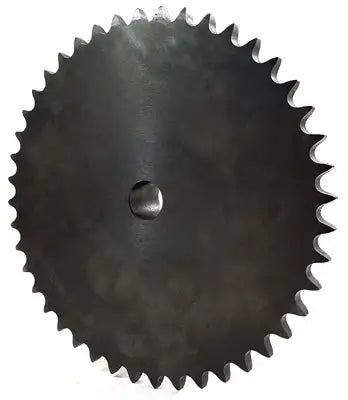

12B45 Sprocket With Stock Bore

This 12B45 sprocket with a stock bore is a metric roller chain sprocket manufactured under ISO and British Standard 228. Our 12B45 sprockets are made with reliability and performance in mind, so we use high-quality carbon steel (CS) and have the sprocket precision cut to ensure maximum performance and wear life. Besides the stock bore we also can supply these sprockets with a specific plain or finished (has key-way and set screws) bore size. We also offer upgrades on our 12B45 sprockets such as black-oxide coatings and heat-treated hardened teeth, though hardened tooth sprockets are typically not utilized on tooth counts past 30. Besides the 45 tooth sprocket, we also stock a high-quality 12B roller chain and a wide array of roller chain accessories. For more information or to get a quote on 12B45 sprockets, please contact us and one of our sales team members will be happy to assist you.

12B45 Sprocket Dimensions

• Sprocket Size: 12B45
• Tooth Count: 45
• Pitch Diameter: 273.09mm
• Stock Bore: 25mm
• Maximum Recommended Bore: 70mm
• Hub Diameter: 107mm
• Length Thru Bore (LTB): 40mm
• Sprocket Weight: 6.34 kg
