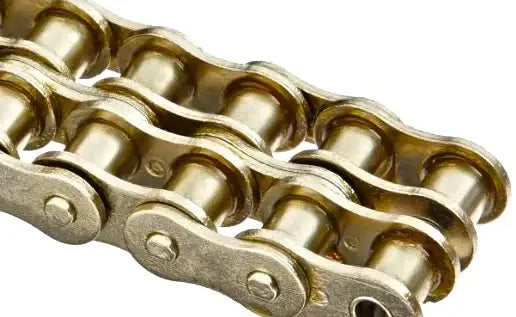

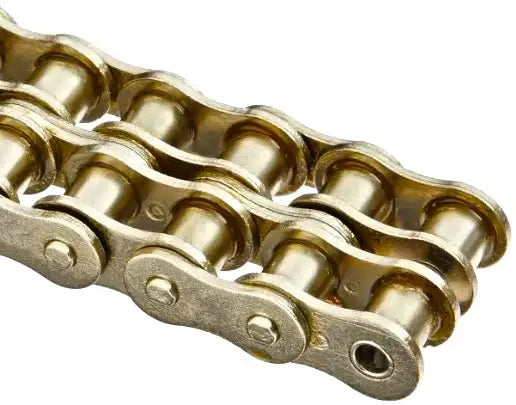

12B-2 Nickel Plated Roller Chain

Roller Chain > Corrosion-Resistant Roller Chain > Nickel Plated Roller Chain > Nickel Plated Metric Roller Chain > Double Strand Nickel Plated Metric Roller Chain

12B-2 Nickel Plated Roller Chain

Note: Custom Cut to Length Chain Also Available
SKU: 12B-2-NICKEL-ROLLER-CHAN
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51714144174447" , "metafield_value":""}]
12B-2 Nickel Plated Roller Chain Features
12B-2 Nickel Plated Roller Chain Specifications
12B-2 nickel plated roller chain offers high strength, durability, great performance, and conforms to all ISO standards. The nickel plating on this chain has been done to each component before being assembled and then inspected to ensure a full coverage and a smooth surface to for the longest working life possible and to prevent chemical attack along with stress cracking. Nickel plated roller chain is very useful in humid and slightly corrosive applications where a normal roller chain won't hold up. 12B-2 nickel plated roller chain will run on standard 12B-2 sprockets and has the same dimensions as 12B-2 roller chain. Additionally we offer a full line of 12B-2 attachments, sprockets, and accessories!

Dimensions:
12B-2 Nickel Plated Roller Chain
  • Part Number: 12B-2NP
  • Pitch (P): 0.750"
  • Transverse Pitch (K): 0.766"
  • Roller Link Width (W): 0.460"
  • Roller Diameter (R): 0.475"
  • Pin Diameter (D): 0.225"
  • Overall Width (F): 1.697"
  • Plate Thickness (T1): 0.071"
  • Plate Thickness (T2): 0.071"
  • Plate Height (H): 0.634"
  • Weight: 1.529 LBS/ FT

Phone: (407) 347-3519
Email: sales@usarollerchain.com
  • Part Number: 12B-2NP
  • Pitch (P): 0.750"
  • Transverse Pitch (K): 0.766"
  • Roller Link Width (W): 0.460"
  • Roller Diameter (R): 0.475"
  • Pin Diameter (D): 0.225"
  • Overall Width (F): 1.697"
  • Plate Thickness (T1): 0.071"
  • Plate Thickness (T2): 0.071"
  • Plate Height (H): 0.634"
  • Weight: 1.529 LBS/ FT
