Roller Chain > More Roller Chains > Non-Marking Rubber Top Roller Chains
12B-2 Rubber Top Roller Chain Snap-On Style
Note:
Custom Cut to Length Chain Also Available
SKU: 12B-2-CLIP-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
12B-2 Rubber Top Roller Chain Snap-On Style Features
12B-2 Rubber Top Roller Chain Snap-On Style Specifications

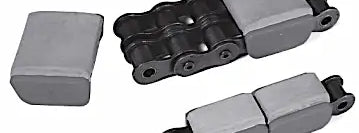

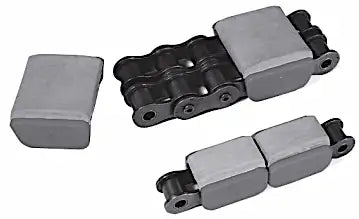

12B-2 rubber top roller chain snap-on style utilizes polyamide snap-on attachments that fit the standard chain. The benefits of this design are that the snap-on style makes it to where you can replace and repair links instead of having to buy a whole new chain, and they help protect the chain. Our 12B-2 rubber top roller chain snap-on style is manufactured to ISO Metric British Standards and uses precision heat-treated components for optimal performance and overall durability. Besides the chain, we also supply a plethora of premium metric roller chain sprockets, roller chain guide, v-belt pulleys, v-belts, and much more!
12B-2 Rubber Top Roller Chain Snap-On Style Dimensions
- Chain Size: 12B-2 CLIP
- Dimension (P): 19.05mm
- Dimension (b1): 11.68mm
- Dimension (d1): 5.72mm
- Dimension (d3): 12.06mm
- Dimension (e): 19.46mm
- Dimension (h): 16.1mm
- Dimension (l1): 39.5mm
- Dimension (l2): 37.0mm
- Dimension (H1): 16.0mm
- Dimension (H2): 11.0mm
- Dimension (F2): 44.5mm
- Weight: 2.90 kG/ M
- Chain Size: 12B-2 CLIP
- Dimension (P): 19.05mm
- Dimension (b1): 11.68mm
- Dimension (d1): 5.72mm
- Dimension (d3): 12.06mm
- Dimension (e): 19.46mm
- Dimension (h): 16.1mm
- Dimension (l1): 39.5mm
- Dimension (l2): 37.0mm
- Dimension (H1): 16.0mm
- Dimension (H2): 11.0mm
- Dimension (F2): 44.5mm
- Weight: 2.90 kG/ M
