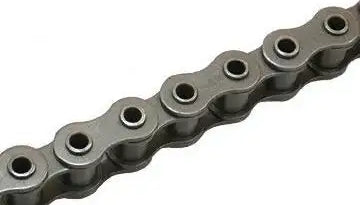

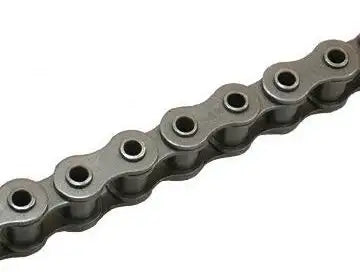

Metric 12B Hollow Pin Roller Chain - 10ft Box
$199.99
SKU: 12BHP-ROLLER-CHAIN
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |
Metric 12B Hollow Pin Roller Chain - 10ft Box Description/Features
Metric 12B Hollow Pin Roller Chain - 10ft Box Specifications
12B hollow pin roller chain is a 19.05mm pitch metric chain manufactured per ISO and British Standards. The unique design of the hollow pin allows for articles to be affixed to the chain through the hollow pin. 12BHP chain is commonly used in bakeries, packaging, conveyors, elevators, and more. Conforming to ISO standards means that this chain directly interchanges with other brands while also having the ability to operate on standard 12B sprockets; it is essential to note that the inside diameter of our 12B hollow pin is 5.85mm. What sets our 12B hollow pin roller chain apart from others is the use of high-precision components made from superior grades of alloy and carbon steel that have been heat treated and shot peened, with the addition of a factor pre-load done to the chain. The combination of all creates an 12B hollow pin chain that is more capable and has an extended lifespan compared to others. For additional information or a quote on our premium 12B hollow pin chain, contact our customer service team; we will be happy to assist you!
12B Hollow Pin Chain Dimensions
- Part #: 12BHP
- Pitch (P): 19.05mm
- Inside Width (R): 11.68mm
- Roller Diameter (D): 12.07mm
- Overall Width (W): 22.70mm
- Plate Height (H): 15.82mm
- Hollow Pin I.D. (U): 5.85mm
- Hollow Pin O.D. (L): 8.09mm
- Minimum Breaking Load: 1,700 KGS
- Weight: 1.1 kG/ m
- Part #: 12BHP
- Pitch (P): 19.05mm
- Inside Width (R): 11.68mm
- Roller Diameter (D): 12.07mm
- Overall Width (W): 22.70mm
- Plate Height (H): 15.82mm
- Hollow Pin I.D. (U): 5.85mm
- Hollow Pin O.D. (L): 8.09mm
- Minimum Breaking Load: 1,700 KGS
- Weight: 1.1 kG/ m
