Premium Heavy-Duty 12BH Roller Chain - 10ft Box
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |

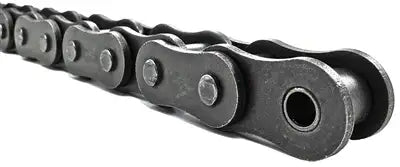

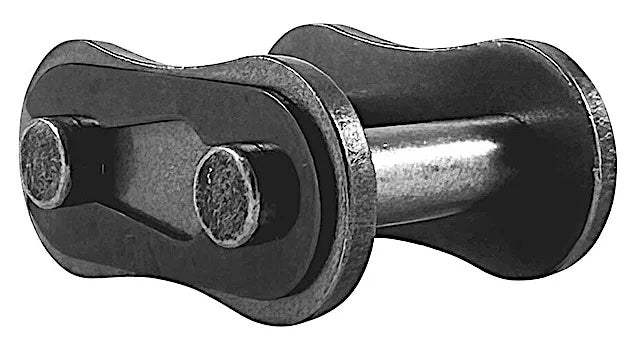

Our 12BH heavy roller chain is a heavy-duty metric chain conforming to ISO and British standards dimensionally. This chain utilizes thicker sidebars to withstand shock loads and reduces elongation in demanding applications. 12B heavy chain is utilized in agriculture equipment, drives, conveying systems, plant machinery, and more applications! Our 12B heavy chain utilizes components that have been heat-treated and shot-peened for fatigue resistance and increased strength while also featuring solid round parts and wide-waste link plates for maximum chain life and performance. This chain is also factory pre-loaded, significantly reducing or eliminating initial and long-term elongation. 12BH chain is supplied in boxes containing a 10ft chain with one connecting link; alternative lengths are available upon request. It is important to note that a 12B heavy roller chain can be used on the same sprockets as a standard 12 chain; just ensure that clearance is available to accommodate the additional thickness of a heavy-duty chain if you are upgrading from standard. For more information or a quote on our premium 12BH roller chain, contact our customer support team; we will be happy to assist you!
12BH Heavy Chain Dimensions
- Part #: 12BH
- Pitch (P): 19.05mm
- Roller Width (R): 11.68mm
- Roller Diameter (D): 12.07mm
- Overall Width (W): 25.00mm
- Connecting Link Overall Width (X): 26.30mm
- Plate Height (H): 16.80mm
- Plate Thickness (T): 2.60mm
- Pin Diameter (L): 6.10mm
- Minimum Breaking Load: 4,079 KGS
- Weight: 1.45 kG/ m
- Part #: 12BH
- Pitch (P): 19.05mm
- Roller Width (R): 11.68mm
- Roller Diameter (D): 12.07mm
- Overall Width (W): 25.00mm
- Connecting Link Overall Width (X): 26.30mm
- Plate Height (H): 16.80mm
- Plate Thickness (T): 2.60mm
- Pin Diameter (L): 6.10mm
- Minimum Breaking Load: 4,079 KGS
- Weight: 1.45 kG/ m
