Metric SA1 Attachments

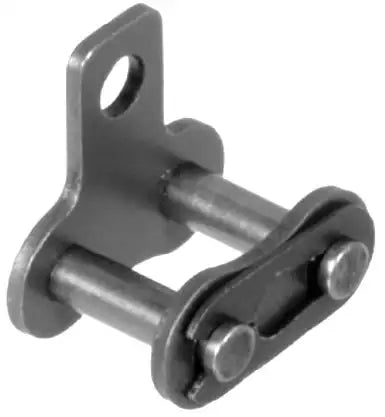

Metric 12B SA1 Attachment Connecting Link
Note:
Custom Cut to Length Chain Also Available
$4.49
SKU: 12B-SA1-ATTACHMENT-10700331
Item is in stock
Only 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Metric 12B SA1 Attachment Connecting Link Features
Metric 12B SA1 Attachment Connecting Link Specifications
Our superior 12B SA1 attachment connecting link is designed explicitly for metric 19.05mm pitch 12B chain and conforms to ISO and DIN dimensional standards for direct interchangeability. Each precision component of this 12B SA1 attachment is made from top-quality carbon steel that has been heat-treated for extended working life and durability. We supply this attachment as a standard connecting link (master link) or assembled onto the 12B roller chain in specific increments. Design-wise, the 12B SA1 attachment has a straight tab on one side with one hole for mounting. For additional information or to get a quote on our 12B SA1 attachments, contact our customer service team, and we will gladly assist you.
12B SA1 Attachment Dimensions
- Part #: 12B SA1
- Configuration: Straight One Hole on One Side
- Pitch (P): 19.05mm
- Inner Width (B1): 11.68mm
- Roller Link Width (B2): 15.62mm
- Roller Diameter (D1): 12.07mm
- Plate Height (G): 16.1mm
- Attachment Width (M): 16.0mm
- Attachment Hole I.D. (DL): 6.6mm
- Dimension (F): 21.45mm
- Dimension (H): 28.6mm
- Plate Thickness (S): 1.85mm
- Part #: 12B SA1
- Configuration: Straight One Hole on One Side
- Pitch (P): 19.05mm
- Inner Width (B1): 11.68mm
- Roller Link Width (B2): 15.62mm
- Roller Diameter (D1): 12.07mm
- Plate Height (G): 16.1mm
- Attachment Width (M): 16.0mm
- Attachment Hole I.D. (DL): 6.6mm
- Dimension (F): 21.45mm
- Dimension (H): 28.6mm
- Plate Thickness (S): 1.85mm
