1244 Chain

1244 Chain

Note: Custom Cut to Length Chain Also Available
Product Code: 1244-CHAIN
Shipping calculated at checkout.
Other Customers Viewed
1244 Roller Conveyor Chain Connecting Link (Master Link)
1244 Roller Conveyor Chain Connecting Link (Master Link)
Login
View full details
Description
Specification

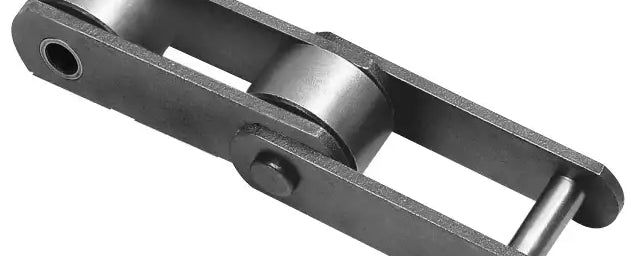

1244 Chain is a roller conveyor chain that is manufactured to specific specifications and standards throughout the industry. This 1244 Chain features premium solid components that have been engineered and manufactured to have high strength, a long working life, and great performance. Each component has either been heat-treated or hardened to increase the strength and working life of the chain. USA Roller Chain and Sprockets is a one-stop one-shop facility meaning you can get everything you need from one place. We also offer a full line of high quality 1244 sprockets with very short lead-times. For more information or to get a quote on 1244 roller conveyor chain please contact us and one of our highly-trained customer service staff will be happy to assist you!

Dimensions:

  • Chain #: 1244
  • Pitch: 12.000"
  • Pin End To CL (B): 3.06"
  • Pin Head To CL (C): 2.66"
  • Inside Width (E): 2.63"
  • Roller Diameter (D): 5.00"
  • Roller Width (L): 2.56"
  • Roller Style: U1
  • Roller Material: Alloy Iron Heat-Treated
  • Face Width: 1.75"
  • Pin Diameter (G): 1.00"
  • Pin Material: Carbon Heat-Treated
  • Sidebar Height (H): 2.50"
  • Sidebar Thickness (T): 0.50"
  • Sidebar Material: High Carbon
  • Bushing Material: Carbon Case-Hardened
  • Bearing Area: 3.63"
  • Ultimate Strength: 75,000 LBS
  • Maximum Working Load: 12,700 LBS
  • Weight Per Foot: 21.5 LBS

Roller Style:

Phone: (407) 347-3519
Email: sales@usarollerchain.com

Feature

  • High Quality Roller Chain
  • Extremely Durable
  • Heat-Treated or Hardened Component
  • Solid Components
Featured image
  • Chain #: 1244
  • Pitch: 12.000"
  • Pin End To CL (B): 3.06"
  • Pin Head To CL (C): 2.66"
  • Inside Width (E): 2.63"
  • Roller Diameter (D): 5.00"
  • Roller Width (L): 2.56"
  • Roller Style: U1
  • Roller Material: Alloy Iron Heat-Treated
  • Face Width: 1.75"
  • Pin Diameter (G): 1.00"
  • Pin Material: Carbon Heat-Treated
  • Sidebar Height (H): 2.50"
  • Sidebar Thickness (T): 0.50"
  • Sidebar Material: High Carbon
  • Bushing Material: Carbon Case-Hardened
  • Bearing Area: 3.63"
  • Ultimate Strength: 75,000 LBS
  • Maximum Working Load: 12,700 LBS
  • Weight Per Foot: 21.5 LBS
