120R35 Sprocket (Taper Bushed)

120R35 Sprocket (Taper Bushed)

Note: Custom Cut to Length Chain Also Available
$589.99
$589.99
In Stock
On Sale Sold out
Product Code: 120R35-SPROCKET
In Stock
Shipping calculated at checkout.

Login to Request a Quote

Other Customers Viewed
#120 Roller Chain 10ft Box | ANSI 120 chain
#120 Roller Chain 10ft Box | ANSI 120 chain
$249.99
Login
General Duty Plus #120 Roller Chain - 10ft Box
General Duty Plus #120 Roller Chain - 10ft Box
$329.99
Login
Premium #120 Roller Chain - 10ft Box | Premier Series Chain
Premium #120 Roller Chain - 10ft Box | Premier Series Chain
$599.99
Login
View full details
Description
Specification

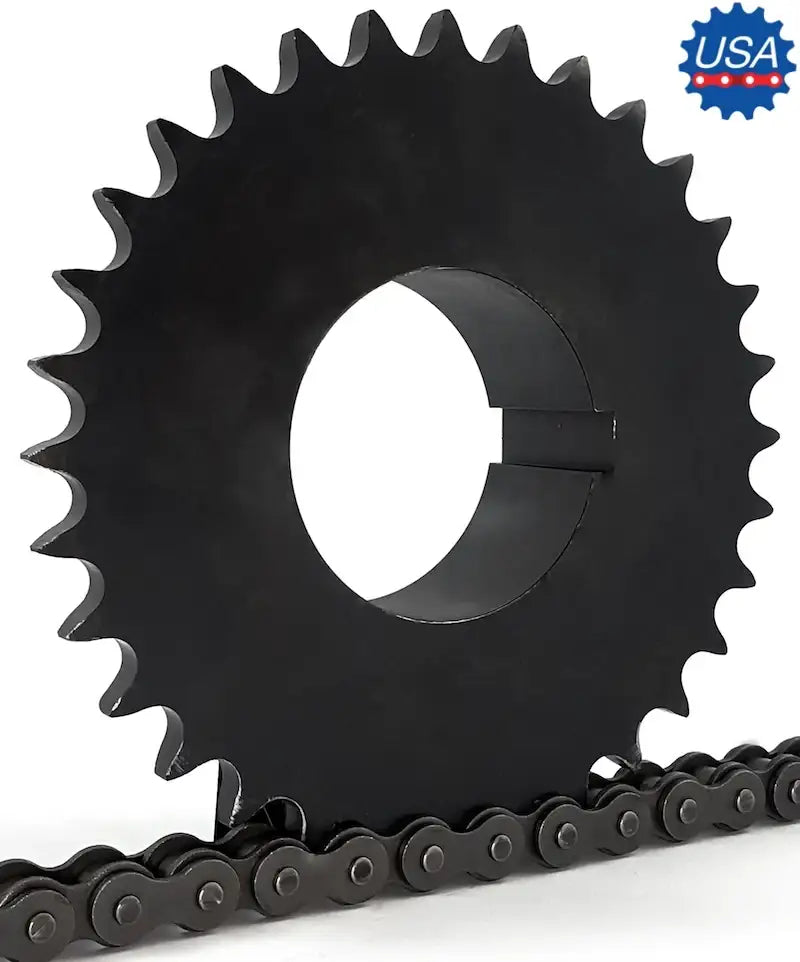

This 120R35 sprocket is a durable, high quality, and precision 35 tooth sprocket that is manufactured to accept a R2 bushing. Something that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #120 roller chain and sprocket, thus preventing premature wear or breakage and this means that it will directly interchange with most other manufactures sprockets. This sprocket is also black oxide coated which increases resistance to the environment and prevents early rust build up. 120R35 sprockets are made to accept a R2 size taper bushing which we also stock with a wide range of bore sizes. We also offer sprockets with finished bore configurations, and if you are needing a custom bore sprocket we can do those as well within a fast production time and at really great prices. For more information or large inquiry request please contact us and we will be happy to assist you.

120R35 Sprocket Dimensions
  • Sprocket Size: 120R35
  • Tooth Count: 35
  • Bushing Size: R2
  • Outside Diameter: 17.570"
  • Pitch Diameter: 16.734"
  • Sprocket Type: 6
  • Maximum Bore: 3-5/8"
  • Dimension (OL): 5-5/32"
  • Dimension (L): 4-7/8"
  • Dimension (C): 2"
  • Dimension (H): 5-3/8"
  • Dimension (P): 1-15/16"
  • Dimension (T): 0.924"
  • Bushing Weight: 11 LBS
  • Sprocket Weight: 68.0 LBS

Phone: (407) 347-3519
Email: sales@usarollerchain.com

Click Here To See Our Other Products!

Feature

  • Premium Quality Sprocket
  • Fully Meets All ANSI Standards
  • High Performance
  • Extremely Durable
  • Fully Black Oxide Coated
Featured image
  • Sprocket Size: 120R35
  • Tooth Count: 35
  • Bushing Size: R2
  • Outside Diameter: 17.570"
  • Pitch Diameter: 16.734"
  • Sprocket Type: 6
  • Maximum Bore: 3-5/8"
  • Dimension (OL): 5-5/32"
  • Dimension (L): 4-7/8"
  • Dimension (C): 2"
  • Dimension (H): 5-3/8"
  • Dimension (P): 1-15/16"
  • Dimension (T): 0.924"
  • Bushing Weight: 11 LBS
  • Sprocket Weight: 68.0 LBS
