120Q11 Sprocket (Taper Bushed)
120Q11 Sprocket (Taper Bushed)
Note:
Custom Cut to Length Chain Also Available
Product Code: 120Q11-SPROCKET
Shipping calculated at checkout.
Couldn't load pickup availability
Other Customers Viewed

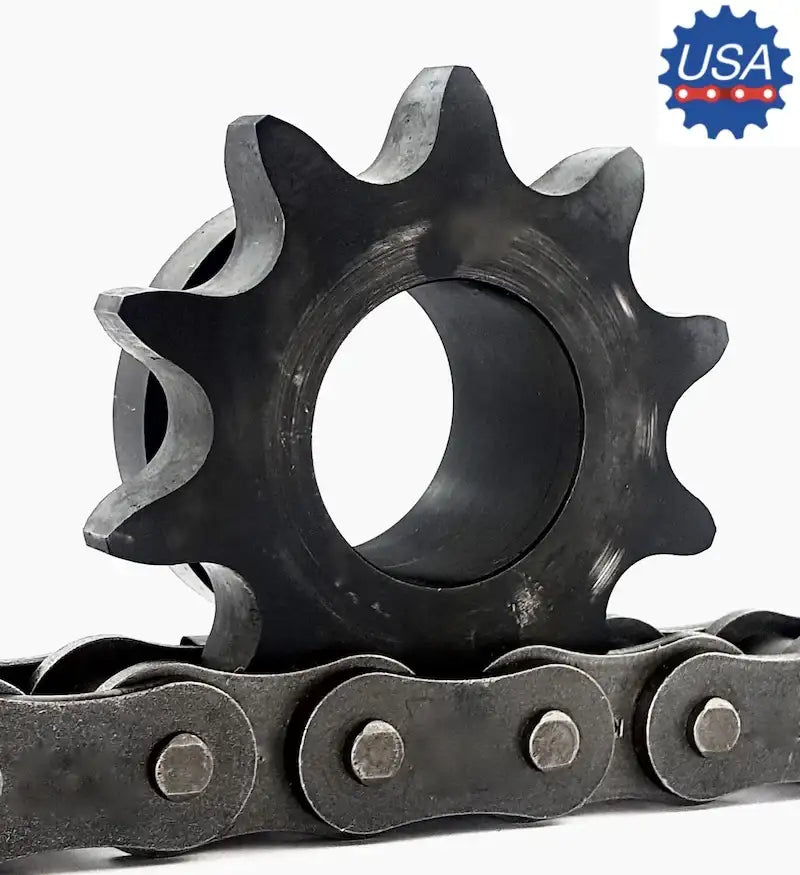

This 120Q11 sprocket is a durable, high quality, and precision sprocket with 11 hardened teeth that is manufactured to accept a Q1 bushing. Sprockets that have hardened teeth last longer and are much more durable than those that don't. Something else that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #120 roller chain and sprocket which prevents premature wear or breakage. This sprocket is also black oxide coated which increases resistance to the environment and will prevent early rust build up. 120Q11 sprockets are bored to accept a Q1 type taper bushing, which we also stock with a wide range of bore sizes. We also offer sprockets with finished bore configurations, and if you are needing a custom bore sprocket we the capabilities on providing those to within a fast lead time and at really great prices. For more information or large inquiry request please contact us and we will be happy to assist you.
Phone: (407) 347-3519
Email: sales@usarollerchain.com
Click Here To See Our Other Products!
120Q11 Sprocket Dimensions
- Sprocket Size: 120Q11
- Tooth Count: 11
- Bushing Size: Q1
- Outside Diameter: 6.010"
- Pitch Diameter: 5.324"
- Sprocket Type: 4
- Maximum Bore: 2-11/16"
- Dimension (OL): 2-25/32"
- Dimension (L): 2-1/2"
- Dimension (H): 4-1/8"
- Dimension (P): 1-9/16"
- Dimension (T): 0.924"
- Bushing Weight: 3.5 LBS
- Sprocket Weight: 4.8 LBS
Email:
Click Here To See Our Other Products!
Feature
- Premium Quality Sprocket
- Fully Meets All ANSI Standards
- High Performance
- Extremely Durable
- Fully Black Oxide Coated
- Sprocket Size: 120Q11
- Tooth Count: 11
- Bushing Size: Q1
- Outside Diameter: 6.010"
- Pitch Diameter: 5.324"
- Sprocket Type: 4
- Maximum Bore: 2-11/16"
- Dimension (OL): 2-25/32"
- Dimension (L): 2-1/2"
- Dimension (H): 4-1/8"
- Dimension (P): 1-9/16"
- Dimension (T): 0.924"
- Bushing Weight: 3.5 LBS
- Sprocket Weight: 4.8 LBS
