#120 TK Low Temperature Roller Chain

Roller Chain > Roller Chain by Size > #120 Roller Chain

#120 TK Low Temperature Roller Chain

Note: Custom Cut to Length Chain Also Available
SKU: 120-TK-LOW-TEMPERATURE-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51714126381423" , "metafield_value":""}]
#120 TK Low Temperature Roller Chain Features
#120 TK Low Temperature Roller Chain Specifications

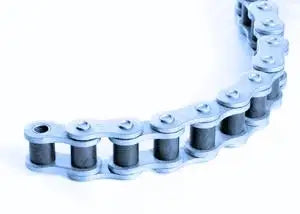

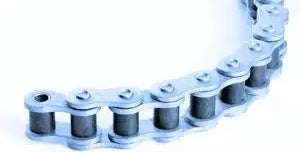

#120 TK Low Temperature Roller Chain is manufactured specifically for operating in places that is too cold for standard roller chains. This is achieved by applying a special low-temperature oil at the factory into all of the moving components of the chain giving it the ability to operate in applications as low as -40 degrees Fahrenheit. Something special about this chain is that it features solid bushings, solid rollers, and fully heat-treated precision components to create an ultra durable high-performance low temperature roller chain. Additionally, this chain fully meets all ANSI standards so it will run on standard #120 roller chain sprockets. To get a quote or for more information on low temperature roller chain please contact us and we will be happy to assist you!

Dimensions:
#120 TK Low Temperature Roller Chain
  • Chain #: 120 TK
  • Pitch (P): 1.500"
  • Roller Link Width (W): 1.000"
  • Roller Diameter (D): 0.875"
  • Pin Diameter (O): 0.437"
  • Pin Length (E): 1.957"
  • Plate Thickness (T): 0.189"
  • Plate Height (H): 1.413"
  • 176F - 14F Working Load Rating: 6,820 LBS
  • 12F - -22F Working Load Rating: 4,774 LBS
  • -24F - -40F Working Load Rating: 3,938 LBS
  • Weight Per Foot: 3.681 LBS
