#120 SK-1 Attachment

Roller Chain > Standard Roller Chains > Roller Chain Attachments > #120 Roller Chain Attachments

#120 SK-1 Attachment - Chain Attachment

Note: Custom Cut to Length Chain Also Available
SKU: 120-SK-1-ATTACHMENT
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51714126119279" , "metafield_value":""}]
#120 SK-1 Attachment - Chain Attachment Features
#120 SK-1 Attachment - Chain Attachment Specifications

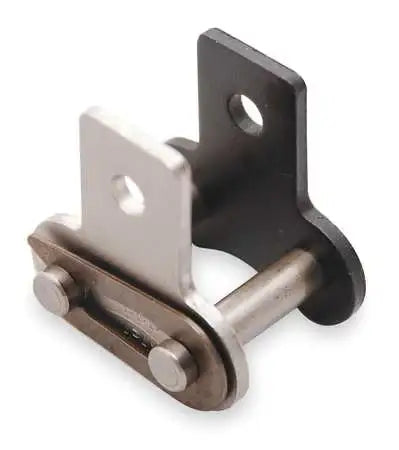

#120 SK-1 attachment is a two side, one hole straight attachment that fully meets ANSI specifications. We have a full line of premium attachments as well as #120 roller chain in stock. This attachment is manufactured using heat-treated components to increase strength, durability, and performance. Besides attachments and chain, we also have #120 sprockets, motors, reducers, bearings, sensors, and more! To get a quote on #120 SK-1 attachments please contact us and we will be happy to assist you.

Dimensions:
#120 SK-1 Attachment
  • Attachment size: #120 SK-1
  • Pitch (P): 1.500"
  • Width Between Roller Links (W): 1.000"
  • Roller Diameter (R): 0.875"
  • Pin Diameter (D): 0.437"
  • Overall Chain Width: 1.960"
  • Overall Connecting Link Width: 2.118"
  • Link Plate Height (H): 1.425"
  • Link Plate Thickness (T): 0.187"
  • Attachment Dimension (C1): 1.437"
  • Attachment Dimension (N): 1.126"
  • Attachment Dimension (O): 0.386"
  • Attachment Dimension (XS): 2.081"
  • Additional Weight Per Attachment: 0.194 LBS
