120 Quad Capacity Roller Chain | 120-QC Chain

120 quad-capacity roller chain is designed with four times the respective amount of link plates as a standard chain. This unique design combines the benefits of leaf chain and roller chain into one unique chain capable of achieving tensile strengths higher than other chain types on the market. Our 120QC quad capacity chain is also manufactured using precision heat-treated and shot-peened components machined from top grades of alloy and carbon steels. We also supply our 120 quad-capacity roller chains with solid bushings and solid rollers, drastically improving the performance and longevity of the chain. Due to the unique design, the 120QC roller chain requires a special sprocket design, any sprockets used for this chain must have hardened teeth! We also supply sprockets for 120 quad-capacity roller chains. For additional information or to get a quote on our premium 120 quad-capacity roller chains, contact our customer support team, and we will be happy to assist you!

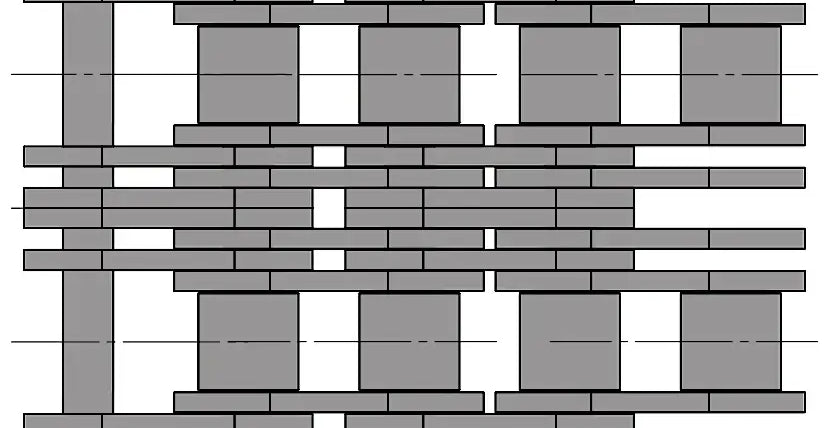

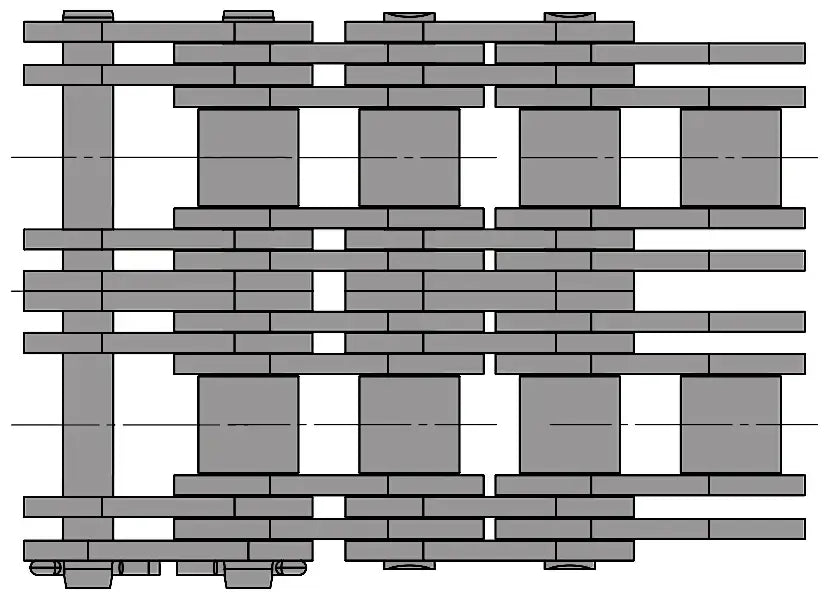

120 Quad-Capacity Chain Dimensions

• Chain Size: 120QC
• Pitch (P): 1.500"
• Inside Width (W): 0.875"
• Roller Diameter (R): 1.000"
• Pin Diameter (D): 0.437"
• Plate Height (H): 1.382"
• Plate Thickness (To): 0.188"
• Plate Thickness (Ti): 0.188"
• Transverse Pitch (QC): 2.528"
• Average Ultimate Strength: 154,220 LBS
