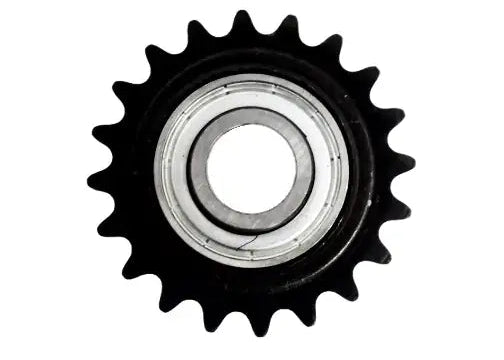

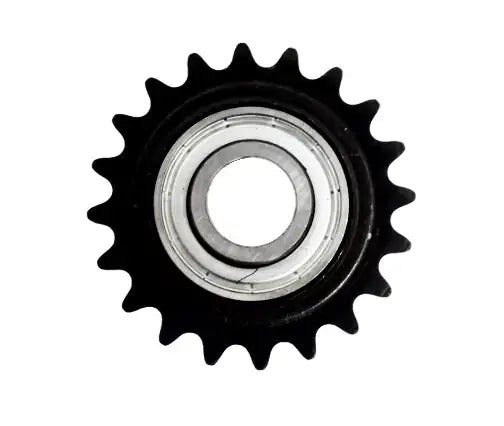

10BB17 Idler Sprocket With 16mm Bore
Note:
- Custom bore sizes are available. Contact us if you need a specific bore size or machining requirement.
- Images are for reference only. Actual product appearance may vary based on size, bore, keyway, hub style, or manufacturer.
SKU: 10BB17-IDLER-SPROCKET
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
10BB17 Idler Sprocket With 16mm Bore Description/Features
10BB17 Idler Sprocket With 16mm Bore Specifications
10BB17 Idler Sprocket With 16mm Bore is manufactured for 10B roller chain and utilizes a premium-grade ball bearing as the idler component. Idler sprockets are utilized in most conveying systems and tensioning systems. We also offer other configurations of this 10BB17 idler sprocket such as different bore sizes, and tooth counts. For more information or to get a quote please contact us and we will be happy to assist you.
10BB17 Idler Sprocket Dimensions
- Sprocket Size: 10BB17
- Tooth Count: 17
- Chain Size: 10B-1
- Pitch: 15.875mm
- Dimension (OD): 86.4mm
- Dimension (N): 93.0mm
- Dimension (T): 9.1mm
- Dimension (ID): 16mm
- Dimension (BD): 40mm
- Dimension (H): 18.3mm
- Dimension (L): 12mm
- Sprocket Weight: 0.30 kG
- Sprocket Size: 10BB17
- Tooth Count: 17
- Chain Size: 10B-1
- Pitch: 15.875mm
- Dimension (OD): 86.4mm
- Dimension (N): 93.0mm
- Dimension (T): 9.1mm
- Dimension (ID): 16mm
- Dimension (BD): 40mm
- Dimension (H): 18.3mm
- Dimension (L): 12mm
- Sprocket Weight: 0.30 kG
