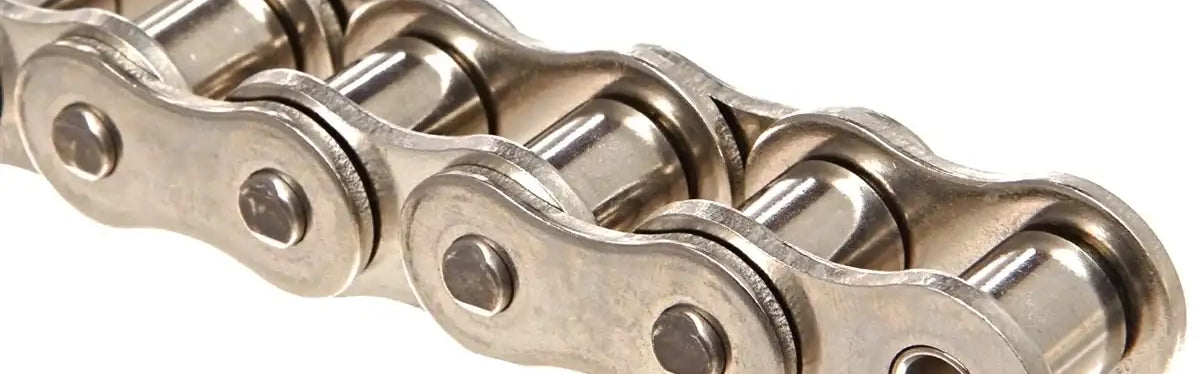

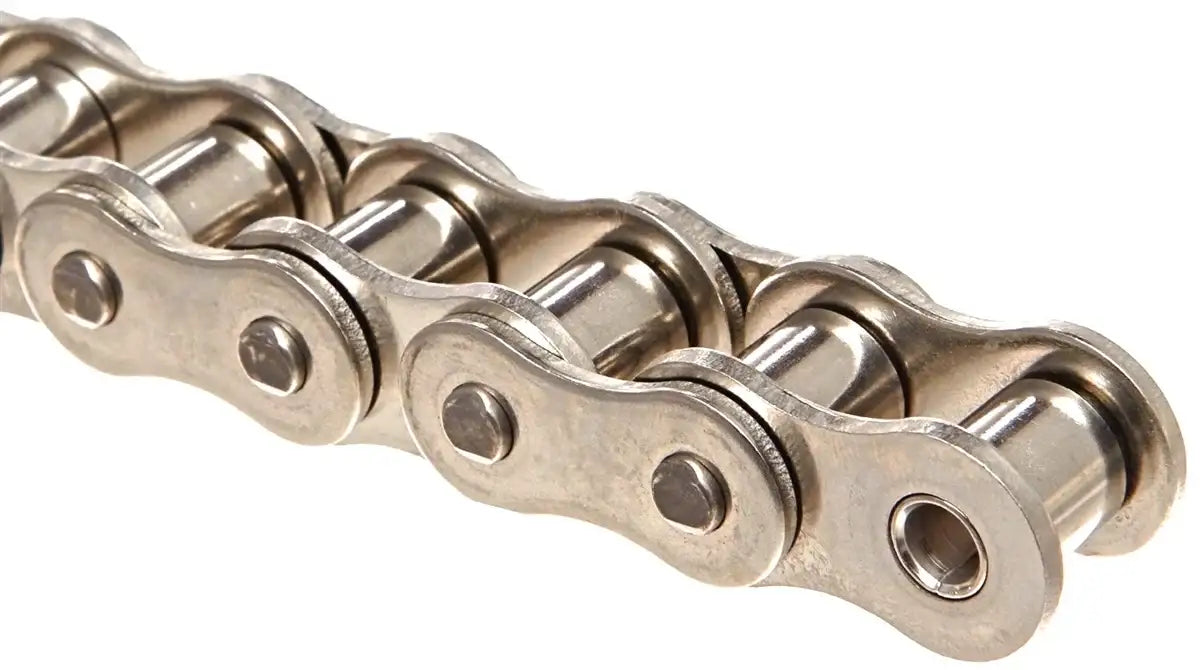

10B Nickel Plated Roller Chain

10B Nickel Plated Roller Chain

Note: Custom Cut to Length Chain Also Available
Product Code: 10B-NICKEL-ROLLER-CHAN
Shipping calculated at checkout.
Other Customers Viewed
Made In USA 10B Chain Breaker | 10B Roller Chain Breaker
Made In USA 10B Chain Breaker | 10B Roller Chain Breaker
$99.99
Login
Premium 10B Roller Chain Puller - CP1
Premium 10B Roller Chain Puller - CP1
$154.99
Login

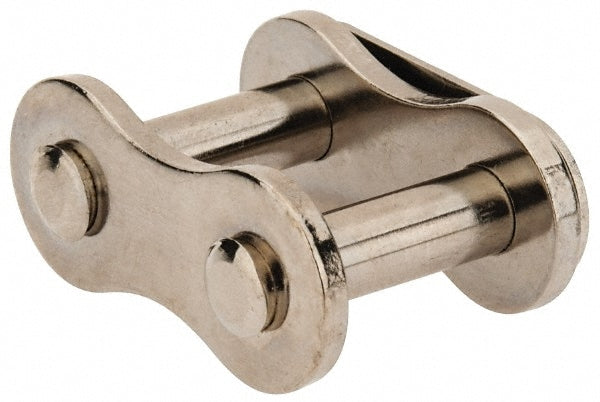

10B Nickel Plated Single Strand Connecting Link / Master Link
10B Nickel Plated Single Strand Connecting Link / Master Link
Login

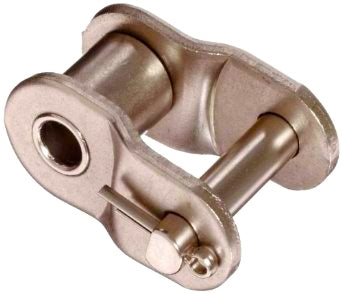

10B Nickel Plated Offset Link
10B Nickel Plated Offset Link
Login
View full details
Description
Specification
10B nickel plated roller chain offers high strength, durability, great performance, and conforms to all ISO standards. The nickel plating on this chain has been done to each component before being assembled and then inspected to ensure a full coverage and a smooth surface to for the longest working life possible and to prevent chemical attack along with stress cracking. Nickel plated roller chain is very useful in humid and slightly corrosive applications where a normal roller chain won't hold up. 10B nickel plated roller chain will run on standard 10B sprockets and has the same dimensions as 10B roller chain. Additionally we offer a full line of 10B attachments, sprockets, and accessories!

Dimensions:

  • Part Number: 10BNP
  • Pitch (P): 0.625"
  • Transverse Pitch (K): 0.653"
  • Roller Link Width (W): 0.380"
  • Roller Diameter (R): 0.400"
  • Pin Diameter (D): 0.200"
  • Overall Width (F): 0.803"
  • Plate Thickness (T1): 0059"
  • Plate Thickness (T2): 0.059"
  • Plate Height (H): 0.579"
  • Weight: 0.577 LBS/ FT

Phone: (407) 347-3519
Email: sales@usarollerchain.com

Feature

  • High Quality Roller Chain
  • Fully Meets All ISO Standards
  • High Quality Nickel Plating
  • Resistant To Corrosion
Featured image
  • Part Number: 10BNP
  • Pitch (P): 0.625"
  • Transverse Pitch (K): 0.653"
  • Roller Link Width (W): 0.380"
  • Roller Diameter (R): 0.400"
  • Pin Diameter (D): 0.200"
  • Overall Width (F): 0.803"
  • Plate Thickness (T1): 0059"
  • Plate Thickness (T2): 0.059"
  • Plate Height (H): 0.579"
  • Weight: 0.577 LBS/ FT
