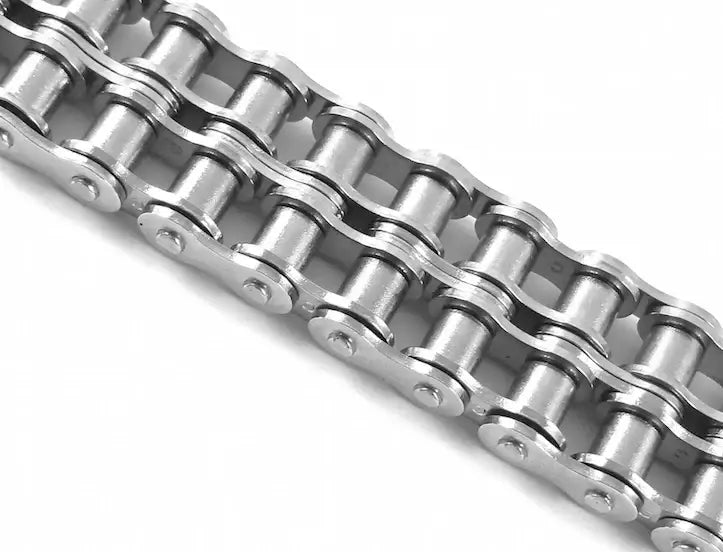

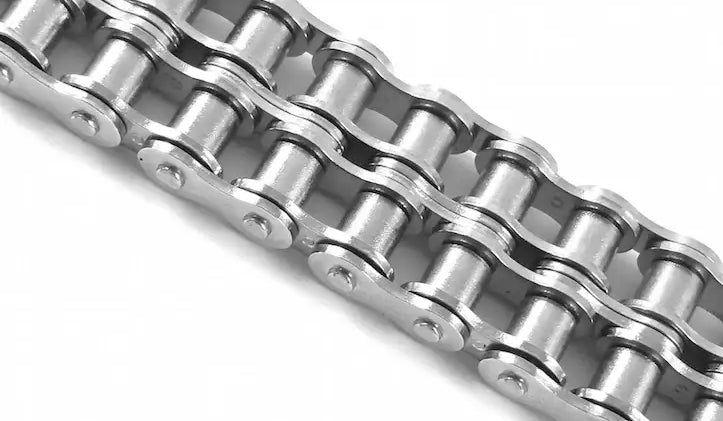

10B-2 Stainless Roller Chain - 10ft Box
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |
Premium duplex 10B-2 stainless steel roller chain is a 15.875mm pitch double-strand roller chain manufactured from top-quality 304-grade stainless steel. Our superior 10B-2 stainless roller chain features high-precision components and is manufactured using industry-leading techniques for optimal performance and wear life. Additionally, the 10B-2SS chain conforms to ISO and British Standards (BS) for direct interchangeability with other brands. Each 10ft box of chain is supplied with a connecting link (master link) for joining the chain together. The 10B-2 stainless steel roller chain is commonly found in applications like food processing, packaging, scientific, and corrosive environments. We also provide 10B-2SS sprockets, chain guides, links, and tools. For additional information or to get a quote on our top-tier 10B-2 stainless steel roller chain, contact our customer support team, and we will gladly assist you!
10B-2 Stainless Roller Chain Dimensions
- Part #: 10B-2SS
- Pitch (P): 15.875mm
- Roller Width (R): 9.65mm
- Roller Diameter (D): 10.16mm
- Overall Width (W): 35.65mm
- Connecting Link Overall Width (X): 40.30mm
- Plate Height (H): 14.70mm
- Plate Thickness (T): 1.70mm
- Pin Diameter (L): 5.08mm
- Weight: 1.8 kG/ m
- Part #: 10B-2SS
- Pitch (P): 15.875mm
- Roller Width (R): 9.65mm
- Roller Diameter (D): 10.16mm
- Overall Width (W): 35.65mm
- Connecting Link Overall Width (X): 40.30mm
- Plate Height (H): 14.70mm
- Plate Thickness (T): 1.70mm
- Pin Diameter (L): 5.08mm
- Weight: 1.8 kG/ m
