10B Rubber Top Roller Chain Snap-On Style
Note:
Custom Cut to Length Chain Also Available
SKU: 10B-1-CLIP-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
10B Rubber Top Roller Chain Snap-On Style Features
10B Rubber Top Roller Chain Snap-On Style Specifications

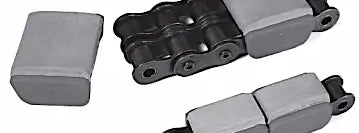

10B rubber top roller chain snap-on style utilizes polyamide snap-on attachments that fit the standard chain. The benefits of this design are that the snap-on style makes it to where you can replace and repair links instead of having to buy a whole new chain, and they help protect the chain. Our 10B rubber top roller chain snap-on style is manufactured to ISO Metric British Standards and uses precision heat-treated components for optimal performance and overall durability. Besides the chain, we also supply a plethora of premium metric roller chain sprockets, roller chain guide, v-belt pulleys, v-belts, and much more!
10B Rubber Top Roller Chain Snap-On Style Dimensions
- Chain Size: 10B-1 CLIP
- Dimension (P): 15.875mm
- Dimension (b1): 9.65mm
- Dimension (d1): 5.08mm
- Dimension (d3): 10.16mm
- Dimension (h): 14.7mm
- Dimension (l1): 15.5mm
- Dimension (l2): 30.5mm
- Dimension (H1): 15.0mm
- Dimension (H2): 10..0mm
- Dimension (F2): 21.5mm
- Weight: 1.15 kG/ M
- Chain Size: 10B-1 CLIP
- Dimension (P): 15.875mm
- Dimension (b1): 9.65mm
- Dimension (d1): 5.08mm
- Dimension (d3): 10.16mm
- Dimension (h): 14.7mm
- Dimension (l1): 15.5mm
- Dimension (l2): 30.5mm
- Dimension (H1): 15.0mm
- Dimension (H2): 10..0mm
- Dimension (F2): 21.5mm
- Weight: 1.15 kG/ M
