10A16 Sprocket

Note:

Custom bore sizes are available. Contact us if you need a specific bore size or machining requirement.
Images are for reference only. Actual product appearance may vary based on size, bore, keyway, hub style, or manufacturer.

SKU: 10A16-SPROCKET

In stockOnly 0 left in stockBackordered Out of stock Item is unavailable Contact Us For Pricing & Availability

Request a Quote

Call to order

Don’t see what you need? In a rush?

Buy it With:

Metric 10B Chain - 10ft Box $55.99
Premium 10B Roller Chain - 10ft Box $94.99

10A16 Sprocket Description/Features

10A16 Sprocket Specifications

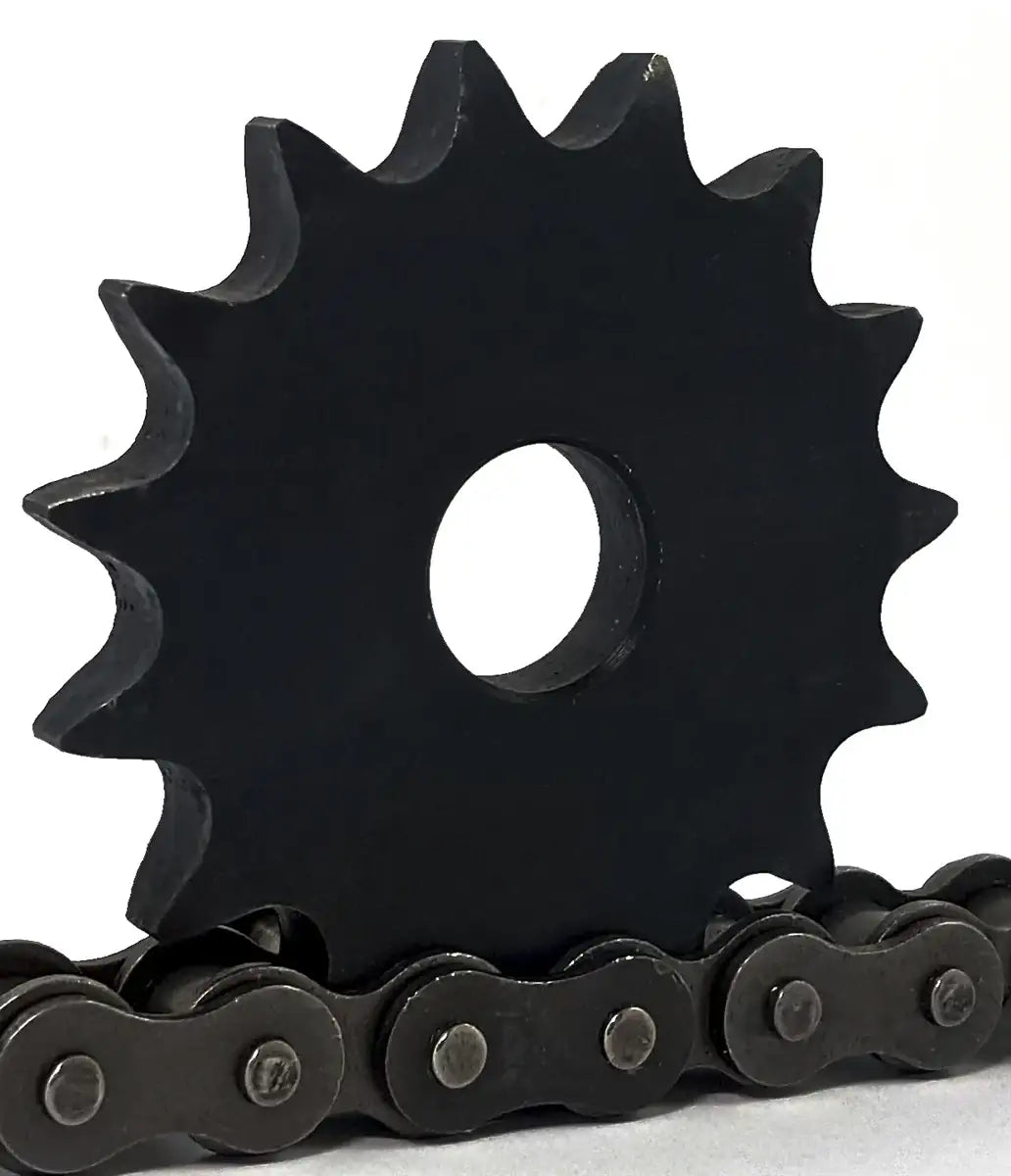

This 10A16 sprocket is a durable, high quality, and precision A-Plate sprocket with 16 teeth that is manufactured out of high-quality steel. Something else that is notable about this sprocket is that it fully meets all ISO Standards, which insures proper contact between the 10B-1 roller chain and sprocket thus preventing premature wear or breakage. This sprocket is also evenly coated with black oxide, which adds resistance to to the environment and will prevent early rust build up. 10A16 sprockets with a stock bore comes with a 12 millimeter inside diameter plain hole and can be easily machine bored to custom sizes. If you are in need of a custom bore sprocket we the capabilities on providing those to within a fast lead-time and at really great prices. For more information or to get a custom quote please contact us and we will be happy to assist you.

Dimensions:

Sprocket Size: 10A16
Tooth Count: 16
Dimension (d0): 81.4mm
Dimension (dk): 88mm
Dimension (d1): 12mm
Sprocket Weight: 0.31kg
