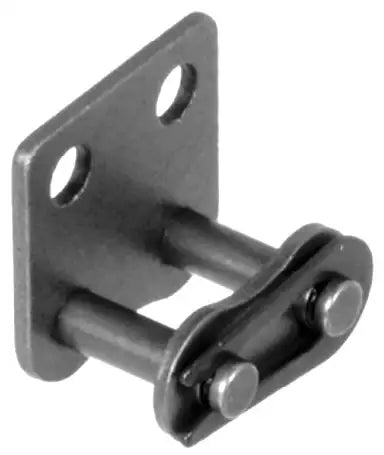

Metric 10B SA2 Attachment Connecting Link

Our superior 10B SA2 attachment connecting link is designed explicitly for metric 15.875mm pitch 10B chain and conforms to ISO and DIN dimensional standards for direct interchangeability. Each precision component of this 10B SA2 attachment is made from top-quality carbon steel that has been heat-treated for extended working life and durability. We supply this attachment as a standard connecting link (master link) or assembled onto the 10B roller chain in specific increments. Design-wise, the 10B SA2 attachment has a straight tab on one side with two holes for mounting. For additional information or to get a quote on our 10B SA2 attachments, contact our customer service team, and we will gladly assist you.

10B SA2 Attachment Dimensions

• Part #: 10B SA2
• Configuration: Straight Two Holes on One Side
• Pitch (P): 15.875mm
• Inner Width (B1): 9.65mm
• Roller Link Width (B2): 13.28mm
• Roller Diameter (D1): 10.16mm
• Plate Height (K): 14.7mm
• Attachment Width (M): 29.6mm
• Attachment Hole I.D. (DL): 5.5mm
• Dimension (G): 15.9mm
• Dimension (I): 15.9mm
• Dimension (F): 22.3mm
• Dimension (H): 10.3mm
• Dimension (IF): 16.5mm
• Dimension (HF): 22.9mm
• Plate Thickness (S): 1.7mm
