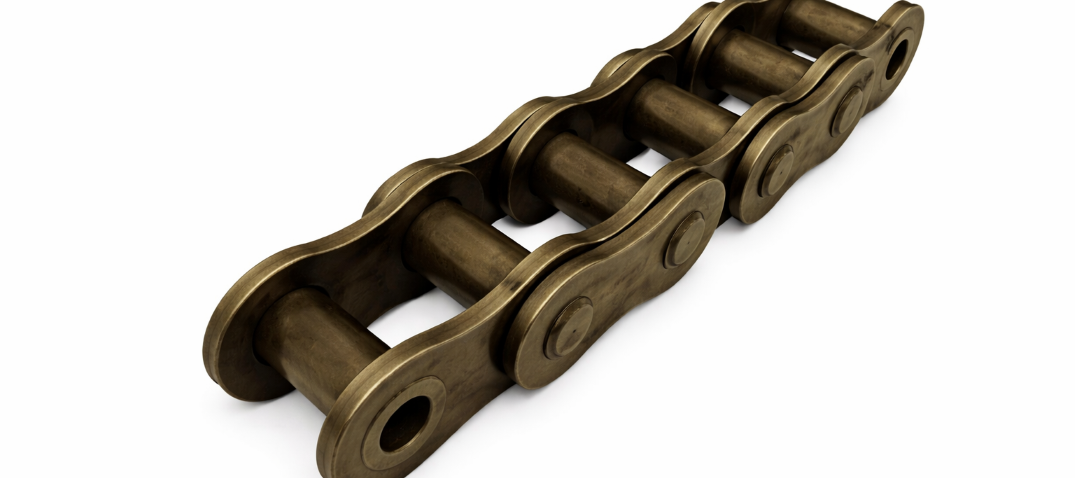

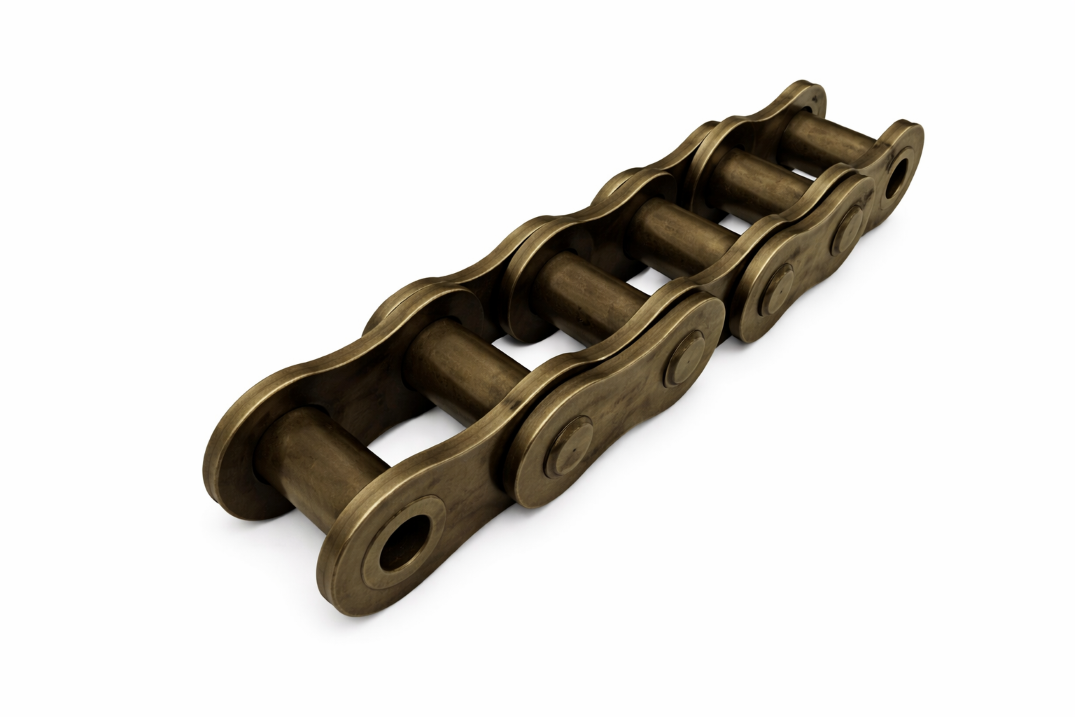

#105 Rollerless Chain 10ft Box

105 rollerless chain is a high-strength hoist chain with a 1.25" pitch and a 25,360lb tensile strength; this is the largest standard rollerless chain available. Our superior 105 rollerless chain encompasses quality, durability, and performance. This chain utilizes precision components that have been heat-treated and shot-peened to perfection. Our 105 rollerless chain is factory-preloaded, significantly reducing initial and long-term elongation. We standardly supply this chain in 10ft boxes, including one connecting link (master link) per box, or as a 50ft reel, but custom lengths are available upon request. 105 rollerless chains are typically used in lift applications and are dimensionally equivalent to ANSI 100 chains, except with no rollers. For additional information or to get a quote on our high-quality 105 rollerless hoist chain, contact our customer service team, and we will gladly assist you!

105 Rollerless Chain Dimensions

• Part #: 105RLS
• Tensile Strength: 25,360 LBS
• Pitch (P): 1.250"
• Bushing Width (W): 0.750"
• Bushing Diameter (D): 0.535"
• Plate Height (H): 1.190"
• Plate Thickness (T): 0.157"
• Pin Diameter (E): 0.375"
• Overall Width (F): 1.578"
• Weight: 2.24 LBS/ FT
