By Application > Agricultural Products > Cast Detachable Chain
103A-K1 Cast Detachable Attachment
Note:
Custom Cut to Length Chain Also Available
SKU: 103A-K1-ATTACHMENT
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Buy it With:
103A-K1 Cast Detachable Attachment Features
103A-K1 Cast Detachable Attachment Specifications
Size 103A-K1 attachments can be supplied as individual attachment links or already assembled onto the cast detachable chain. Besides the attachments and chain we can also supply detachable chain sprockets. To get a quote or for additional information please contact us and we will be happy to assist you.

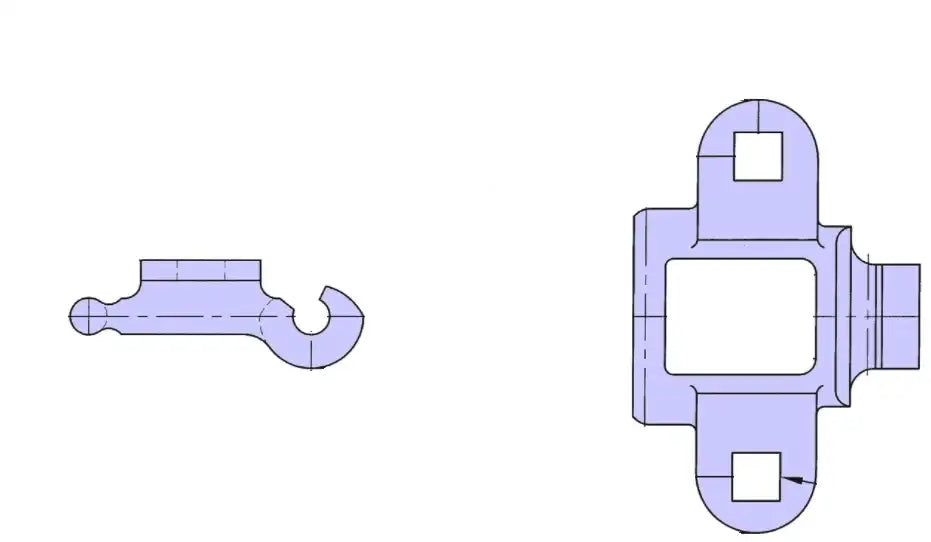

103A-K1 Attachment Dimensions
- Pitch (P): 3.075"
- Dimension (C): 0.88"
- Dimension (E): 1.50"
- Dimension (H): 0.38"
- Dimension (W): 4.19"
- Dimension (X): 5.63"
- Dimension (B): 0.61"
- Dimension (G): 1.13"
- Pitch (P): 3.075"
- Dimension (C): 0.88"
- Dimension (E): 1.50"
- Dimension (H): 0.38"
- Dimension (W): 4.19"
- Dimension (X): 5.63"
- Dimension (B): 0.61"
- Dimension (G): 1.13"
