Roller Chain > More Roller Chains > Hollow Pin Roller Chain > Specialty Hollow Pin Chains

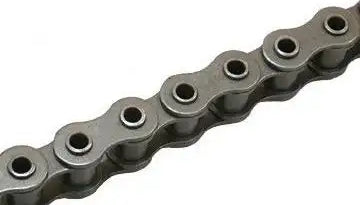

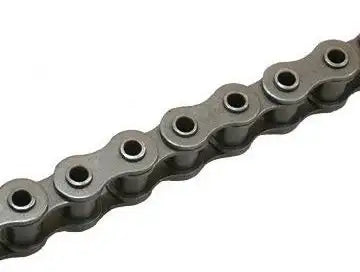

10126 Chain (Hollow Pin)
Note:
Custom Cut to Length Chain Also Available
SKU: 10126-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
10126 Chain (Hollow Pin) Features
10126 Chain (Hollow Pin) Specifications
Chain Size: 10126 Pitch (P): 12.70 mm Roller Diameter (Dr): 8.51 mm Inside Width (W): 7.75 mm Plate Height (H1): 11.81 mm Inner Plate Thickness: 1.63 mm Outer Plate Thickness: 1.40 mm Roller Diameter (Dp): 6.38 mm Hollow Pin Inside Diameter (Df): 4.5 mm Riveted Pin Width (A1): 16.30 mm Overall Connecting Link Width (B): 21.30 mm Average Ultimate Strength: 14.75 kN Average Chain Weight: 0.60 Kg/m
Email:
Chain Size: 10126 Pitch (P): 12.70 mm Roller Diameter (Dr): 8.51 mm Inside Width (W): 7.75 mm Plate Height (H1): 11.81 mm Inner Plate Thickness: 1.63 mm Outer Plate Thickness: 1.40 mm Roller Diameter (Dp): 6.38 mm Hollow Pin Inside Diameter (Df): 4.5 mm Riveted Pin Width (A1): 16.30 mm Overall Connecting Link Width (B): 21.30 mm Average Ultimate Strength: 14.75 kN Average Chain Weight: 0.60 Kg/m
