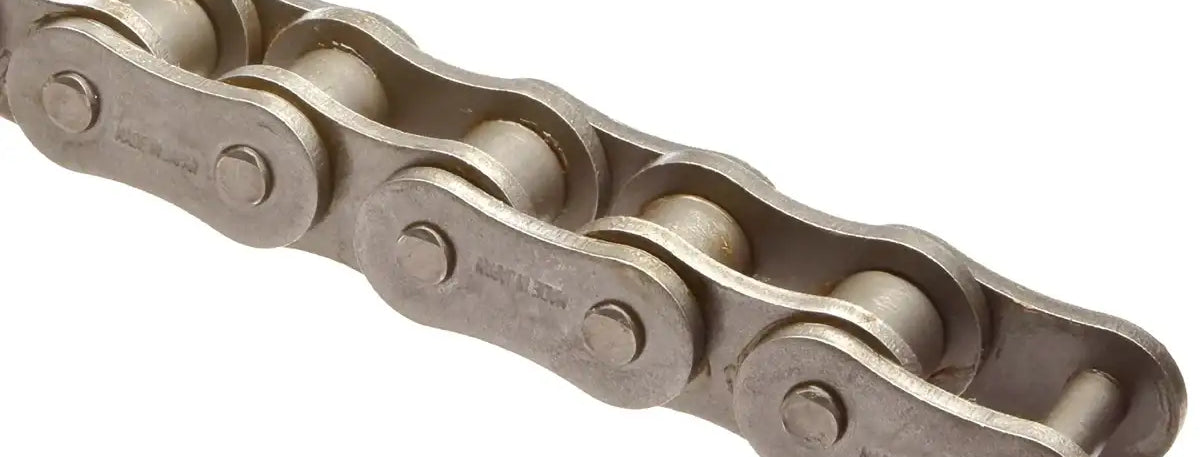

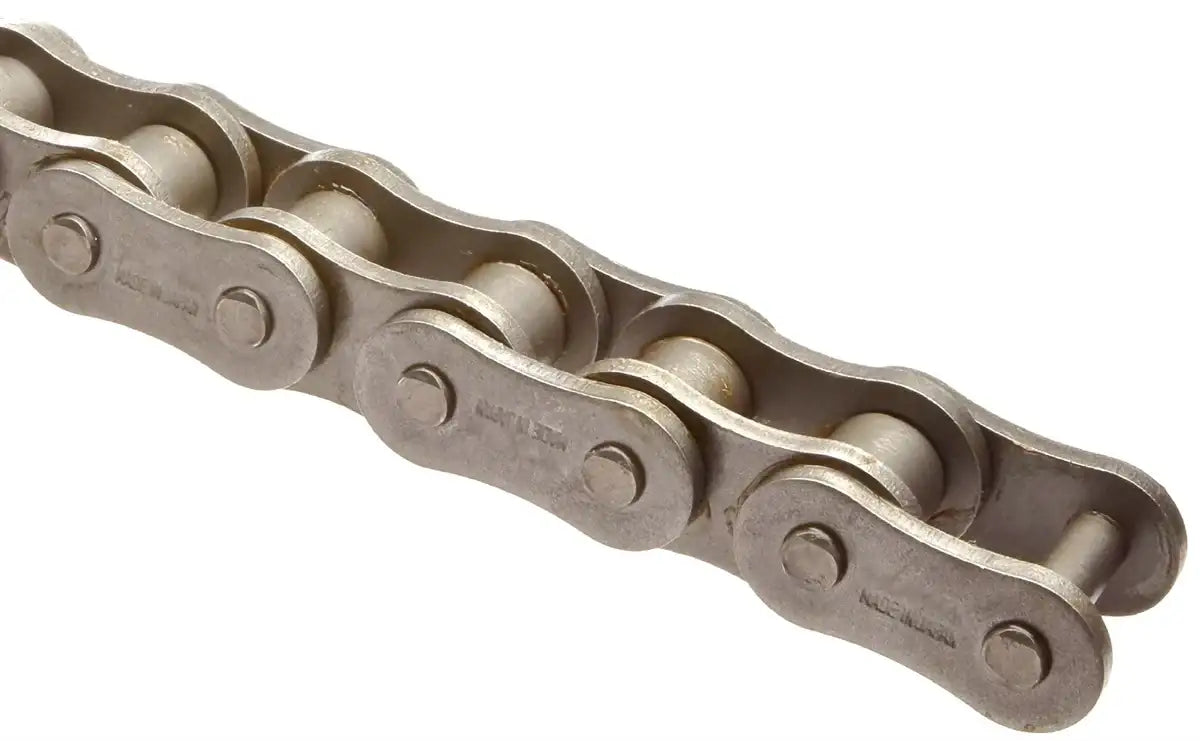

100HKSR Roller Chain 10ft ANSI Chain
Note:
Custom Cut to Length Chain Also Available
SKU: 100HKSR-ROLLER-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
100HKSR Roller Chain 10ft ANSI Chain Features
100HKSR Roller Chain 10ft ANSI Chain Specifications
#100HKSR roller chain is apart of the Super High Strength HKSR series premium heavy roller chains. This roller chain is manufactured using high-quality precision components to increase the working life, fatigue, and strength of the roller chain while still remaining within the dimensions of standard ANSI heavy roller chain. HKSR roller chains feature enlarged and thickened plates, improved machined parts accuracy and assembly, solid bushings and solid rollers. These features further increase the working life, strength, and efficiency over the HK series chains throughout the entire low to high speed application spectrum. Additionally compared to standard roller chains, HKSR series chains are higher in maximum horsepower rating by around 30% in a medium to low speed application. #100HKSR chain also has a much better performance than other chains in applications where there are high shock loads, frequent starting and stopping, and in relatively high-speed applications such as; power shovels, trenchers, trucks, cranes, mixers, conveyors, elevators, stackers, and more. If you're needing a large quantity of #100HKSR roller chain or need any additional information please contact us and we will be happy to assist you!
Dimensions:
Phone: (407) 347-3519
Email:sales@usarollerchain.com
See What All We Offer "Here"!
Dimensions:
- Chain #: 100HKSR
- Pitch (P): 1.250"
- Roller Diameter (D): 0.750"
- Width Between Plates (W): 0.750"
- Link Plate Height (H): 1.185"
- Side Plate Thickness (T): 0.189"
- Pin Diameter (E): 0.376"
- Pin Length (L): 1.717"
- Average Tensile Strength: 32,560 LBS
- Maximum Recommended Working Load: 7,700 LBS
- Weight Per Foot: 2.93 LBS
Phone: (407) 347-3519
Email:
See What All We Offer "Here"!
- Chain #: 100HKSR
- Pitch (P): 1.250"
- Roller Diameter (D): 0.750"
- Width Between Plates (W): 0.750"
- Link Plate Height (H): 1.185"
- Side Plate Thickness (T): 0.189"
- Pin Diameter (E): 0.376"
- Pin Length (L): 1.717"
- Average Tensile Strength: 32,560 LBS
- Maximum Recommended Working Load: 7,700 LBS
- Weight Per Foot: 2.93 LBS
