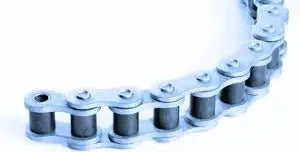

#100 TK Low Temperature Roller Chain

#100 TK Low Temperature Roller Chain

Note: Custom Cut to Length Chain Also Available
Product Code: 100-TK-LOW-TEMPERATURE-CHAIN
Shipping calculated at checkout.
Other Customers Viewed

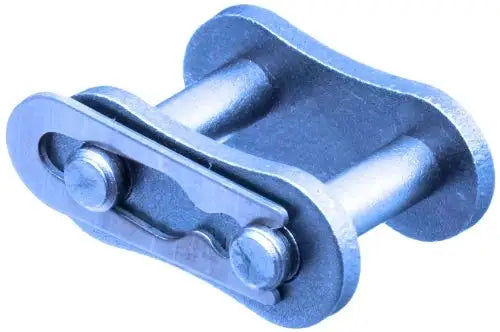

#100 TK Low Temperature Roller Chain Connecting (Master) Link
#100 TK Low Temperature Roller Chain Connecting (Master) Link
Login

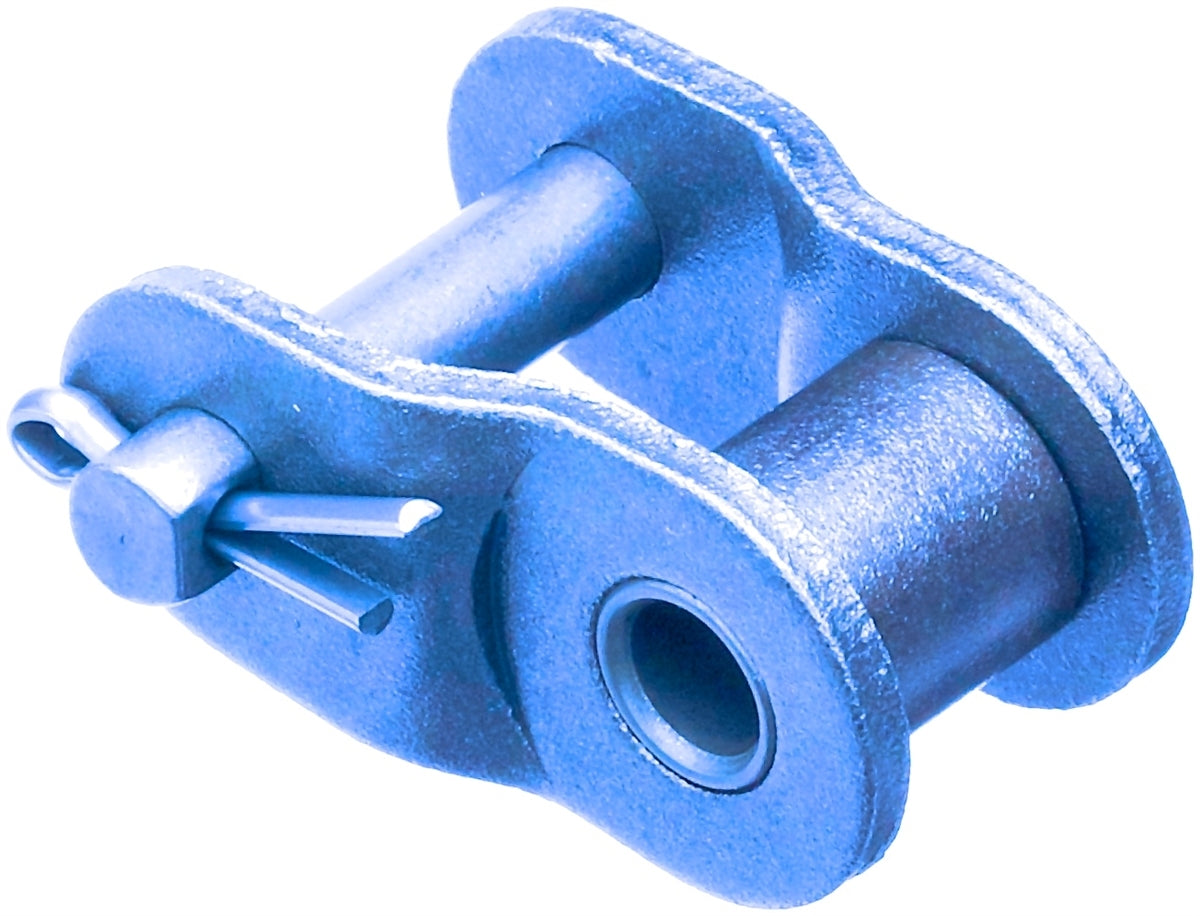

#100 TK Low Temperature Offset Link
#100 TK Low Temperature Offset Link
Login
View full details
Description
Specification
#100 TK Low Temperature Roller Chain is manufactured specifically for operating in places that is too cold for standard roller chains. This is achieved by applying a special low-temperature oil at the factory into all of the moving components of the chain giving it the ability to operate in applications as low as -40 degrees Fahrenheit. Something special about this chain is that it features solid bushings, solid rollers, and fully heat-treated precision components to create an ultra durable high-performance low temperature roller chain. Additionally, this chain fully meets all ANSI standards so it will run on standard #100 roller chain sprockets. To get a quote or for more information on low temperature roller chain please contact us and we will be happy to assist you!

Dimensions:

  • Chain #: 100 TK
  • Pitch (P): 1.250"
  • Roller Link Width (W): 0.750"
  • Roller Diameter (D): 0.750"
  • Pin Diameter (O): 0.376"
  • Pin Length (E): 1.555"
  • Plate Thickness (T): 0.157"
  • Plate Height (H): 1.177"
  • 176F - 14F Working Load Rating: 5,060 LBS
  • 12F - -22F Working Load Rating: 3,542 LBS
  • -24F - -40F Working Load Rating: 2,926 LBS
  • Weight Per Foot: 2.541 LBS

Phone: (407) 347-3519
Email: sales@usarollerchain.com

See What All We Offer "Here"!

Feature

  • High-Performance
  • Premium Roller Chain
  • Meets ANSI Standards
  • Heat-Treated Components
  • Low Temperature Chain
  • Extremely Durable
