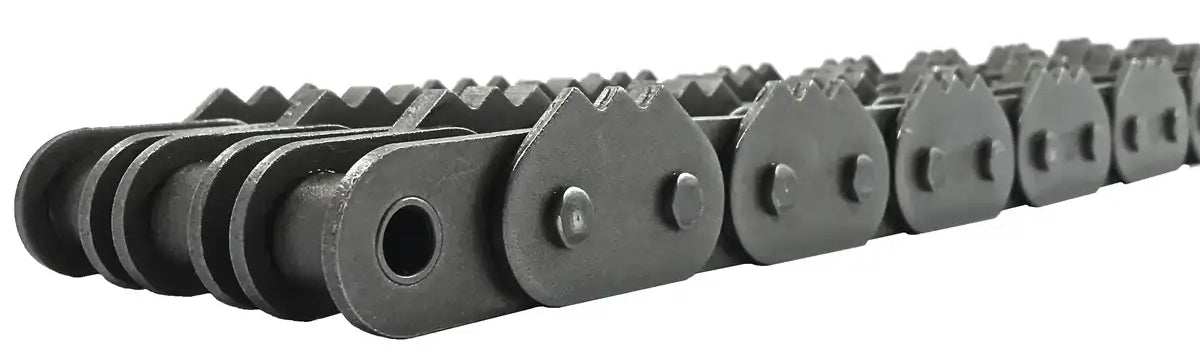

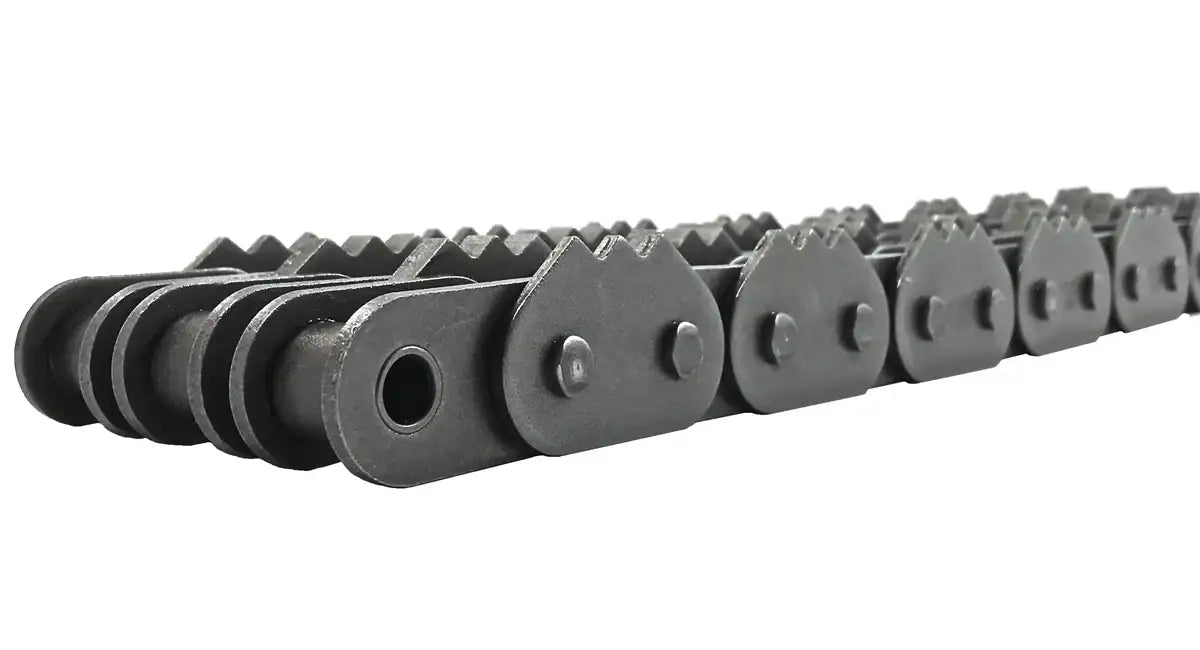

100-3 Sharp Top Roller Chain With 3-Points Every 2nd Pitch
SKU: 100-3-ST-CHAIN
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |
Buy it With:
100-3 Sharp Top Roller Chain With 3-Points Every 2nd Pitch Description/Features
100-3 Sharp Top Roller Chain With 3-Points Every 2nd Pitch Specifications
What sets our 100-3 sharp top roller chain with 3-points every 2nd pitch apart from others is our use of high-quality heat treated and shot peened components for optimal fatigue strength and working life, among a wide range of other premium features and specifications. Additionally, the teeth on this chain are high-precision for optimal grip and the least amount of penetration that could result in bruising or waste. At USA Roller Chain we pride ourselves in setting the bar not only in service but the quality level of the products we supply. To get pricing and availability on this chain, please contact us, and we'll be happy to assist you!
Chain Dimensions:
Additional Options:
Chain Dimensions:
- Chain Size: 100-3
- Style: 3-Points Every 2nd Pitch
- Pitch (P): 1.250"
- Dimension (B): 1.325"
- Dimension (C): 0.754"
- Dimension (D): 1.147"
- Dimension (E): 0.750"
- Dimension (F): 4.200"
- Dimension (G): 0.156"
- Dimension (H): 0.126"
- Dimension (I): 4.362"
- Dimension (J): 1.409"
- Dimension (K): 0.772"
- Dimension (L): 0.310"
Additional Options:
- Chrome Pins (standard in some sizes)
- Machined Smooth Bottoms to reduce damage to the chain beds
- Anti-Corrosive Coatings
- Induction Hardened Teeth
- Chain Size: 100-3
- Style: 3-Points Every 2nd Pitch
- Pitch (P): 1.250"
- Dimension (B): 1.325"
- Dimension (C): 0.754"
- Dimension (D): 1.147"
- Dimension (E): 0.750"
- Dimension (F): 4.200"
- Dimension (G): 0.156"
- Dimension (H): 0.126"
- Dimension (I): 4.362"
- Dimension (J): 1.409"
- Dimension (K): 0.772"
- Dimension (L): 0.310"
