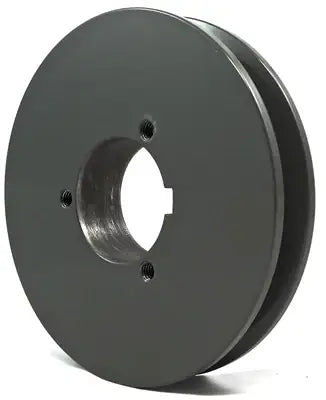

1SPA63 Metric Pulley Single-Groove 1-SPA-63 Sheave
Note:
Custom Cut to Length Chain Also Available
SKU: 1-SPA-63-PULLEY
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
1SPA63 Metric Pulley Single-Groove 1-SPA-63 Sheave Features
1SPA63 Metric Pulley Single-Groove 1-SPA-63 Sheave Specifications
Our Metric 1SPA63 Pulley is a single-groove metric v-belt sheave that is 69 millimeters (mm) in diameter and is designed for optimal performance, durability while being constructed from a high-strength DIN 1691 cast iron material for maximum working life. Additionally, this 1-SPA-63 Sheave is made for a 1008 taper-lock bushing, meaning it has a wide range of bore sizes versus a fixed bore style. Utilizing a balance quality grade of ISO 1940 our sheave is sure to perform to your expectations efficiently and with minimal vibration versus other sheaves, which decreased vibration improves the life of the bearings and other components the machine. 1SPA63 Pulleys are designed for SPA, SPAX, and XPA metric belts. We also stock a complete line of shafting, electric motors, gear reducers, roller chain, and sprockets. For more information or to get a quote on our 1-SPA-63 Sheave or other products please contact us and our customer service team will be happy to assist you.
1SPA63 Pulley Dimensions
- Outside Diameter (OD): 69mm
- Pitch Diameter (PD): 63mm
- Type: 9
- Bushing Type: 1108
- Maximum Bushing Bore: 28mm
- Dimension (F): 40mm
- Dimension (G): 34mm
- Dimension (K): 18mm
- Dimension (L): 22mm
- Pulley Weight: 0.8 Kg
- Outside Diameter (OD): 69mm
- Pitch Diameter (PD): 63mm
- Type: 9
- Bushing Type: 1108
- Maximum Bushing Bore: 28mm
- Dimension (F): 40mm
- Dimension (G): 34mm
- Dimension (K): 18mm
- Dimension (L): 22mm
- Pulley Weight: 0.8 Kg
