08BTB70 Sprocket (Taper Bushed)
Note:
Custom Cut to Length Chain Also Available
SKU: 08BTB70-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
08BTB70 Sprocket (Taper Bushed) Features
08BTB70 Sprocket (Taper Bushed) Specifications

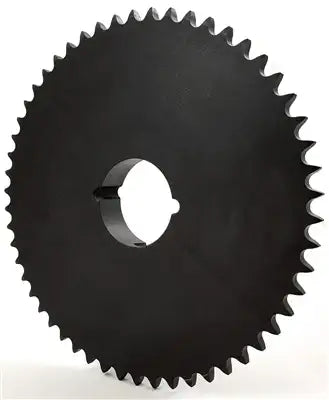

This 08BTB70 sprocket is a metric taper bushed style roller chain sprocket manufactured under ISO and British Standard 228. and is made to accept a 2012 taper bushing Our 08BTB70 sprockets are made with reliability and performance in mind, so we use high-quality carbon steel (CS) and have the sprocket precision cut to ensure maximum performance and wear life. We also offer upgrades on our 08BTB70 sprockets such as black-oxide coatings and heat-treated hardened teeth, though hardened tooth sprockets are typically not utilized on tooth counts past 30. Besides the 70 tooth sprocket, we also stock a high-quality 08B roller chain, 2012 bushings, and a wide array of roller chain accessories. For more information or to get a quote on taper bushed 08BTB70 sprockets, please contact us and one of our sales team members will be happy to assist you.
08BTB70 Sprocket Dimensions
- Sprocket Size: 08BTB70
- Tooth Count: 70
- Pitch Diameter: 283.07mm
- Bushing Size: 2012
- Maximum Bushing Bore: 50.80mm
- Length Thru Bore (L): 31.75mm
- Hub Diameter (C): 90mm
- Sprocket Weight: 3.93 kG
- Bushing Weight: 0.77 kG
- Sprocket Size: 08BTB70
- Tooth Count: 70
- Pitch Diameter: 283.07mm
- Bushing Size: 2012
- Maximum Bushing Bore: 50.80mm
- Length Thru Bore (L): 31.75mm
- Hub Diameter (C): 90mm
- Sprocket Weight: 3.93 kG
- Bushing Weight: 0.77 kG
