08B76 Sprocket With Stock Bore

Power Transmission > Sprockets > Metric Roller Chain Sprockets > 08B Chain Sprockets > 08B B-Hub Sprockets

08B76 Sprocket With Stock Bore

Note: Custom Cut to Length Chain Also Available
SKU: 08B76-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51714083225967" , "metafield_value":""}]
08B76 Sprocket With Stock Bore Features
08B76 Sprocket With Stock Bore Specifications

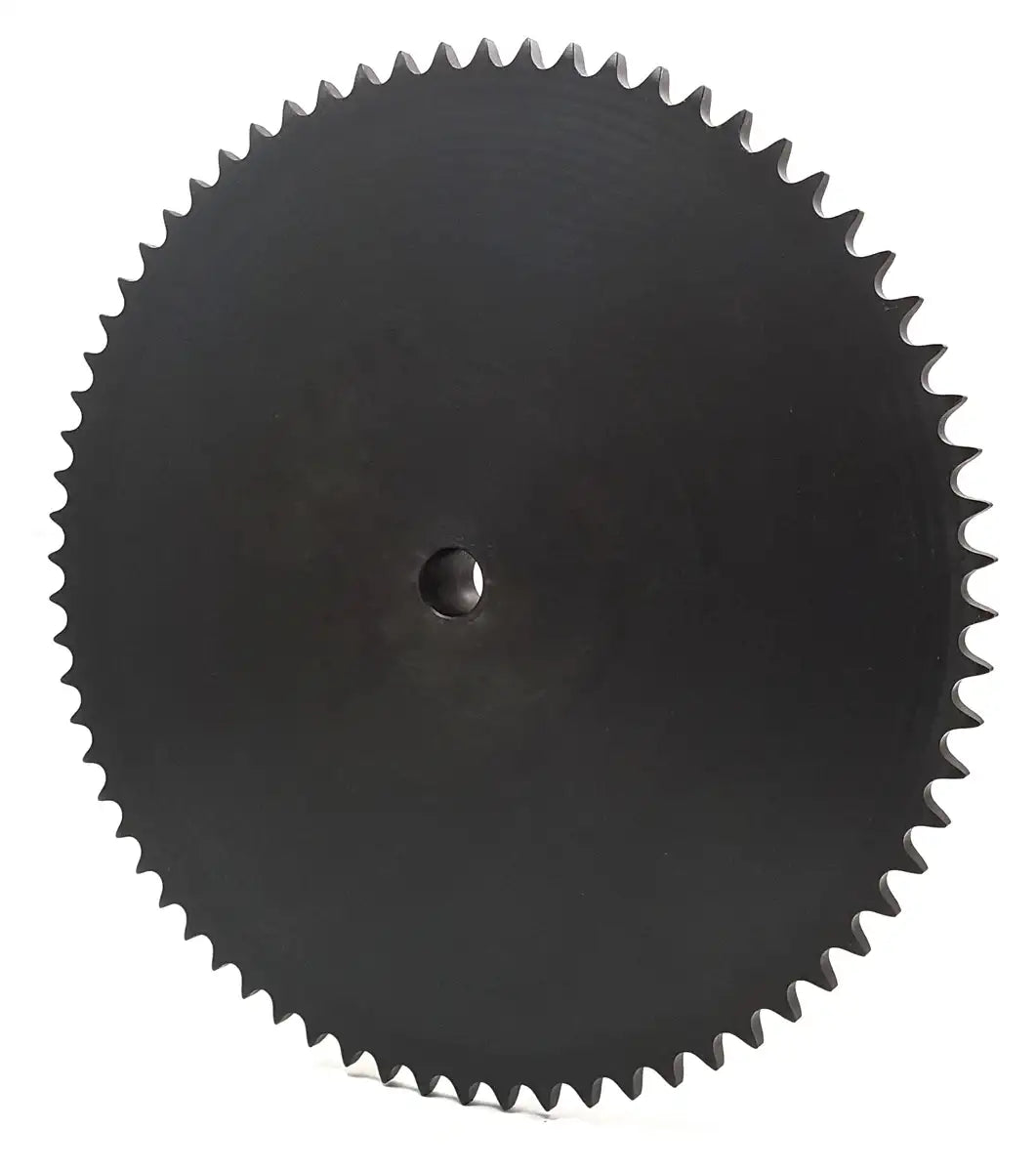

This 08B76 sprocket is a durable, high quality, and precision sprocket with 76 teeth. Something that is notable about this 08B76 sprocket is that it fully meets all ISO Standards, which insures proper contact between the 08B-1 roller chain and sprocket thus preventing premature wear or breakage. This sprocket is also fully black oxide coated which increases resistance to the environment and will prevent early rust build up. 08B76 sprockets with a stock bore comes with the standard 19 millimeter inside diameter hole with no key-way or set screws and can be easily machine bored to custom sizes. We also offer sprockets with finished bore configurations right off the shelf from stock, and if you are needing a custom bore sprocket we the capabilities on providing those to within a fast lead time and at really great prices. Fore more information or to get a formal quote please contact us and we will be happy to assist you.

Dimensions:
08B76 Sprocket With Stock Bore
  • Sprocket Size: 08B76
  • Tooth Count: 76
  • Pitch Diameter: 307.32mm
  • Stock Bore: 19mm
  • Maximum Bore: 64mm
  • Hub Diameter: 100mm
  • Length Thru Bore: 35mm
  • Weight: 5.73kg
Phone: (407) 347-3519
Email: sales@usarollerchain.com

Click Here To See Our Other Products!
  • Sprocket Size: 08B76
  • Tooth Count: 76
  • Pitch Diameter: 307.32mm
  • Stock Bore: 19mm
  • Maximum Bore: 64mm
  • Hub Diameter: 100mm
  • Length Thru Bore: 35mm
  • Weight: 5.73kg
