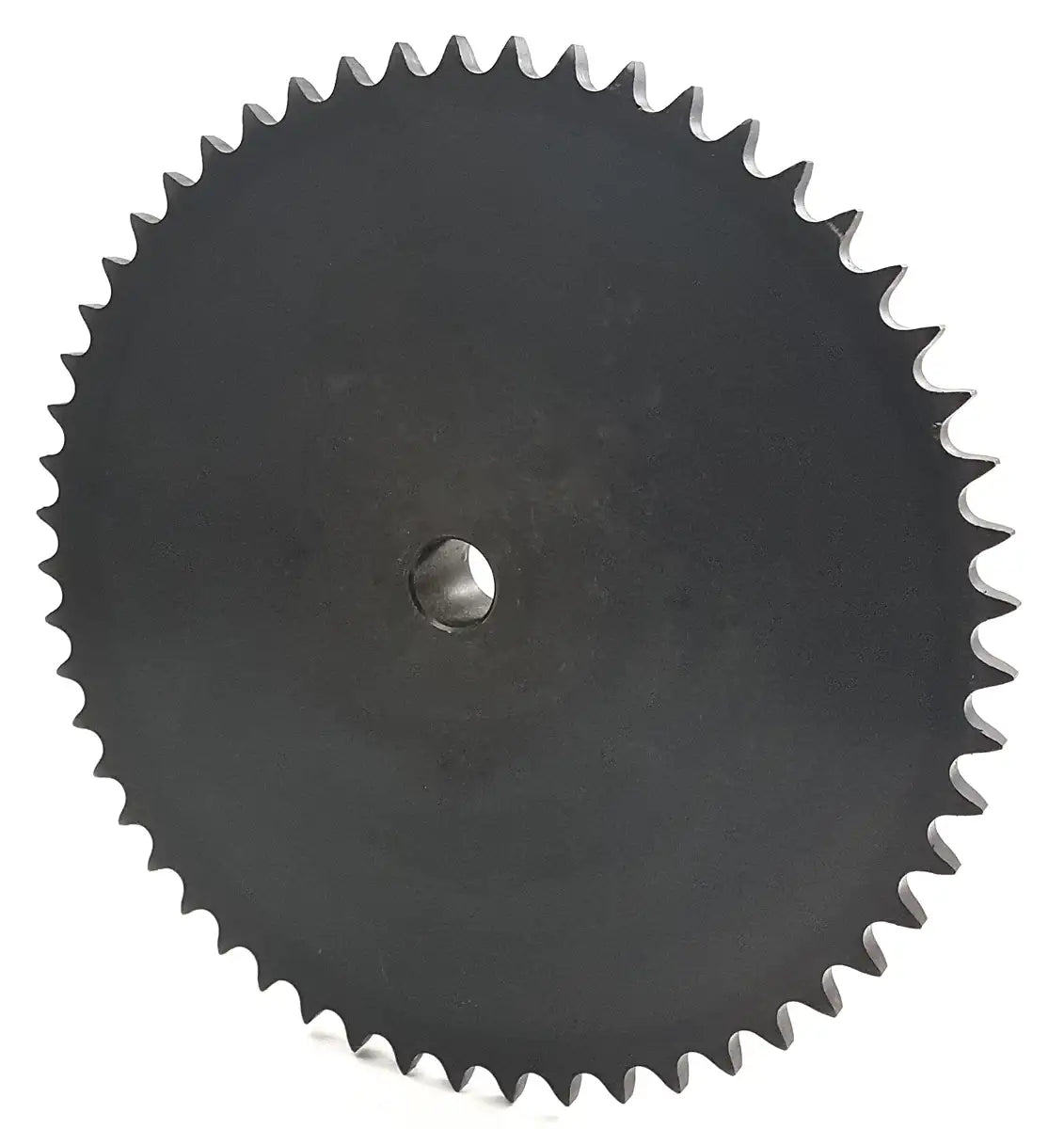

08B48 Sprocket With Stock Bore

Note:

Custom bore sizes are available. Contact us if you need a specific bore size or machining requirement.
Images are for reference only. Actual product appearance may vary based on size, bore, keyway, hub style, or manufacturer.

SKU: 08B48-SPROCKET

In stockOnly 0 left in stockBackordered Out of stock Item is unavailable Contact Us For Pricing & Availability

Request a Quote

Call to order

Don’t see what you need? In a rush?

Buy it With:

Metric 08B Roller Chain - 10ft Box $44.99
Premium 08B Roller Chain - 10ft Box $79.99

08B48 Sprocket With Stock Bore Description/Features

08B48 Sprocket With Stock Bore Specifications

This 08B48 sprocket is a durable, high quality, and precision sprocket with 48 teeth. Something that is notable about this 08B48 sprocket is that it fully meets all ISO Standards, which insures proper contact between the 08B-1 roller chain and sprocket thus preventing premature wear or breakage. This sprocket is also fully black oxide coated which increases resistance to the environment and will prevent early rust build up. 08B48 sprockets with a stock bore comes with the standard 19 millimeter inside diameter hole with no key-way or set screws and can be easily machine bored to custom sizes. We also offer sprockets with finished bore configurations right off the shelf from stock, and if you are needing a custom bore sprocket we the capabilities on providing those to within a fast lead time and at really great prices. Fore more information or to get a formal quote please contact us and we will be happy to assist you.

Dimensions:

Sprocket Size: 08B48
Tooth Count: 48
Pitch Diameter: 194.18mm
Stock Bore: 19mm
Maximum Bore: 64mm
Hub Diameter: 100mm
Length Thru Bore: 35mm
Weight: 2.76kg
