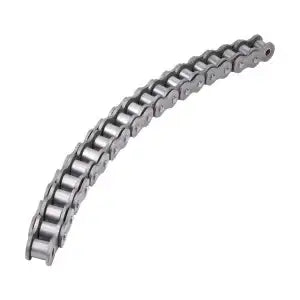

08B Side Bow Roller Chain
Note:
Manufactured In Accordance With ISO Standards
SKU: 08B-SB-ROLLER-CHAIN
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |
08B Side Bow Roller Chain Description/Features
08B Side Bow Roller Chain Specifications
08B side bow roller chain has a 12.7mm pitch and is manufactured in accordance with ISO British Standards. Though it is a side bow chain, it still runs on standard 08B metric sprockets. This 08B side bow chain offers exceptional performance and working life due to using high-quality heat-treated components and being shipped with a premium lubricant already applied to the chain. Typically this chain will come in 10ft boxes including a connecting link but longer-length custom lengths can be made upon request. For more information or to get a quote please contact us and we will be happy to assist you.
08B Side Bow Chain Dimensions
- Pitch (P): 12.7mm
- Width Between Inner Plates (W): 7.75mm
- Roller Diameter (R): 8.51mm
- Pin Diameter (D): 4.45mm
- Inner Link Overall Width (B): 11.30mm
- Plate Height (H): 11.8mm
- Pin Length (F): 17.1mm
- Connecting Link Width (O): 18.3mm
- Minimum Flex Radius (R): 315mm
- Weight: 0.7 kG/ M
- Pitch (P): 12.7mm
- Width Between Inner Plates (W): 7.75mm
- Roller Diameter (R): 8.51mm
- Pin Diameter (D): 4.45mm
- Inner Link Overall Width (B): 11.30mm
- Plate Height (H): 11.8mm
- Pin Length (F): 17.1mm
- Connecting Link Width (O): 18.3mm
- Minimum Flex Radius (R): 315mm
- Weight: 0.7 kG/ M
