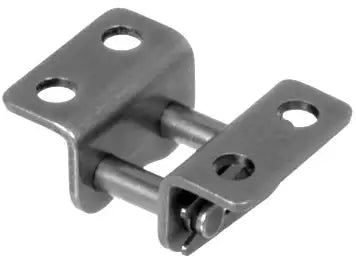

Metric 08B K2 Attachment Connecting Link
Note:
Custom Cut to Length Chain Also Available
$3.79
SKU: 08B-K2-ATTACHMENT-10500322
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Metric 08B K2 Attachment Connecting Link Features
Metric 08B K2 Attachment Connecting Link Specifications
Our superior 08B K2 attachment connecting link is designed explicitly for metric 12.7mm pitch 08B chain and conforms to ISO and DIN dimensional standards for direct interchangeability. Each precision component of this 08B K2 attachment is made from top-quality carbon steel that has been heat-treated for extended working life and durability. We supply this attachment as a standard connecting link (master link) or assembled onto the 08B roller chain in specific increments. Design-wise, the 08B K2 attachment has a bent tab on both sides with two holes each for mounting. For additional information or to get a quote on our 08B K2 attachments, contact our customer service team, and we will gladly assist you.
08B K2 Attachment Dimensions
- Part #: 08B K2
- Configuration: Bent Two Holes on Both Sides
- Pitch (P): 12.7mm
- Inner Width (B1): 7.75mm
- Roller Link Width (B2): 11.30mm
- Roller Diameter (D1): 8.51mm
- Plate Height (K): 11.8mm
- Attachment Width (M): 24.0mm
- Attachment Hole I.D. (DL): 4.5mm
- Dimension (G): 12.7mm
- Dimension (I): 12.7mm
- Dimension (F): 18.2mm
- Dimension (H): 8.9mm
- Plate Thickness (S): 1.6mm
- Part #: 08B K2
- Configuration: Bent Two Holes on Both Sides
- Pitch (P): 12.7mm
- Inner Width (B1): 7.75mm
- Roller Link Width (B2): 11.30mm
- Roller Diameter (D1): 8.51mm
- Plate Height (K): 11.8mm
- Attachment Width (M): 24.0mm
- Attachment Hole I.D. (DL): 4.5mm
- Dimension (G): 12.7mm
- Dimension (I): 12.7mm
- Dimension (F): 18.2mm
- Dimension (H): 8.9mm
- Plate Thickness (S): 1.6mm
