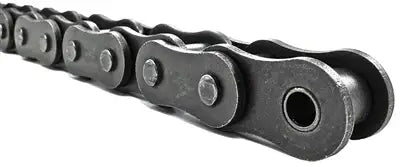

Premium Metric 083 Roller Chain - 10ft Box
Note:
Se Habla Espanol
$59.99
SKU: 083B-ROLLER-CHAIN
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |
Premium Metric 083 Roller Chain - 10ft Box Description/Features
Premium Metric 083 Roller Chain - 10ft Box Specifications
083 roller chain is commonly referred to as 083B roller chain because it is manufactured in accordance with ISO 606B and 228 British Standard dimensional and material specifications. What sets our 083 chains apart from others is the precision heat-treatment on the individual parts, shot peening, pre-stressing, and seamless roller design.
The roller of a chain is responsible for the sprocket-to-chain contact, as you can imagine over time this contact wears on a chain. With a seamed roller design, the roller over time becomes oval-shaped and warped, causing the chain to dig into the root of the sprocket which results in an excessive chain and sprocket wear. Utilizing the seamless roller design like our 083 chain eliminates this type of wear over time and dramatically increases the overall working life and performance of the chain.
 Roller With Seam |
 Seamless Roller Design |
083 Roller Chain Dimensions
- Chain Size: 083
- Pitch (P): 12.7mm
- Roller Width (W): 4.88mm
- Roller Diameter (D): 7.75mm
- Pin Diameter (E): 3.66mm
- Plate Height (H): 9.9mm
- Overall Width of Connecting Link (A): 10.2mm
- Breaking Load: 9.97 kN
- Weight: 0.13 kG/ FT
- Chain Size: 083
- Pitch (P): 12.7mm
- Roller Width (W): 4.88mm
- Roller Diameter (D): 7.75mm
- Pin Diameter (E): 3.66mm
- Plate Height (H): 9.9mm
- Overall Width of Connecting Link (A): 10.2mm
- Breaking Load: 9.97 kN
- Weight: 0.13 kG/ FT
