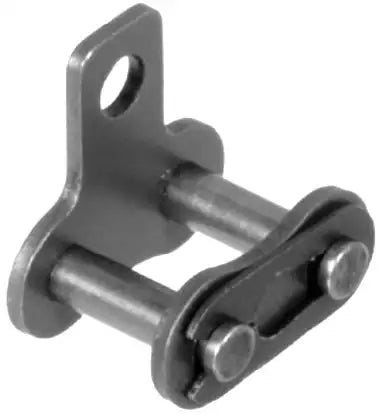

Metric 06B SA1 Attachment Connecting Link
Note:
Custom Cut to Length Chain Also Available
$2.99
SKU: 06B-SA1-ATTACHMENT-10100331
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Metric 06B SA1 Attachment Connecting Link Features
Metric 06B SA1 Attachment Connecting Link Specifications
Our superior 06B SA1 attachment connecting link is designed explicitly for metric 9.525mm pitch 06B chain and conforms to ISO and DIN dimensional standards for direct interchangeability. Each precision component of this 06B SA1 attachment is made from top-quality carbon steel that has been heat-treated for extended working life and durability. We supply this attachment as a standard connecting link (master link) or assembled onto the 06B roller chain in specific increments. Design-wise, the 06B SA1 attachment has a straight tab on one side with one hole for mounting. For additional information or to get a quote on our 06B SA1 attachments, contact our customer service team, and we will gladly assist you.
06B SA1 Attachment Dimensions
- Part #: 06B SA1
- Configuration: Straight One Hole on One Side
- Pitch (P): 9.525mm
- Inner Width (B1): 5.72mm
- Roller Link Width (B2): 8.53mm
- Roller Diameter (D1): 6.53mm
- Plate Height (G): 8.0mm
- Attachment Width (M): 9.52mm
- Attachment Hole I.D. (DL): 3.5mm
- Dimension (F): 9.52mm
- Dimension (H): 13.5mm
- Plate Thickness (S): 1.30mm
- Part #: 06B SA1
- Configuration: Straight One Hole on One Side
- Pitch (P): 9.525mm
- Inner Width (B1): 5.72mm
- Roller Link Width (B2): 8.53mm
- Roller Diameter (D1): 6.53mm
- Plate Height (G): 8.0mm
- Attachment Width (M): 9.52mm
- Attachment Hole I.D. (DL): 3.5mm
- Dimension (F): 9.52mm
- Dimension (H): 13.5mm
- Plate Thickness (S): 1.30mm
