Metric K1 Attachments
Metric 06B K1 Attachment Connecting Link
Note:
Custom Cut to Length Chain Also Available
$3.19
SKU: 06B-K1-ATTACHMENT-10100302
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Metric 06B K1 Attachment Connecting Link Features
Metric 06B K1 Attachment Connecting Link Specifications

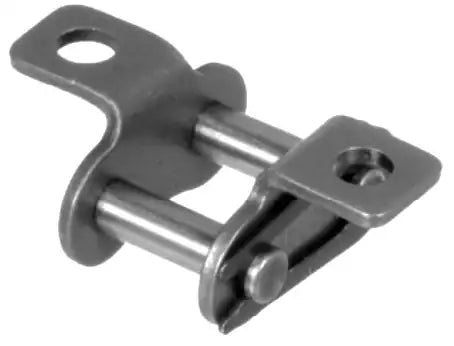

Our superior 06B K1 attachment connecting link is designed explicitly for metric 9.525mm pitch 06B chain and conforms to ISO and DIN dimensional standards for direct interchangeability. Each precision component of this 06B K1 attachment is made from top-quality carbon steel that has been heat-treated for extended working life and durability. We supply this attachment as a standard connecting link (master link) or assembled onto the 06B roller chain in specific increments. Design-wise, the 06B K1 attachment has a bent tab on both sides with one hole each for mounting. For additional information or to get a quote on our 06B K1 attachments, contact our customer service team, and we will gladly assist you.
06B K1 Attachment Dimensions
- Part #: 06B K1
- Configuration: One Hole on Both Sides
- Pitch (P): 9.525mm
- Inner Width (B1): 5.72mm
- Roller Link Width (B2): 8.53mm
- Roller Diameter (D1): 6.53mm
- Plate Height (G): 8.0mm
- Attachment Width (M): 9.52mm
- Attachment Hole I.D. (DL): 3.5mm
- Dimension (I): 9.52mm
- Dimension (F): 13.5mm
- Dimension (H): 6.5mm
- Plate Thickness (S): 1.30mm
- Part #: 06B K1
- Configuration: One Hole on Both Sides
- Pitch (P): 9.525mm
- Inner Width (B1): 5.72mm
- Roller Link Width (B2): 8.53mm
- Roller Diameter (D1): 6.53mm
- Plate Height (G): 8.0mm
- Attachment Width (M): 9.52mm
- Attachment Hole I.D. (DL): 3.5mm
- Dimension (I): 9.52mm
- Dimension (F): 13.5mm
- Dimension (H): 6.5mm
- Plate Thickness (S): 1.30mm
