Metric A2 Attachments
Metric 06B A2 Attachment Connecting Link
Note:
Custom Cut to Length Chain Also Available
$3.19
SKU: 06B-A2-ATTACHMENT-10100321
Item is in stock
Only 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Metric 06B A2 Attachment Connecting Link Features
Metric 06B A2 Attachment Connecting Link Specifications

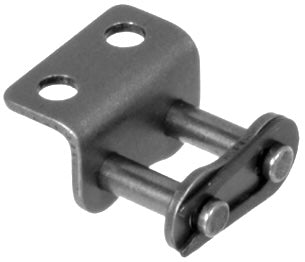

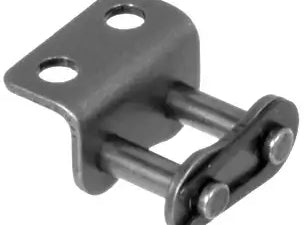

Our superior 06B A2 attachment connecting link is designed explicitly for metric 9.525mm pitch 06B chain and conforms to ISO and DIN dimensional standards for direct interchangeability. Each precision component of this 06B A2 attachment is made from top-quality carbon steel that has been heat-treated for extended working life and durability. We supply this attachment as a standard connecting link (master link) or assembled onto the 06B roller chain in specific increments. Design-wise, the 06B A2 attachment has a bent tab on one side with two holes for mounting. For additional information or to get a quote on our 06B A2 attachments, contact our customer service team, and we will gladly assist you.
06B A2 Attachment Dimensions
- Part #: 06B A2
- Configuration: Bent Two Holes on One Side
- Pitch (P): 9.525mm
- Inner Width (B1): 5.72mm
- Roller Link Width (B2): 8.53mm
- Roller Diameter (D1): 6.53mm
- Plate Height (K): 8.0mm
- Attachment Width (M): 17.72mm
- Attachment Hole I.D. (DL): 3.5mm
- Dimension (G): 9.525mm
- Dimension (I): 9.5mm
- Dimension (F): 13.5mm
- Dimension (H): 6.5mm
- Plate Thickness (S): 1.3mm
- Part #: 06B A2
- Configuration: Bent Two Holes on One Side
- Pitch (P): 9.525mm
- Inner Width (B1): 5.72mm
- Roller Link Width (B2): 8.53mm
- Roller Diameter (D1): 6.53mm
- Plate Height (K): 8.0mm
- Attachment Width (M): 17.72mm
- Attachment Hole I.D. (DL): 3.5mm
- Dimension (G): 9.525mm
- Dimension (I): 9.5mm
- Dimension (F): 13.5mm
- Dimension (H): 6.5mm
- Plate Thickness (S): 1.3mm
