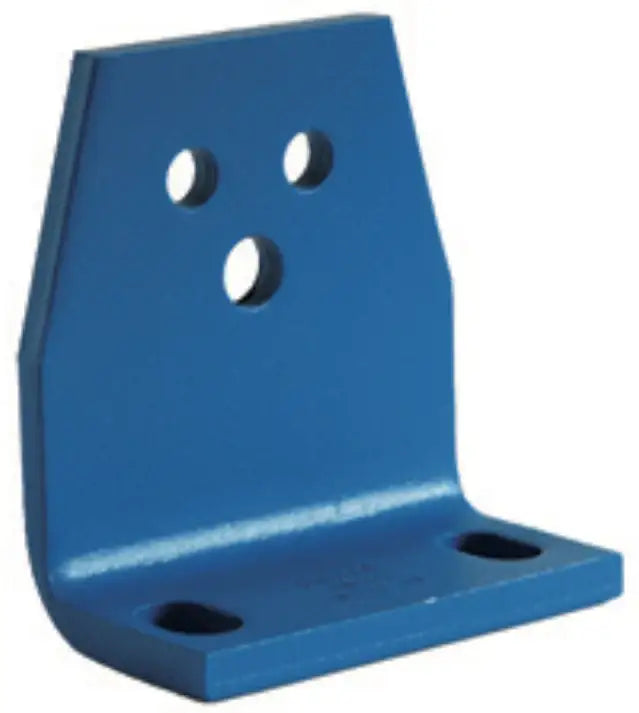

Rosta 06590002 WS15 Support Bracket For SE15 Tensioner
Note:
Custom Cut to Length Chain Also Available
SKU: 06590002-WS15-BRACKET
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Rosta 06590002 WS15 Support Bracket For SE15 Tensioner Features
Rosta 06590002 WS15 Support Bracket For SE15 Tensioner Specifications
Rosta 06590002 WS15 Support Bracket creates easier mounting for the SE-15 Tensioner. Being manufactured from high-grade high-strength steel means that this support bracket is up for the task of long-term usage with the tensioner!
WS15 Support Bracket Dimensions
- Type: WS-15
- Article Number: 06590002
- Use on Tensioner Size: SE-15
- Dimension (A): 0.33"
- Dimension (B): 0.26"
- Dimension (C): 0.28"
- Dimension (D): 0.30"
- Dimension (E): 1.57"
- Dimension (F): 0.51"
- Dimension (G): 0.53"
- Dimension (H): 1.34"
- Dimension (J): 0.20"
- Dimension (K): 2.17"
- Dimension (L): 1.26"
- Dimension (M): 2.28"
- Dimension (N): 1.73"
- Dimension (O): 0.47"
- Weight: 0.3 (LBS)
- Type: WS-15
- Article Number: 06590002
- Use on Tensioner Size: SE-15
- Dimension (A): 0.33"
- Dimension (B): 0.26"
- Dimension (C): 0.28"
- Dimension (D): 0.30"
- Dimension (E): 1.57"
- Dimension (F): 0.51"
- Dimension (G): 0.53"
- Dimension (H): 1.34"
- Dimension (J): 0.20"
- Dimension (K): 2.17"
- Dimension (L): 1.26"
- Dimension (M): 2.28"
- Dimension (N): 1.73"
- Dimension (O): 0.47"
- Weight: 0.3 (LBS)
