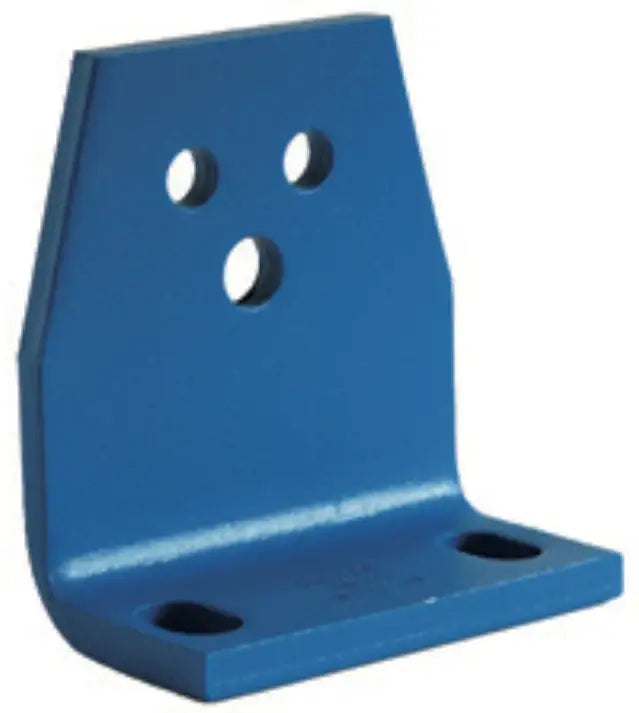

Rosta 06590001 WS11 Support Bracket For SE11 Tensioner
Note:
Custom Cut to Length Chain Also Available
SKU: 06590001-WS11-BRACKET
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Rosta 06590001 WS11 Support Bracket For SE11 Tensioner Features
Rosta 06590001 WS11 Support Bracket For SE11 Tensioner Specifications
Rosta 06590001 WS11 Support Bracket creates easier mounting for the SE-11 Tensioner. Being manufactured from high-grade high-strength steel means that this support bracket is up for the task of long-term usage with the tensioner!
WS11 Support Bracket Dimensions
- Type: WS-11
- Article Number: 06590001
- Use on Tensioner Size: SE-11
- Dimension (A): 0.26"
- Dimension (B): 0.22"
- Dimension (C): 0.28"
- Dimension (D): 0.30"
- Dimension (E): 1.18"
- Dimension (F): 0.51"
- Dimension (G): 0.45"
- Dimension (H): 1.06"
- Dimension (J): 0.16"
- Dimension (K): 1.77"
- Dimension (L): 1.18"
- Dimension (M): 1.81"
- Dimension (N): 1.38"
- Dimension (O): 0.39"
- Weight: 0.2 (LBS)
- Type: WS-11
- Article Number: 06590001
- Use on Tensioner Size: SE-11
- Dimension (A): 0.26"
- Dimension (B): 0.22"
- Dimension (C): 0.28"
- Dimension (D): 0.30"
- Dimension (E): 1.18"
- Dimension (F): 0.51"
- Dimension (G): 0.45"
- Dimension (H): 1.06"
- Dimension (J): 0.16"
- Dimension (K): 1.77"
- Dimension (L): 1.18"
- Dimension (M): 1.81"
- Dimension (N): 1.38"
- Dimension (O): 0.39"
- Weight: 0.2 (LBS)
