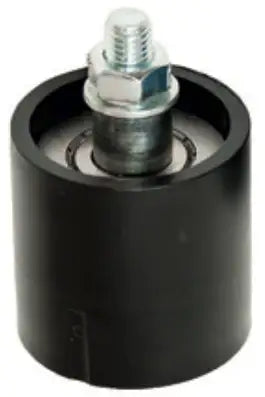

Rosta 06580902 RL15/18 Tensioning Roller For SE15/SE18 Tensioners

Rosta 06580902 RL15/18 Tensioning Roller For SE15/SE18 Tensioner is a permanently lubricated roller that utilizes premium 2Z C3 shielded bearings. It has a broad operating temperature range of -31° to + 212° degrees Fahrenheit.

RL15/18 Tensioning Roller Dimensions

• Type: RL15/18
• Article Number: 06580902
• Max Speed: 6000 RPM
• Maximum Belt Width: 1.57"
• Dimension (A): 1.57"
• Dimension (B): 1.77"
• Dimension (C): 0.24"
• Dimension (D): 0.83"
• Dimension (E): 0.35"
• Dimension (F): M10
• Torque Hex Nut: 36.1 (lb/ ft)
• Works With Tensioner Type: SE-15 / SE-18
• Weight: 0.37 LBS

Tensioning With Flat Roller on Belt Back

– The diameter of the flat tensioning roller should at least measure 2⁄3 of the diameter of the smallest pulley in the drive.
– The width of the tensioning roller should be at least 20% wider than the overall width of the belt set.
– Installation on the belt back in the slack span, make sure that the belts are maintaining sufficient contact-arc on the driver and driven pulley.
