Chain MRO Parts > Roller Chain Tensioners > Rosta Tensioner Devices

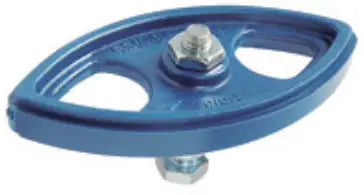

Rosta 06560004 #60-2 Chain Rider For SE27 Tensioner
Note:
Custom Cut to Length Chain Also Available
SKU: 06560004-60-2-CHAIN-RIDER
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Rosta 06560004 #60-2 Chain Rider For SE27 Tensioner Features
Rosta 06560004 #60-2 Chain Rider For SE27 Tensioner Specifications
Rosta 06560004 #60-2 Chain Rider For SE27 Tensioners is made from high-quality POM-H and is designed for double-sided use. The maximum allowable speed for the chain rider is 59 inches per second. For more information or to get a quote please contact us and we will be happy to assist you!
Rosta 06560004 #60-2 Chain Rider Dimension
- Article Number: 06560004
- Type: P3/4"-12D
- Works With ANSI Chain Size: 60-2
- Works With DIN 8187 Chain Size: 12B-2
- Dimension (W): M12
- Dimension (L): 80mm
- Dimension (X): 148mm
- Dimension (Y): 72mm
- Dimension (Z): 19.5mm
- Torque Hex Nut 0.5 d (Nm): 35
- Works With Tensioner Type: SE-27
- Adjustable Range (R) with SE: 40-52
- Weight: 0.26 kG
- Article Number: 06560004
- Type: P3/4"-12D
- Works With ANSI Chain Size: 60-2
- Works With DIN 8187 Chain Size: 12B-2
- Dimension (W): M12
- Dimension (L): 80mm
- Dimension (X): 148mm
- Dimension (Y): 72mm
- Dimension (Z): 19.5mm
- Torque Hex Nut 0.5 d (Nm): 35
- Works With Tensioner Type: SE-27
- Adjustable Range (R) with SE: 40-52
- Weight: 0.26 kG
