Roller Chain > Corrosion-Resistant Roller Chain > Stainless Steel Roller Chain > Stainless Steel Metric Roller Chain > 05B Stainless Steel Metric Roller Chain
Metric 05B Stainless Steel Roller Chain - 10ft Box
Login to Request a Quote

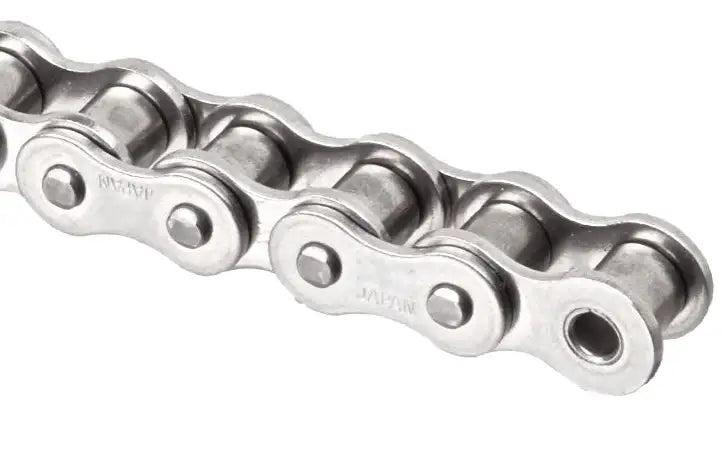

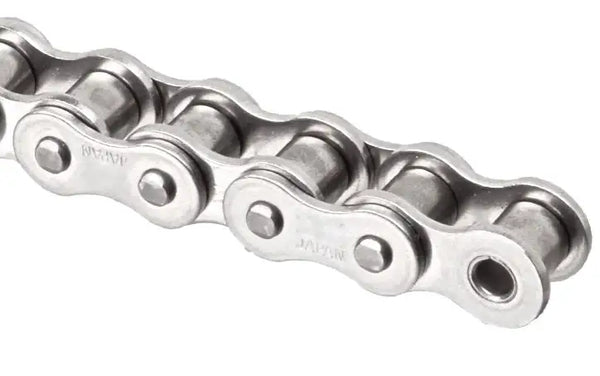

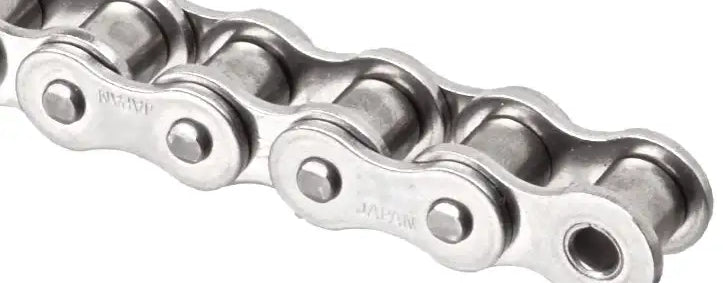

05B stainless steel roller chain is an 8mm pitch metric roller chain that dimensionally conforms with ISO and British Standards (BS). Being made from 304-grade stainless steel means this 05B stainless chain can operate in abrasive, corrosive, and food-grade environments. Additionally, our 05B stainless steel roller chain utilizes high-precision components for optimal wear life and performance while being factory-pre-loaded to reduce elongation. Because our 05BSS roller chain conforms to ISO and BS standards, it is directly interchangeable with other brands. For more information or a quote on our high-quality 05B stainless steel roller chain, contact our customer support team, and we will gladly assist you!
05B Stainless Roller Chain Dimensions
- Part #: 05BSS
- Pitch (P): 8.00mm
- Roller Width (R): 3.00mm
- Roller Diameter (D): 5.00mm
- Overall Width (W): 8.60mm
- Connecting Link Overall Width (X): 11.70mm
- Plate Height (H): 7.10mm
- Plate Thickness (T): 0.80mm
- Pin Diameter (L): 2.31mm
- Weight: 0.18 kG/ m
- Part #: 05BSS
- Pitch (P): 8.00mm
- Roller Width (R): 3.00mm
- Roller Diameter (D): 5.00mm
- Overall Width (W): 8.60mm
- Connecting Link Overall Width (X): 11.70mm
- Plate Height (H): 7.10mm
- Plate Thickness (T): 0.80mm
- Pin Diameter (L): 2.31mm
- Weight: 0.18 kG/ m
