Stamped Steel Pillow Block Bearings
Stamped steel pillow block bearings consist of an insert bearing and a 2-piece stamped steel housing that holds the bearing. Our stamped steel pillow block bearings are supplied with corrosion-resistant zinc-plated housing and high-quality precision C3 insert bearings for performance and durability. We also provide vibrating damping pillow block bearings. Two-bolt pillow block bearings are by design some of the most commonly used bearings in the industry; they are used in applications where the mounting surface is parallel to the shaft axis. Stamped steel bearings are engineered for light-duty applications and provide a cost advantage over their cast counterparts. Discover our high-quality stamped steel pillow block bearings today! For additional information or getting a quote, don't hesitate to contact our customer support team, and we will be happy to assist you!Stamped Steel Pillow Block Bearing Sizes
The below charts show our standard selection of stamped steel pillow block bearings; if you don't see the specific bearing you need, contact us!SBPP200 Pillow Block Bearings
SBPP200 bearings are light-duty stamped steel pillow block bearings that utilise two set screws for securing to a shaft. These bearings range in bore sizes 1/2" to 1-7/16"; for additional information or pricing, don't hesitate to get in touch with us!
|
Bearing Part #
|
Bearing I.D.
|
(h)
|
(a)
|
(e)
|
(b)
|
(S1)
|
(S2)
|
(w)
|
(g)
|
(Bi)
|
(n)
|
Insert Bearing #
|
Housing #
|
Weight (LBS)
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SBPP201-8 | 1/2" | 7/8" | 3-5/8" | 2-11/16" | 31/32" | 11/32" | 1/2" | 1-3/4" | 5/32" | 0.866" | 0.236" | SB201-8 | PP203ST | 0.37 |
| SBPP202-10 | 5/8" | 7/8" | 3-5/8" | 2-11/16" | 31/32" | 11/32" | 1/2" | 1-3/4" | 5/32" | 0.866" | 0.236" | SB202-10 | PP203ST | 0.37 |
| SBPP204 | 20mm | 1" | 4-1/8" | 2-63/64" | 31/32" | 13/32" | 1/2" | 2-3/32" | 5/32" | 0.984" | 0.276" | SB204 | PP204ST | 0.48 |
| SBPP204-12 | 3/4" | 1" | 4-1/8" | 2-63/64" | 31/32" | 13/32" | 1/2" | 2-3/32" | 5/32" | 0.984" | 0.276" | SB204-12 | PP204ST | 0.48 |
| SBPP205 | 25mm | 1-1/8" | 4-19/64" | 3-25/64" | 1-3/16" | 13/32" | 9/16" | 2-7/32" | 13/64" | 1.063" | 0.295" | SB205 | PP205ST | 0.68 |
| SBPP205-14 | 7/8" | 1-1/8" | 4-19/64" | 3-25/64" | 1-3/16" | 13/32" | 9/16" | 2-7/32" | 13/64" | 1.063" | 0.295" | SB205-14 | PP205ST | 0.68 |
| SBPP205-15 | 15/16" | 1-1/8" | 4-19/64" | 3-25/64" | 1-3/16" | 13/32" | 9/16" | 2-7/32" | 13/64" | 1.063" | 0.295" | SB205-15 | PP205ST | 0.68 |
| SBPP205-16 | 1" | 1-1/8" | 4-19/64" | 3-25/64" | 1-3/16" | 13/32" | 9/16" | 2-7/32" | 13/64" | 1.063" | 0.295" | SB205-16 | PP205ST | 0.68 |
| SBPP206 | 30mm | 1-5/16" | 4-7/8" | 3-3/4" | 1-1/4" | 13/32" | 9/16" | 2-5/8" | 15/64" | 1.181" | 0.315" | SB206 | PP206ST | 1.03 |
| SBPP206-17 | 1-1/16" | 1-5/16" | 4-7/8" | 3-3/4" | 1-1/4" | 13/32" | 9/16" | 2-5/8" | 15/64" | 1.181" | 0.315" | SB206-17 | PP206ST | 1.03 |
| SBPP206-18 | 1-1/8" | 1-5/16" | 4-7/8" | 3-3/4" | 1-1/4" | 13/32" | 9/16" | 2-5/8" | 15/64" | 1.181" | 0.315" | SB206-18 | PP206ST | 1.03 |
| SBPP206-19 | 1-3/16" | 1-5/16" | 4-7/8" | 3-3/4" | 1-1/4" | 13/32" | 9/16" | 2-5/8" | 15/64" | 1.181" | 0.315" | SB206-19 | PP206ST | 1.03 |
| SBPP206-20 | 1-1/4" | 1-5/16" | 4-7/8" | 3-3/4" | 1-1/4" | 13/32" | 9/16" | 2-5/8" | 15/64" | 1.181" | 0.315" | SB206-20 | PP206ST | 1.03 |
| SBPP207 | 35mm | 1-9/16" | 5-3/4" | 4-1/4" | 1-19/64" | 1/2" | 3/4" | 3-1/8" | 15/64" | 1-1/4" | 0.335" | SB207 | PP207ST | 1.61 |
| SBPP207-20 | 1-1/4" | 1-9/16" | 5-3/4" | 4-1/4" | 1-19/64" | 1/2" | 3/4" | 3-1/8" | 15/64" | 1-1/4" | 0.335" | SB207-20 | PP207ST | 1.61 |
| SBPP207-21 | 1-5/16" | 1-9/16" | 5-3/4" | 4-1/4" | 1-19/64" | 1/2" | 3/4" | 3-1/8" | 15/64" | 1-1/4" | 0.335" | SB207-21 | PP207ST | 1.61 |
| SBPP207-22 | 1-3/8" | 1-9/16" | 5-3/4" | 4-1/4" | 1-19/64" | 1/2" | 3/4" | 3-1/8" | 15/64" | 1-1/4" | 0.335" | SB207-22 | PP207ST | 1.61 |
| SBPP207-23 | 1-7/16" | 1-9/16" | 5-3/4" | 4-1/4" | 1-19/64" | 1/2" | 3/4" | 3-1/8" | 15/64" | 1-1/4" | 0.335" | SB207-23 | PP207ST | 1.61 |
SAPP200 Pillow Block Bearings
SAPP200 bearings are light-duty stamped steel pillow block bearings that utilise an eccentric locking collar for securing to a shaft. These bearings range in bore sizes 1/2" to 1-7/16"; for additional information or pricing, don't hesitate to get in touch with us!
|
Bearing Part #
|
Bearing I.D.
|
(h)
|
(a)
|
(e)
|
(b)
|
(S1)
|
(S2)
|
(w)
|
(g)
|
(L)
|
(n)
|
(W)
|
Bolt Size
|
Insert Bearing #
|
Housing #
|
Weight (LBS)
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SAPP201-8 | 1/2" | 7/8" | 3-5/8" | 2-11/16" | 31/32" | 11/32" | 1/2" | 1-3/4" | 5/32" | 1.126" | 0.236" | 1-1/8" | 5/16" | SA201-8 | PP203ST | 0.44 |
| SAPP202-10 | 5/8" | 7/8" | 3-5/8" | 2-11/16" | 31/32" | 11/32" | 1/2" | 1-3/4" | 5/32" | 1.126" | 0.236" | 1-1/8" | 5/16" | SA202-10 | PP203ST | 0.44 |
| SAPP204 | 20mm | 1" | 4-1/8" | 2-63/64" | 31/32" | 13/32" | 1/2" | 2-3/32' | 5/32" | 1.220" | 0.276" | 1-1/4" | 5/16" | SA204 | PP204ST | 0.53 |
| SAPP204-12 | 3/4" | 1" | 4-1/8" | 2-63/64" | 31/32" | 13/32" | 1/2" | 2-3/32' | 5/32" | 1.220" | 0.276" | 1-1/4" | 5/16" | SA204-12 | PP204ST | 0.53 |
| SAPP205 | 25mm | 1-1/8" | 4-19/64" | 3-25/64" | 1-3/16" | 13/32" | 9/16" | 2-7/32" | 13/64" | 1.220" | 0.295" | 1-1/2" | 3/8" | SA205 | PP205ST | 0.73 |
| SAPP205-14 | 7/8" | 1-1/8" | 4-19/64" | 3-25/64" | 1-3/16" | 13/32" | 9/16" | 2-7/32" | 13/64" | 1.220" | 0.295" | 1-1/2" | 3/8" | SA205-14 | PP205ST | 0.73 |
| SAPP205-15 | 15/16" | 1-1/8" | 4-19/64" | 3-25/64" | 1-3/16" | 13/32" | 9/16" | 2-7/32" | 13/64" | 1.220" | 0.295" | 1-1/2" | 3/8" | SA205-15 | PP205ST | 0.73 |
| SAPP205-16 | 1" | 1-1/8" | 4-19/64" | 3-25/64" | 1-3/16" | 13/32" | 9/16" | 2-7/32" | 13/64" | 1.220" | 0.295" | 1-1/2" | 3/8" | SA205-16 | PP205ST | 0.73 |
| SAPP206 | 30mm | 1-5/16" | 4-7/8" | 3-3/4" | 1-1/4" | 13/32" | 9/16" | 2-5/8" | 15/64" | 1.406" | 0.315" | 1-3/64" | 3/8" | SA206 | PP206ST | 1.10 |
| SAPP206-17 | 1-1/16" | 1-5/16" | 4-7/8" | 3-3/4" | 1-1/4" | 13/32" | 9/16" | 2-5/8" | 15/64" | 1.406" | 0.315" | 1-3/64" | 3/8" | SA206-17 | PP206ST | 1.10 |
| SAPP206-18 | 1-1/8" | 1-5/16" | 4-7/8" | 3-3/4" | 1-1/4" | 13/32" | 9/16" | 2-5/8" | 15/64" | 1.406" | 0.315" | 1-3/64" | 3/8" | SA206-18 | PP206ST | 1.10 |
| SAPP206-19 | 1-3/16" | 1-5/16" | 4-7/8" | 3-3/4" | 1-1/4" | 13/32" | 9/16" | 2-5/8" | 15/64" | 1.406" | 0.315" | 1-3/64" | 3/8" | SA206-19 | PP206ST | 1.10 |
| SAPP206-20 | 1-1/4" | 1-5/16" | 4-7/8" | 3-3/4" | 1-1/4" | 13/32" | 9/16" | 2-5/8" | 15/64" | 1.406" | 0.315" | 1-3/64" | 3/8" | SA206-20 | PP206ST | 1.10 |
| SAPP207 | 35mm | 1-9/16" | 5-3/4" | 4-1/4" | 1-19/64" | 1/2" | 3/4" | 3-1/8" | 15/64" | 1.531" | 0.335" | 2-15/64" | 3/8" | SA207 | PP207ST | 1.65 |
| SAPP207-20 | 1-1/4" | 1-9/16" | 5-3/4" | 4-1/4" | 1-19/64" | 1/2" | 3/4" | 3-1/8" | 15/64" | 1.531" | 0.335" | 2-15/64" | 3/8" | SA207-20 | PP207ST | 1.65 |
| SAPP207-21 | 1-5/16" | 1-9/16" | 5-3/4" | 4-1/4" | 1-19/64" | 1/2" | 3/4" | 3-1/8" | 15/64" | 1.531" | 0.335" | 2-15/64" | 3/8" | SA207-21 | PP207ST | 1.65 |
| SAPP207-22 | 1-3/8" | 1-9/16" | 5-3/4" | 4-1/4" | 1-19/64" | 1/2" | 3/4" | 3-1/8" | 15/64" | 1.531" | 0.335" | 2-15/64" | 3/8" | SA207-22 | PP207ST | 1.65 |
| SAPP207-23 | 1-7/16" | 1-9/16" | 5-3/4" | 4-1/4" | 1-19/64" | 1/2" | 3/4" | 3-1/8" | 15/64" | 1.531" | 0.335" | 2-15/64" | 3/8" | SA207-23 | PP207ST | 1.65 |
SBRPP200 Pillow Block Bearings

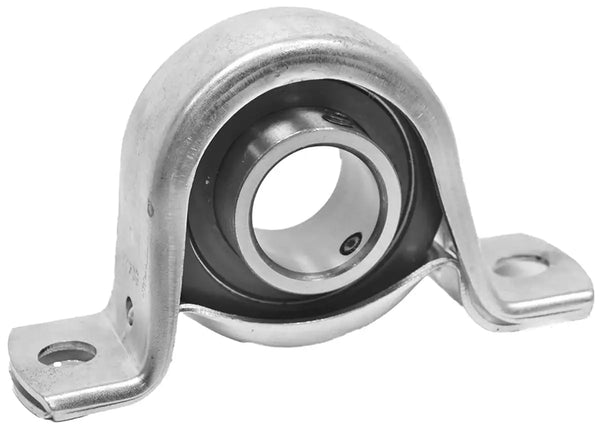

SBRPP200 bearings are light-duty stamped steel vibration-damping pillow block bearings that utilise two set screws for securing to a shaft. These bearings range in bore sizes 1/2" to 1-1/4"; for additional information or pricing, don't hesitate to get in touch with us!
|
Bearing Part #
|
Bearing I.D.
|
(h)
|
(a)
|
(e)
|
(b)
|
(S1)
|
(S2)
|
(g)
|
(w)
|
(Bi)
|
(n)
|
Bolt Size
|
Insert Bearing #
|
Housing #
|
Rubber #
|
Weight (LBS)
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SBRPP201-8 | 1/2" | 1" | 4-1/8" | 2-63/64" | 31/32" | 13/32" | 1/2" | 5/32" | 2-3/32" | 0.866" | 0.236" | 5/16" | SB201-8 | PP204ST | R-4 | 0.40 |
| SBRPP202-10 | 5/8" | 1" | 4-1/8" | 2-63/64" | 31/32" | 13/32" | 1/2" | 5/32" | 2-3/32" | 0.866" | 0.236" | 5/16" | SB202-10 | PP204ST | R-4 | 0.40 |
| SBRPP204 | 20mm | 1-1/8" | 4-9/16" | 3-25/64" | 1-3/16" | 13/32" | 9/16" | 13/64" | 2-7/32" | 0.984" | 0.276" | 3/8" | SB204 | PP205ST | R-5 | 0.55 |
| SBRPP204-12 | 3/4" | 1-1/8" | 4-9/16" | 3-25/64" | 1-3/16" | 13/32" | 9/16" | 13/64" | 2-7/32" | 0.984" | 0.276" | 3/8" | SB204-12 | PP205ST | R-5 | 0.55 |
| SBRPP205 | 25mm | 1-5/16" | 4-7/8" | 3-3/4" | 1-1/4" | 13/32" | 9/16" | 15/64" | 2-5/8" | 1.063" | 0.295" | 3/8" | SB205 | PP206ST | R-6 | 0.73 |
| SBRPP205-14 | 7/8" | 1-5/16" | 4-7/8" | 3-3/4" | 1-1/4" | 13/32" | 9/16" | 15/64" | 2-5/8" | 1.063" | 0.295" | 3/8" | SB205-14 | PP206ST | R-6 | 0.73 |
| SBRPP205-15 | 15/16" | 1-5/16" | 4-7/8" | 3-3/4" | 1-1/4" | 13/32" | 9/16" | 15/64" | 2-5/8" | 1.063" | 0.295" | 3/8" | SB205-15 | PP206ST | R-6 | 0.73 |
| SBRPP205-16 | 1" | 1-5/16" | 4-7/8" | 3-3/4" | 1-1/4" | 13/32" | 9/16" | 15/64" | 2-5/8" | 1.063" | 0.295" | 3/8" | SB205-16 | PP206ST | R-6 | 0.73 |
| SBRPP206 | 30mm | 1-9/16" | 5-3/4" | 4-1/4" | 1-19/64" | 1/2" | 3/4" | 15/64" | 3-1/8" | 1.181" | 0.315" | 3/8" | SB206 | PP207ST | R-7 | 1.06 |
| SBRPP206-17 | 1-1/16" | 1-9/16" | 5-3/4" | 4-1/4" | 1-19/64" | 1/2" | 3/4" | 15/64" | 3-1/8" | 1.181" | 0.315" | 3/8" | SB206-17 | PP207ST | R-7 | 1.06 |
| SBRPP206-18 | 1-1/8" | 1-9/16" | 5-3/4" | 4-1/4" | 1-19/64" | 1/2" | 3/4" | 15/64" | 3-1/8" | 1.181" | 0.315" | 3/8" | SB206-18 | PP207ST | R-7 | 1.06 |
| SBRPP206-19 | 1-3/16" | 1-9/16" | 5-3/4" | 4-1/4" | 1-19/64" | 1/2" | 3/4" | 15/64" | 3-1/8" | 1.181" | 0.315" | 3/8" | SB206-19 | PP207ST | R-7 | 1.06 |
| SBRPP206-20 | 1-1/4" | 1-9/16" | 5-3/4" | 4-1/4" | 1-19/64" | 1/2" | 3/4" | 15/64" | 3-1/8" | 1.181" | 0.315" | 3/8" | SB206-20 | PP207ST | R-7 | 1.06 |
SARPP200 Pillow Block Bearings
SARPP200 bearings are light-duty stamped steel vibration-damping pillow block bearings that utilise an eccentric locking collar for securing to a shaft. These bearings range in bore sizes 1/2" to 1-1/4"; for additional information or pricing, don't hesitate to get in touch with us!
|
Bearing Part #
|
Bearing I.D.
|
(h)
|
(a)
|
(e)
|
(b)
|
(S1)
|
(S2)
|
(g)
|
(w)
|
(L)
|
(n)
|
(W)
|
Bolt Size
|
Insert Bearing #
|
Housing #
|
Rubber #
|
Weight (LBS)
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SARPP201-8 | 1/2" | 1" | 4-1/8" | 2-63/64" | 31/32" | 13/32" | 1/2" | 0.157" | 2-3/32" | 1.220" | 0.236" | 1-1/8" | 5/16" | SA201-8 | PP204ST | R-4 | 0.44 |
| SARPP202-10 | 5/8" | 1" | 4-1/8" | 2-63/64" | 31/32" | 13/32" | 1/2" | 0.157" | 2-3/32" | 1.220" | 0.236" | 1-1/8" | 5/16" | SA202-10 | PP204ST | R-4 | 0.44 |
| SARPP204 | 20mm | 1-1/8" | 4-19/64" | 3-25/64" | 1-3/16" | 13/32" | 9/16" | 0.197" | 2-7/32" | 1.220" | 0.276" | 1-1/4" | 3/8" | SA204 | PP205ST | R-5 | 0.66 |
| SARPP204-12 | 3/4" | 1-1/8" | 4-19/64" | 3-25/64" | 1-3/16" | 13/32" | 9/16" | 0.197" | 2-7/32" | 1.220" | 0.276" | 1-1/4" | 3/8" | SA204-12 | PP205ST | R-5 | 0.66 |
| SARPP205 | 25mm | 1-5/16" | 4-7/8" | 3-3/4" | 1-1/4" | 13/32" | 9/16" | 1/4" | 2-5/8" | 1.406" | 0.295" | 1-1/2" | 3/8" | SA205 | PP206ST | R-6 | 1.10 |
| SARPP205-14 | 7/8" | 1-5/16" | 4-7/8" | 3-3/4" | 1-1/4" | 13/32" | 9/16" | 1/4" | 2-5/8" | 1.406" | 0.295" | 1-1/2" | 3/8" | SA205-14 | PP206ST | R-6 | 1.10 |
| SARPP205-15 | 15/16" | 1-5/16" | 4-7/8" | 3-3/4" | 1-1/4" | 13/32" | 9/16" | 1/4" | 2-5/8" | 1.406" | 0.295" | 1-1/2" | 3/8" | SA205-15 | PP206ST | R-6 | 1.10 |
| SARPP205-16 | 1" | 1-5/16" | 4-7/8" | 3-3/4" | 1-1/4" | 13/32" | 9/16" | 1/4" | 2-5/8" | 1.406" | 0.295" | 1-1/2" | 3/8" | SA205-16 | PP206ST | R-6 | 1.10 |
| SARPP206 | 30mm | 1-9/16" | 5-3/4" | 4-1/4" | 1-19/64" | 1/2" | 3/4" | 1/4" | 3-1/8" | 1.531" | 0.315" | 1-3/4" | 3/8" | SA206 | PP207ST | R-7 | 1.54 |
| SARPP206-17 | 1-1/16" | 1-9/16" | 5-3/4" | 4-1/4" | 1-19/64" | 1/2" | 3/4" | 1/4" | 3-1/8" | 1.531" | 0.315" | 1-3/4" | 3/8" | SA206-17 | PP207ST | R-7 | 1.54 |
| SARPP206-18 | 1-1/8" | 1-9/16" | 5-3/4" | 4-1/4" | 1-19/64" | 1/2" | 3/4" | 1/4" | 3-1/8" | 1.531" | 0.315" | 1-3/4" | 3/8" | SA206-18 | PP207ST | R-7 | 1.54 |
| SARPP206-19 | 1-3/16" | 1-9/16" | 5-3/4" | 4-1/4" | 1-19/64" | 1/2" | 3/4" | 1/4" | 3-1/8" | 1.531" | 0.315" | 1-3/4" | 3/8" | SA206-19 | PP207ST | R-7 | 1.54 |
| SARPP206-20 | 1-1/4" | 1-9/16" | 5-3/4" | 4-1/4" | 1-19/64" | 1/2" | 3/4" | 1/4" | 3-1/8" | 1.531" | 0.315" | 1-3/4" | 3/8" | SA206-20 | PP207ST | R-7 | 1.54 |
