Stainless Steel Hanger Bearings
Stainless steel hanger bearings are designed to support a shaft and are found in a wide range of industrial applications, including screw conveyors. Being made from stainless means that these bearings can operate in highly abrasive and corrosive environments within a broad temperature spectrum. The bearings are also classified as food-grade and come with premium food-grade grease for food processing applications. We offer these bearings with various shaft locking options such as; set screws, eccentric locking collar, concentric locking collar, and with a wide inner ring. For additional information or to get a quote on our premium stainless steel hanger bearings, contact our customer support team, and we will be happy to assist you!

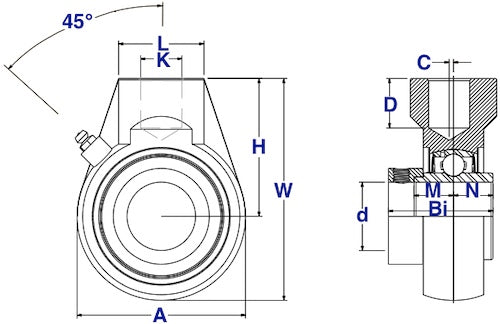

Stainless Steel Hanger Bearing Sizes
SUCSHAM 200 Normal Duty Stainless Steel Hanger Bearing With Set Screws
|
Bearing #
|
Shaft Diameter (d)
|
(A)
|
(W)
|
(C)
|
(H)
|
(L)
|
(D)
|
(K)
|
(Bi)
|
(N)
|
(M)
|
Dynamic Load Rating (LBS)
|
Static Load Rating (LBS)
|
Bearing Insert
|
Housing Number
|
Weight (LBS)
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SUCSHAM 201 | 12mm | 2.52" | 3.78" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.2205" | 0.5000" | 0.7205" | 2,331 | 1,142 | SUC 201 | SHAM 204 | 1.8 |
| SUCSHAM 201-8 | 1/2" | 2.52" | 3.78" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.2205" | 0.5000" | 0.7205" | 2,331 | 1,142 | SUC 201-8 | SHAM 204 | 1.8 |
| SUCSHAM 202 | 15mm | 2.52" | 3.78" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.2205" | 0.5000" | 0.7205" | 2,331 | 1,142 | SUC 202 | SHAM 204 | 1.8 |
| SUCSHAM 202-10 | 5/8" | 2.52" | 3.78" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.2205" | 0.5000" | 0.7205" | 2,331 | 1,142 | SUC 202-10 | SHAM 204 | 1.8 |
| SUCSHAM 203 | 17mm | 2.52" | 3.78" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.2205" | 0.5000" | 0.7205" | 2,331 | 1,142 | SUC 203 | SHAM 204 | 1.8 |
| SUCSHAM 204-12 | 3/4" | 2.52" | 3.78" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.2205" | 0.5000" | 0.7205" | 2,331 | 1,142 | SUC 204-12 | SHAM 204 | 1.8 |
| SUCSHAM 204 | 20mm | 2.52" | 3.78" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.2205" | 0.5000" | 0.7205" | 2,331 | 1,142 | SUC 204 | SHAM 204 | 1.8 |
| SUCSHAM 205-14 | 7/8" | 3.07" | 4.06" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.3425" | 0.5630" | 0.7795" | 2,542 | 1,349 | SUC 205-14 | SHAM 205 | 2.0 |
| SUCSHAM 205-15 | 15/16" | 3.07" | 4.06" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.3425" | 0.5630" | 0.7795" | 2,542 | 1,349 | SUC 205-15 | SHAM 205 | 2.0 |
| SUCSHAM 205 | 25mm | 3.07" | 4.06" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.3425" | 0.5630" | 0.7795" | 2,542 | 1,349 | SUC 205 | SHAM 205 | 2.0 |
| SUCSHAM 205-16 | 1mm | 3.07" | 4.06" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.3425" | 0.5630" | 0.7795" | 2,542 | 1,349 | SUC 205-16 | SHAM 205 | 2.0 |
| SUCSHAM 206-17 | 1-1/16" | 3.07" | 4.06" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.5000" | 0.6260" | 0.8740" | 3,554 | 1,942 | SUC 206-17 | SHAM 206 | 2.0 |
| SUCSHAM 206-18 | 1-1/8" | 3.07" | 4.06" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.5000" | 0.6260" | 0.8740" | 3,554 | 1,942 | SUC 206-18 | SHAM 206 | 2.0 |
| SUCSHAM 206 | 30mm | 3.07" | 4.06" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.5000" | 0.6260" | 0.8740" | 3,554 | 1,942 | SUC 206 | SHAM 206 | 2.0 |
| SUCSHAM 206-19 | 1-3/16" | 3.07" | 4.06" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.5000" | 0.6260" | 0.8740" | 3,554 | 1,942 | SUC 206-19 | SHAM 206 | 2.0 |
| SUCSHAM 206-20 | 1-1/4" | 3.07" | 4.06" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.5000" | 0.6260" | 0.8740" | 3,554 | 1,942 | SUC 206-20 | SHAM 206 | 2.0 |
| SUCSHAM 207-20 | 1-1/4" | 3.62" | 4.57" | 0.00" | 2.76" | 1.57" | 0.75" | PF 3/4" | 1.6890" | 0.6890" | 1.0000" | 4,683 | 2,626 | SUC 207-20 | SHAM 207 | 2.6 |
| SUCSHAM 207-21 | 1-5/16" | 3.62" | 4.57" | 0.00" | 2.76" | 1.57" | 0.75" | PF 3/4" | 1.6890" | 0.6890" | 1.0000" | 4,683 | 2,626 | SUC 207-21 | SHAM 207 | 2.6 |
| SUCSHAM 207-22 | 1-3/8" | 3.62" | 4.57" | 0.00" | 2.76" | 1.57" | 0.75" | PF 3/4" | 1.6890" | 0.6890" | 1.0000" | 4,683 | 2,626 | SUC 207-22 | SHAM 207 | 2.6 |
| SUCSHAM 207-23 | 1-7/16" | 3.62" | 4.57" | 0.00" | 2.76" | 1.57" | 0.75" | PF 3/4" | 1.6890" | 0.6890" | 1.0000" | 4,683 | 2,626 | SUC 207-23 | SHAM 207 | 2.6 |
| SUCSHAM 208-24 | 1-1/2" | 3.78" | 4.76" | 0.08" | 2.87" | 1.57" | 0.75" | PF 3/4" | 1.9370" | 0.7480" | 1.1890" | 5,294 | 3,057 | SUC 208-24 | SHAM 208 | 3.3 |
| SUCSHAM 208-25 | 1-9/16" | 3.78" | 4.76" | 0.08" | 2.87" | 1.57" | 0.75" | PF 3/4" | 1.9370" | 0.7480" | 1.1890" | 5,294 | 3,057 | SUC 208-25 | SHAM 208 | 3.3 |
| SUCSHAM 208 | 40mm | 3.78" | 4.76" | 0.08" | 2.87" | 1.57" | 0.75" | PF 3/4" | 1.9370" | 0.7480" | 1.1890" | 5,294 | 3,057 | SUC 208 | SHAM 208 | 3.3 |
| SUCSHAM 209-26 | 1-5/8" | 4.25" | 5.35" | 0.20" | 3.23" | 1.89" | 0.83" | PF1 | 1.9370" | 0.7480" | 1.1890" | 5,923 | 3,507 | SUC 209-26 | SHAM 209 | 4.0 |
| SUCSHAM 209-27 | 1-11/16" | 4.25" | 5.35" | 0.20" | 3.23" | 1.89" | 0.83" | PF1 | 1.9370" | 0.7480" | 1.1890" | 5,923 | 3,507 | SUC 209-27 | SHAM 209 | 4.0 |
| SUCSHAM 209-28 | 1-3/4" | 4.25" | 5.35" | 0.20" | 3.23" | 1.89" | 0.83" | PF1 | 1.9370" | 0.7480" | 1.1890" | 5,923 | 3,507 | SUC 209-28 | SHAM 209 | 4.0 |
| SUCSHAM 209 | 45mm | 4.25" | 5.35" | 0.20" | 3.23" | 1.89" | 0.83" | PF1 | 1.9370" | 0.7480" | 1.1890" | 5,923 | 3,507 | SUC 209 | SHAM 209 | 4.0 |
| SUCSHAM 210-30 | 1-7/8" | 4.65" | 5.59" | 0.20" | 3.27" | 1.89" | 0.83" | PF1 | 2.0315" | 0.7480" | 1.2835" | 6,402 | 4,046 | SUC 210-30 | SHAM 210 | 4.6 |
| SUCSHAM 210-31 | 1-15/16" | 4.65" | 5.59" | 0.20" | 3.27" | 1.89" | 0.83" | PF1 | 2.0315" | 0.7480" | 1.2835" | 6,402 | 4,046 | SUC 210-31 | SHAM 210 | 4.6 |
| SUCSHAM 210 | 50mm | 4.65" | 5.59" | 0.20" | 3.27" | 1.89" | 0.83" | PF1 | 2.0315" | 0.7480" | 1.2835" | 6,402 | 4,046 | SUC 210 | SHAM 210 | 4.6 |
| SUCSHAM 210-32 | 2mm | 4.65" | 5.59" | 0.20" | 3.27" | 1.89" | 0.83" | PF1 | 2.0315" | 0.7480" | 1.2835" | 6,402 | 4,046 | SUC 210-32 | SHAM 210 | 4.6 |
| SUCSHAM 211-32 | 2mm | 4.96" | 6.22" | 0.28" | 3.74" | 2.36" | 0.98" | PF1 1/4" | 2.1890" | 0.8740" | 1.3150" | 7,931 | 5,036 | SUC 211-32 | SHAM 211 | 7.3 |
| SUCSHAM 211-34 | 2-1/8" | 4.96" | 6.22" | 0.28" | 3.74" | 2.36" | 0.98" | PF1 1/4" | 2.1890" | 0.8740" | 1.3150" | 7,931 | 5,036 | SUC 211-34 | SHAM 211 | 7.3 |
| SUCSHAM 211 | 55mm | 4.96" | 6.22" | 0.28" | 3.74" | 2.36" | 0.98" | PF1 1/4" | 2.1890" | 0.8740" | 1.3150" | 7,931 | 5,036 | SUC 211 | SHAM 211 | 7.3 |
| SUCSHAM 211-35 | 2-3/16" | 4.96" | 6.22" | 0.28" | 3.74" | 2.36" | 0.98" | PF1 1/4" | 2.1890" | 0.8740" | 1.3150" | 7,931 | 5,036 | SUC 211-35 | SHAM 211 | 7.3 |
| SUCSHAM 212-36 | 2-1/4" | 5.59" | 6.81" | 0.35" | 4.02" | 2.36" | 1.10" | PF1 1/4" | 2.5630" | 1.0000" | 1.5630" | 9,554 | 5,921 | SUC 212-36 | SHAM 212 |
8.1 |
| SUCSHAM 212 | 60mm | 5.59" | 6.81" | 0.35" | 4.02" | 2.36" | 1.10" | PF1 1/4" | 2.5630" | 1.0000" | 1.5630" | 9,554 | 5,921 | SUC 212 | SHAM 212 | 8.1 |
| SUCSHAM 212-38 | 2-3/8" | 5.59" | 6.81" | 0.35" | 4.02" | 2.36" | 1.10" | PF1 1/4" | 2.5630" | 1.0000" | 1.5630" | 9,554 | 5,921 | SUC 212-38 | SHAM 212 | 8.1 |
| SUCSHAM 212-39 | 2-7/16" | 5.59" | 6.81" | 0.35" | 4.02" | 2.36" | 1.10" | PF1 1/4" | 2.5630" | 1.0000" | 1.5630" | 9,554 | 5,921 | SUC 212-39 | SHAM 212 | 8.1 |
|
Bearing #
|
Shaft Diameter (d)
|
(A)
|
(W)
|
(C)
|
(H)
|
(L)
|
(D)
|
(K)
|
(Bi)
|
(N)
|
(M)
|
Dynamic Load Rating (LBS)
|
Static Load Rating (LBS)
|
Bearing Insert
|
Housing Number
|
Weight (LBS)
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SNCSHAM 201-8 | 1/2" | 2.52" | 3.78" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.5472" | 0.5000" | 0.6732" | 2,331 | 1,142 | SNC 201-8 | SHAM 204 | 2.0 |
| SNCSHAM 202-10 | 5/8" | 2.52" | 3.78" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.5472" | 0.5000" | 0.6732" | 2,331 | 1,142 | SNC 202-10 | SHAM 204 | 2.0 |
| SNCSHAM 204-12 | 3/4" | 2.52" | 3.78" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.5472" | 0.5000" | 0.6732" | 2,331 | 1,142 | SNC 204-12 | SHAM 204 | 2.0 |
| SNCSHAM 204 | 20mm | 2.52" | 3.78" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.5472" | 0.5000" | 0.6732" | 2,331 | 1,142 | SNC 204 | SHAM 204 | 2.0 |
| SNCSHAM 205-14 | 7/8" | 3.07" | 4.06" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.6220" | 0.5630" | 0.6850" | 2,542 | 1,349 | SNC 205-14 | SHAM 205 | 2.2 |
| SNCSHAM 205-15 | 15/16" | 3.07" | 4.06" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.6220" | 0.5630" | 0.6850" | 2,542 | 1,349 | SNC 205-15 | SHAM 205 | 2.2 |
| SNCSHAM 205 | 25mm | 3.07" | 4.06" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.6220" | 0.5630" | 0.6850" | 2,542 | 1,349 | SNC 205 | SHAM 205 | 2.2 |
| SNCSHAM 205-16 | 1" | 3.07" | 4.06" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.6220" | 0.5630" | 0.6850" | 2,542 | 1,349 | SNC 205-16 | SHAM 205 | 2.2 |
| SNCSHAM 206-17 | 1-1/16" | 3.07" | 4.06" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.8110" | 0.6260" | 0.7165" | 3,554 | 1,942 | SNC 206-17 | SHAM 206 | 2.3 |
| SNCSHAM 206-18 | 1-1/8" | 3.07" | 4.06" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.8110" | 0.6260" | 0.7165" | 3,554 | 1,942 | SNC 206-18 | SHAM 206 | 2.3 |
| SNCSHAM 206 | 30mm | 3.07" | 4.06" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.8110" | 0.6260" | 0.7165" | 3,554 | 1,942 | SNC 206 | SHAM 206 | 2.3 |
| SNCSHAM 206-19 | 1-3/16" | 3.07" | 4.06" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.8110" | 0.6260" | 0.7165" | 3,554 | 1,942 | SNC 206-19 | SHAM 206 | 2.3 |
| SNCSHAM 206-20 | 1-1/4" | 3.07" | 4.06" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.8110" | 0.6260" | 0.7165" | 3,554 | 1,942 | SNC 206-20 | SHAM 206 | 2.3 |
| SNCSHAM 207-20 | 1-1/4" | 3.62" | 4.57" | 0.00" | 2.76" | 1.57" | 0.75" | PF 3/4" | 1.9606" | 0.6890" | 0.7402" | 4,683 | 2,626 | SNC 207-20 | SHAM 207 | 2.9 |
| SNCSHAM 207-21 | 1-5/16" | 3.62" | 4.57" | 0.00" | 2.76" | 1.57" | 0.75" | PF 3/4" | 1.9606" | 0.6890" | 0.7402" | 4,683 | 2,626 | SNC 207-21 | SHAM 207 | 2.9 |
| SNCSHAM 207-22 | 1-3/8" | 3.62" | 4.57" | 0.00" | 2.76" | 1.57" | 0.75" | PF 3/4" | 1.9606" | 0.6890" | 0.7402" | 4,683 | 2,626 | SNC 207-22 | SHAM 207 | 2.9 |
| SNCSHAM 207 | 35mm | 3.62" | 4.57" | 0.00" | 2.76" | 1.57" | 0.75" | PF 3/4" | 1.9606" | 0.6890" | 0.7402" | 4,683 | 2,626 | SNC 207 | SHAM 207 | 2.9 |
| SNCSHAM 207-23 | 1-7/16" | 3.62" | 4.57" | 0.00" | 2.76" | 1.57" | 0.75" | PF 3/4" | 1.9606" | 0.6890" | 0.7402" | 4,683 | 2,626 | SNC 207-23 | SHAM 207 | 2.9 |
| SNCSHAM 208-24 | 1-1/2" | 3.78" | 4.76" | 0.8" | 2.87" | 1.57" | 0.75" | PF 3/4" | 2.1220" | 0.7480" | 0.8425" | 5,294 | 3,057 | SNC 208-24 | SHAM 208 | 3.6 |
| SNCSHAM 208-25 | 1-9/16" | 3.78" | 4.76" | 0.8" | 2.87" | 1.57" | 0.75" | PF 3/4" | 2.1220" | 0.7480" | 0.8425" | 5,294 | 3,057 | SNC 208-25 | SHAM 208 | 3.6 |
| SNCSHAM 208 | 40mm | 3.78" | 4.76" | 0.8" | 2.87" | 1.57" | 0.75" | PF 3/4" | 2.1220" | 0.7480" | 0.8425" | 5,294 | 3,057 | SNC 208 | SHAM 208 | 3.6 |
| SNCSHAM 209-26 | 1-5/8" | 4.25" | 5.35" | 0.20" | 3.23" | 1.89" | 0.83" | PF1" | 2.1220" | 0.7480" | 0.8425" | 5,923 | 3,507 | SNC 209-26 | SHAM 209 | 4.2 |
| SNCSHAM 209-27 | 1-11/16" | 4.25" | 5.35" | 0.20" | 3.23" | 1.89" | 0.83" | PF1" | 2.1220" | 0.7480" | 0.8425" | 5,923 | 3,507 | SNC 209-27 | SHAM 209 | 4.2 |
| SNCSHAM 209-28 | 1-3/4" | 4.25" | 5.35" | 0.20" | 3.23" | 1.89" | 0.83" | PF1" | 2.1220" | 0.7480" | 0.8425" | 5,923 | 3,507 | SNC 209-28 | SHAM 209 | 4.2 |
| SNCSHAM 209 | 45mm | 4.25" | 5.35" | 0.20" | 3.23" | 1.89" | 0.83" | PF1" | 2.1220" | 0.7480" | 0.8425" | 5,923 | 3,507 | SNC 209 | SHAM 209 | 4.2 |
| SNCSHAM 210-30 | 1-7/8" | 4.65" | 5.59" | 0.20" | 3.27" | 1.89" | 0.83" | PF1" | 2.2480" | 0.7480" | 0.9685" | 6,402 | 4,046 | SNC 210-30 | SHAM 210 | 4.8 |
| SNCSHAM 210-31 | 1-15/16" | 4.65" | 5.59" | 0.20" | 3.27" | 1.89" | 0.83" | PF1" | 2.2480" | 0.7480" | 0.9685" | 6,402 | 4,046 | SNC 210-31 | SHAM 210 | 4.8 |
| SNCSHAM 210 | 50mm | 4.65" | 5.59" | 0.20" | 3.27" | 1.89" | 0.83" | PF1" | 2.2480" | 0.7480" | 0.9685" | 6,402 | 4,046 | SNC 210 | SHAM 210 | 4.8 |
| SNCSHAM 210-32 | 2" | 4.65" | 5.59" | 0.20" | 3.27" | 1.89" | 0.83" | PF1" | 2.2480" | 0.7480" | 0.9685" | 6,402 | 4,046 | SNC 210-32 | SHAM 210 | 4.8 |
| SNCSHAM 211-32 | 2" | 4.96" | 6.22" | 0.28" | 3.74" |
2.36" | 0.98" | PF 1/4" | 2.5906" | 0.8740" | 1.0906" | 7,931 | 5,036 | SNC 211-32 | SHAM 211 | 7.6 |
| SNCSHAM 211-34 | 2-1/8" | 4.96" | 6.22" | 0.28" | 3.74" | 2.36" | 0.98" | PF 1/4" | 2.5906" | 0.8740" | 1.0906" | 7,931 | 5,036 | SNC 211-34 | SHAM 211 | 7.6 |
| SNCSHAM 211 | 55mm | 4.96" | 6.22" | 0.28" | 3.74" | 2.36" | 0.98" | PF 1/4" | 2.5906" | 0.8740" | 1.0906" | 7,931 | 5,036 | SNC 211 | SHAM 211 | 7.6 |
| SNCSHAM 211-35 | 2-3/16" | 4.96" | 6.22" | 0.28" | 3.74" | 2.36" | 0.98" | PF 1/4" | 2.5906" | 0.8740" | 1.0906" | 7,931 | 5,036 | SNC 211-35 | SHAM 211 | 7.6 |
| SNCSHAM 212-36 | 2-1/4" | 5.59" | 6.81" | 0.35" | 4.02" | 2.36" | 1.10" | PF 1/4" | 2.8425" | 1.0000" | 1.2165" | 9,554 | 5,921 | SNC 212-36 | SHAM 212 | 8.6 |
| SNCSHAM 212 | 60mm | 5.59" | 6.81" | 0.35" | 4.02" | 2.36" | 1.10" | PF 1/4" | 2.8425" | 1.0000" | 1.2165" | 9,554 | 5,921 | SNC 212 | SHAM 212 | 8.6 |
| SNCSHAM 212-38 | 2-3/8" | 5.59" | 6.81" | 0.35" | 4.02" | 2.36" | 1.10" | PF 1/4" | 2.8425" | 1.0000" | 1.2165" | 9,554 | 5,921 | SNC 212-38 | SHAM 212 | 8.6 |
| SNCSHAM 212-39 | 2-7/16" | 5.59" | 6.81" | 0.35" | 4.02" | 2.36" | 1.10" | PF 1/4" | 2.8425" | 1.0000" | 1.2165" | 9,554 | 5,921 | SNC 212-39 | SHAM 212 | 8.6 |
|
Bearing #
|
Shaft Diameter (d)
|
(A)
|
(W)
|
(C)
|
(H)
|
(L)
|
(D)
|
(K)
|
(Bi)
|
(N)
|
(M)
|
Dynamic Load Rating (LBS)
|
Static Load Rating (LBS)
|
Bearing Insert
|
Housing Number
|
Weight (LBS)
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SHCSHAM 204-12 | 3/4" | 2.52" | 3.78" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.7205" | 0.6732" | 0.6732" | 2,331 | 1,142 | SHC 204-12 | SHAM 204 | 2.0 |
| SHCSHAM 204 | 20mm | 2.52" | 3.78" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.7205" | 0.6732" | 0.6732" | 2,331 | 1,142 | SHC 204 | SHAM 204 | 2.0 |
| SHCSHAM 205-14 | 7/8" | 3.07" | 4.06" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.7480" | 0.6890" | 0.6850" | 2,542 | 1,349 | SHC 205-14 | SHAM 205 | 2.2 |
| SHCSHAM 205-15 | 15/16" | 3.07" | 4.06" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.7480" | 0.6890" | 0.6850" | 2,542 | 1,349 | SHC 205-15 | SHAM 205 | 2.2 |
| SHCSHAM 205 | 25mm | 3.07" | 4.06" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.7480" | 0.6890" | 0.6850" | 2,542 | 1,349 | SHC 205 | SHAM 205 | 2.2 |
| SHCSHAM 205-16 | 1" | 3.07" | 4.06" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.7480" | 0.6890" | 0.6850" | 2,542 | 1,349 | SHC 205-16 | SHAM 205 | 2.2 |
| SHCSHAM 206-17 | 1-1/16" | 3.07" | 4.06" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.9055" | 0.7205" | 0.7165" | 3,554 | 1,942 | SHC 206-17 | SHAM 206 | 2.3 |
| SHCSHAM 206-18 | 1-1/8" | 3.07" | 4.06" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.9055" | 0.7205" | 0.7165" | 3,554 | 1,942 | SHC 206-18 | SHAM 206 | 2.3 |
| SHCSHAM 206 | 30mm | 3.07" | 4.06" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.9055" | 0.7205" | 0.7165" | 3,554 | 1,942 | SHC 206 | SHAM 206 | 2.3 |
| SHCSHAM 206-19 | 1-3/16" | 3.07" | 4.06" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.9055" | 0.7205" | 0.7165" | 3,554 | 1,942 | SHC 206-19 | SHAM 206 | 2.3 |
| SHCSHAM 206-20 | 1-1/4" | 3.07" | 4.06" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.9055" | 0.7205" | 0.7165" | 3,554 | 1,942 | SHC 206-20 | SHAM 206 | 2.3 |
| SHCSHAM 207-20 | 1-1/4" | 3.62" | 4.57" | 0.00" | 2.76" | 1.57" | 0.75" | PF 3/4" | 2.0118" | 0.7402" | 0.7402" | 4,683 | 2,626 | SHC 207-20 | SHAM 207 | 2.9 |
| SHCSHAM 207-21 | 1-5/16" | 3.62" | 4.57" | 0.00" | 2.76" | 1.57" | 0.75" | PF 3/4" | 2.0118" | 0.7402" | 0.7402" | 4,683 | 2,626 | SHC 207-21 | SHAM 207 | 2.9 |
| SHCSHAM 207-22 | 1-3/8" | 3.62" | 4.57" | 0.00" | 2.76" | 1.57" | 0.75" | PF 3/4" | 2.0118" | 0.7402" | 0.7402" | 4,683 | 2,626 | SHC 207-22 | SHAM 207 | 2.9 |
| SHCSHAM 207 | 35mm | 3.62" | 4.57" | 0.00" | 2.76" | 1.57" | 0.75" | PF 3/4" | 2.0118" | 0.7402" | 0.7402" | 4,683 | 2,626 | SHC 207 | SHAM 207 | 2.9 |
| SHCSHAM 207-23 | 1-7/16" | 3.62" | 4.57" | 0.00" | 2.76" | 1.57" | 0.75" | PF 3/4" | 2.0118" | 0.7402" | 0.7402" | 4,683 | 2,626 | SHC 207-23 | SHAM 207 | 2.9 |
| SHCSHAM 208-24 | 1-1/2" | 3.78" | 4.76" | 0.08" | 2.87" | 1.57" | 0.75" | PF 3/4" | 2.2165" | 0.8425" | 0.8425" | 5,294 | 3,057 | SHC 208-24 | SHAM 208 | 3.6 |
| SHCSHAM 208-25 | 1-9/16" | 3.78" | 4.76" | 0.08" | 2.87" | 1.57" | 0.75" | PF 3/4" | 2.2165" | 0.8425" | 0.8425" | 5,294 | 3,057 | SHC 208-25 | SHAM 208 | 3.6 |
| SHCSHAM 208 | 40mm | 3.78" | 4.76" | 0.08" | 2.87" | 1.57" | 0.75" | PF 3/4" | 2.2165" | 0.8425" | 0.8425" | 5,294 | 3,057 | SHC 208 | SHAM 208 | 3.6 |
| SHCSHAM 209-26 | 1-5/8" | 4.25" | 5.35" | 0.20" | 3.23" | 1.89" | 0.83" | PF1" | 2.2165" | 0.8425" | 0.8425" | 5,923 | 3,507 | SHC 209-26 | SHAM 209 | 4.2 |
| SHCSHAM 209-27 | 1-11/16" | 4.25" | 5.35" | 0.20" | 3.23" | 1.89" | 0.83" | PF1" | 2.2165" | 0.8425" | 0.8425" | 5,923 | 3,507 | SHC 209-27 | SHAM 209 | 4.2 |
| SHCSHAM 209-28 | 1-3/4" | 4.25" | 5.35" | 0.20" | 3.23" | 1.89" | 0.83" | PF1" | 2.2165" | 0.8425" | 0.8425" | 5,923 | 3,507 | SHC 209-28 | SHAM 209 | 4.2 |
| SHCSHAM 209 | 45mm | 4.25" | 5.35" | 0.20" | 3.23" | 1.89" | 0.83" | PF1" | 2.2165" | 0.8425" | 0.8425" | 5,923 | 3,507 | SHC 209 | SHAM 209 | 4.2 |
| SHCSHAM 210-30 | 1-7/8" | 4.65" | 5.59" | 0.20" | 3.27" | 1.89" | 0.83" | PF1" | 2.485" | 0.9685" | 0.9685" | 6,402 | 4,046 | SHC 210-30 | SHAM 210 | 4.8 |
| SHCSHAM 210-31 | 1-15/16" | 4.65" | 5.59" | 0.20" | 3.27" | 1.89" | 0.83" | PF1" | 2.485" | 0.9685" | 0.9685" | 6,402 | 4,046 | SHC 210-31 | SHAM 210 | 4.8 |
| SHCSHAM 210 | 50mm | 4.65" | 5.59" | 0.20" | 3.27" | 1.89" | 0.83" | PF1" | 2.485" | 0.9685" | 0.9685" | 6,402 | 4,046 | SHC 210 | SHAM 210 | 4.8 |
| SHCSHAM 210-32 | 2" | 4.65" | 5.59" | 0.20" | 3.27" | 1.89" | 0.83" | PF1" | 2.485" | 0.9685" | 0.9685" | 6,402 | 4,046 | SHC 210-32 | SHAM 210 | 4.8 |
| SHCSHAM 211-32 | 2" | 4.96" | 6.22" | 0.28" | 3.74" | 2.36" | 0.98" | PF1 1/4" | 2.8110" | 1.0945" | 1.0906" | 7,931 | 5,036 | SHC 211-32 | SHAM 211 | 7.6 |
| SHCSHAM 211-34 | 2-1/8" | 4.96" | 6.22" | 0.28" | 3.74" | 2.36" | 0.98" | PF1 1/4" | 2.8110" | 1.0945" | 1.0906" | 7,931 | 5,036 | SHC 211-34 | SHAM 211 | 7.6 |
| SHCSHAM 211 | 55mm | 4.96" | 6.22" | 0.28" | 3.74" | 2.36" | 0.98" | PF1 1/4" | 2.8110" | 1.0945" | 1.0906" | 7,931 | 5,036 | SHC 211 | SHAM 211 | 7.6 |
| SHCSHAM 211-35 | 2-3/16" | 4.96" | 6.22" | 0.28" | 3.74" | 2.36" | 0.98" | PF1 1/4" | 2.8110" | 1.0945" | 1.0906" | 7,931 | 5,036 | SHC 211-35 | SHAM 211 | 7.6 |
| SHCSHAM 212-36 | 2-1/4" | 5.59" | 6.81" | 0.35" | 4.02" | 2.36" | 1.10" | PF1 1/4" | 3.0630" | 1.2205" | 1.2165" | 9,554 | 5,921 | SHC 212-36 | SHAM 212 | 8.6 |
| SHCSHAM 212 | 60mm | 5.59" | 6.81" | 0.35" | 4.02" | 2.36" | 1.10" | PF1 1/4" | 3.0630" | 1.2205" | 1.2165" | 9,554 | 5,921 | SHC 212 | SHAM 212 | 8.6 |
| SHCSHAM 212-38 | 2-3/8" | 5.59" | 6.81" | 0.35" | 4.02" | 2.36" | 1.10" | PF1 1/4" | 3.0630" | 1.2205" | 1.2165" | 9,554 | 5,921 | SHC 212-38 | SHAM 212 | 8.6 |
| SHCSHAM 212-39 | 2-7/16" | 5.59" | 6.81" | 0.35" | 4.02" | 2.36" | 1.10" | PF1 1/4" | 3.0630" | 1.2205" | 1.2165" | 9,554 | 5,921 | SHC 212-39 | SHAM 212 | 8.6 |
| Bearing # | Shaft Diameter (d) | (A) | (W) | (C) | (H) | (L) | (D) | (K) | (Bi) | (N) | (M) | Dynamic Load Rating (LBS) | Static Load Rating (LBS) | Bearing Insert | Housing Number | Weight (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SUESHAM 204-12 | 3/4" | 2.52" | 3.78" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.2992" | 0.5000" | 0.7205" | 2,331 | 1,142 | SUE 204-12 | SHAM 204 | 1.8 |
| SUESHAM 204 | 20mm | 2.52" | 3.78" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.2992" | 0.5000" | 0.7205" | 2,331 | 1,142 | SUE 204 | SHAM 204 | 1.8 |
| SUESHAM 205-14 | 7/8" | 3.07" | 4.06" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.3937" | 0.5630" | 0.7795" | 2,542 | 1,349 | SUE 205-14 | SHAM 205 | 2.0 |
| SUESHAM 205-15 | 15/16" | 3.07" | 4.06" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.3937" | 0.5630" | 0.7795" | 2,542 | 1,349 | SUE 205-15 | SHAM 205 | 2.0 |
| SUESHAM 205 | 25mm | 3.07" | 4.06" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.3937" | 0.5630" | 0.7795" | 2,542 | 1,349 | SUE 205 | SHAM 205 | 2.0 |
| SUESHAM 205-16 | 1" | 3.07" | 4.06" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.3937" | 0.5630" | 0.7795" | 2,542 | 1,349 | SUE 205-16 | SHAM 205 | 2.0 |
| SUESHAM 206-17 | 1-1/16" | 3.07" | 4.06" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.5669" | 0.6260" | 0.8740" | 3,554 | 1,942 | SUE 206-17 | SHAM 206 | 2.0 |
| SUESHAM 206-18 | 1-1/8" | 3.07" | 4.06" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.5669" | 0.6260" | 0.8740" | 3,554 | 1,942 | SUE 206-18 | SHAM 206 | 2.0 |
| SUESHAM 206 | 30mm | 3.07" | 4.06" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.5669" | 0.6260" | 0.8740" | 3,554 | 1,942 | SUE 206 | SHAM 206 | 2.0 |
| SUESHAM 206-19 | 1-3/16" | 3.07" | 4.06" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.5669" | 0.6260" | 0.8740" | 3,554 | 1,942 | SUE 206-19 | SHAM 206 | 2.0 |
| SUESHAM 206-20 | 1-1/4" | 3.07" | 4.06" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.5669" | 0.6260" | 0.8740" | 3,554 | 1,942 | SUE 206-20 | SHAM 206 | 2.0 |
| SUESHAM 207-20 | 1-1/4" | 3.62" | 4.57" | 0.00" | 2.76" | 1.57" | 0.75" | PF 3/4" | 1.7283" | 0.6890" | 0.6890" | 4,683 | 2,626 | SUE 207-20 | SHAM 207 | 2.6 |
| SUESHAM 207-21 | 1-5/16" | 3.62" | 4.57" | 0.00" | 2.76" | 1.57" | 0.75" | PF 3/4" | 1.7283" | 0.6890" | 0.6890" | 4,683 | 2,626 | SUE 207-21 | SHAM 207 | 2.6 |
| SUESHAM 207-22 | 1-3/8" | 3.62" | 4.57" | 0.00" | 2.76" | 1.57" | 0.75" | PF 3/4" | 1.7283" | 0.6890" | 0.6890" | 4,683 | 2,626 | SUE 207-22 | SHAM 207 | 2.6 |
| SUESHAM 207 | 35mm | 3.62" | 4.57" | 0.00" | 2.76" | 1.57" | 0.75" | PF 3/4" | 1.7283" | 0.6890" | 0.6890" | 4,683 | 2,626 | SUE 207 | SHAM 207 | 2.6 |
| SUESHAM 207-23 | 1-7/16" | 3.62" | 4.57" | 0.00" | 2.76" | 1.57" | 0.75" | PF 3/4" | 1.7283" | 0.6890" | 0.6890" | 4,683 | 2,626 | SUE 207-23 | SHAM 207 | 2.6 |
| SUESHAM 208-24 | 1-1/2" | 3.78" | 4.76" | 0.08" | 2.87" | 1.57" | 0.75" | PF 3/4" | 1.9764" | 0.7480" | 0.7480" | 5,294 | 3,057 | SUE 208-24 | SHAM 208 | 3.3 |
| SUESHAM 208-25 | 1-9/16" | 3.78" | 4.76" | 0.08" | 2.87" | 1.57" | 0.75" | PF 3/4" | 1.9764" | 0.7480" | 0.7480" | 5,294 | 3,057 | SUE 208-25 | SHAM 208 | 3.3 |
| SUESHAM 208 | 40mm | 3.78" | 4.76" | 0.08" | 2.87" | 1.57" | 0.75" | PF 3/4" | 1.9764" | 0.7480" | 0.7480" | 5,294 | 3,057 | SUE 208 | SHAM 208 | 3.3 |
| SUESHAM 209-26 | 1-5/8" | 4.25" | 5.35" | 0.20" | 3.23" | 1.89" | 0.83" | PF1" | 1.9764" | 0.7480" | 0.7480" | 5,923 | 3,507 | SUE 209-26 | SHAM 209 | 4.0 |
| SUESHAM 209-27 | 1-11/16" | 4.25" | 5.35" | 0.20" | 3.23" | 1.89" | 0.83" | PF1" | 1.9764" | 0.7480" | 0.7480" | 5,923 | 3,507 | SUE 209-27 | SHAM 209 | 4.0 |
| SUESHAM 209-28 | 1-3/4" | 4.25" | 5.35" | 0.20" | 3.23" | 1.89" | 0.83" | PF1" | 1.9764" | 0.7480" | 0.7480" | 5,923 | 3,507 | SUE 209-28 | SHAM 209 | 4.0 |
| SUESHAM 209 | 45mm | 4.25" | 5.35" | 0.20" | 3.23" | 1.89" | 0.83" | PF1" | 1.9764" | 0.7480" | 0.7480" | 5,923 | 3,507 | SUE 209 | SHAM 209 | 4.0 |
| SUESHAM 210-30 | 1-7/8" | 4.65" | 5.59" | 0.20" | 3.27" | 1.89" | 0.83" | PF1" | 2.0709" | 0.7480" | 0.7480" | 6,402 | 4,046 | SUE 210-30 | SHAM 210 | 4.6 |
| SUESHAM 210-31 | 1-15/16" | 4.65" | 5.59" | 0.20" | 3.27" | 1.89" | 0.83" | PF1" | 2.0709" | 0.7480" | 0.7480" | 6,402 | 4,046 | SUE 210-31 | SHAM 210 | 4.6 |
| SUESHAM 210 | 50mm | 4.65" | 5.59" | 0.20" | 3.27" | 1.89" | 0.83" | PF1" | 2.0709" | 0.7480" | 0.7480" | 6,402 | 4,046 | SUE 210 | SHAM 210 | 4.6 |
| SUESHAM 210-32 | 2" | 4.65" | 5.59" | 0.20" | 3.27" | 1.89" | 0.83" | PF1" | 2.0709" | 0.7480" | 0.7480" | 6,402 | 4,046 | SUE 210-32 | SHAM 210 | 4.6 |
| SUESHAM 211-32 | 2" | 4.96" | 6.22" | 0.28" | 3.74" | 2.36" | 0.98" | PF1 1/4" | 2.2283" | 0.8740" | 0.8740" | 7,931 | 5,036 | SUE 211-32 | SHAM 211 | 7.3 |
| SUESHAM 211-34 | 2-1/8" | 4.96" | 6.22" | 0.28" | 3.74" | 2.36" | 0.98" | PF1 1/4" | 2.2283" | 0.8740" | 0.8740" | 7,931 | 5,036 | SUE 211-34 | SHAM 211 | 7.3 |
| SUESHAM 211 | 55mm | 4.96" | 6.22" | 0.28" | 3.74" | 2.36" | 0.98" | PF1 1/4" | 2.2283" | 0.8740" | 0.8740" | 7,931 | 5,036 | SUE 211 | SHAM 211 | 7.3 |
| SUESHAM 211-35 | 2-3/16" | 4.96" | 6.22" | 0.28" | 3.74" | 2.36" | 0.98" | PF1 1/4" | 2.2283" | 0.8740" | 0.8740" | 7,931 | 5,036 | SUE 211-35 | SHAM 211 | 7.3 |
| SUESHAM 212-36 | 2-1/4" | 5.59" | 6.81" | 0.35" | 4.02" | 2.36" | 1.10" | PF1 1/4" | 2.6220" | 1.0000" | 1.0000" | 9,554 | 5,921 | SUE 212-36 | SHAM 212 | 8.1 |
| SUESHAM 212 | 60mm | 5.59" | 6.81" | 0.35" | 4.02" | 2.36" | 1.10" | PF1 1/4" | 2.6220" | 1.0000" | 1.0000" | 9,554 | 5,921 | SUE 212 | SHAM 212 | 8.1 |
| SUESHAM 212-38 | 2-3/8" | 5.59" | 6.81" | 0.35" | 4.02" | 2.36" | 1.10" | PF1 1/4" | 2.6220" | 1.0000" | 1.0000" | 9,554 | 5,921 | SUE 212-38 | SHAM 212 | 8.1 |
| SUESHAM 212-39 | 2-7/16" | 5.59" | 6.81" | 0.35" | 4.02" | 2.36" | 1.10" | PF1 1/4" | 2.6220" | 1.0000" | 1.0000" | 9,554 | 5,921 | SUE 212-39 | SHAM 212 | 8.1 |
