Roller Chain > More Roller Chains > British Standard Metric Roller Chain > Single Strand Metric Roller Chain

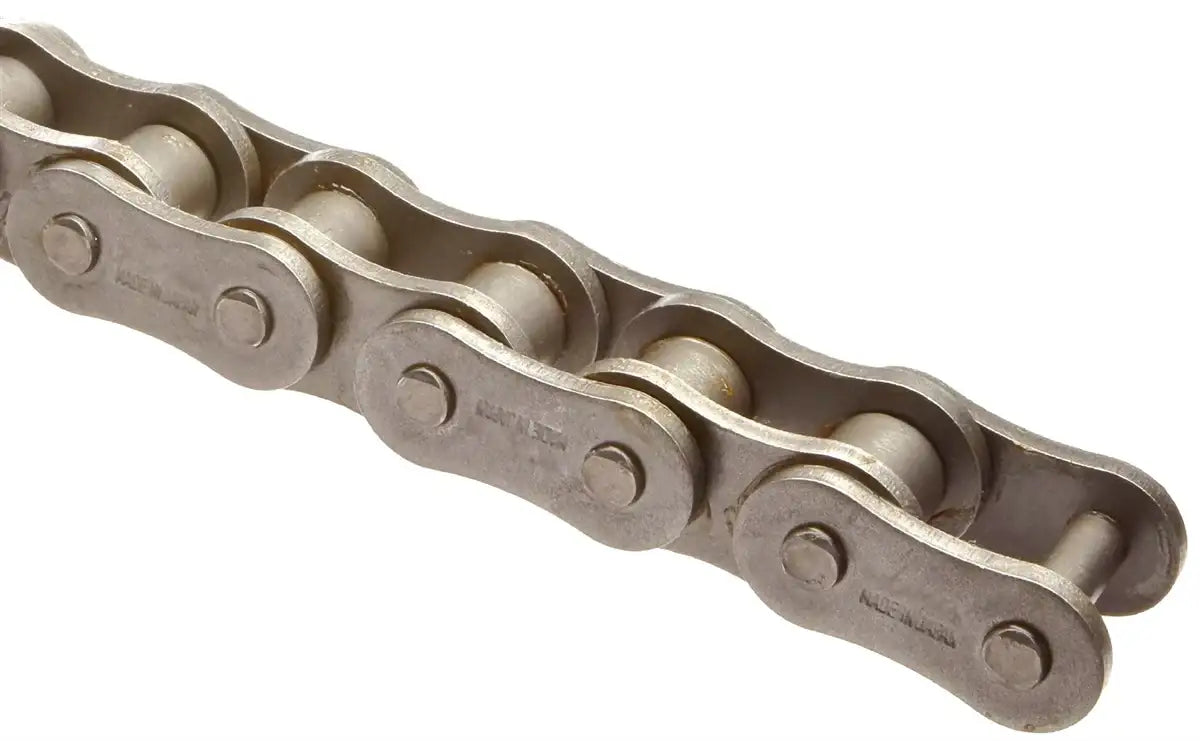

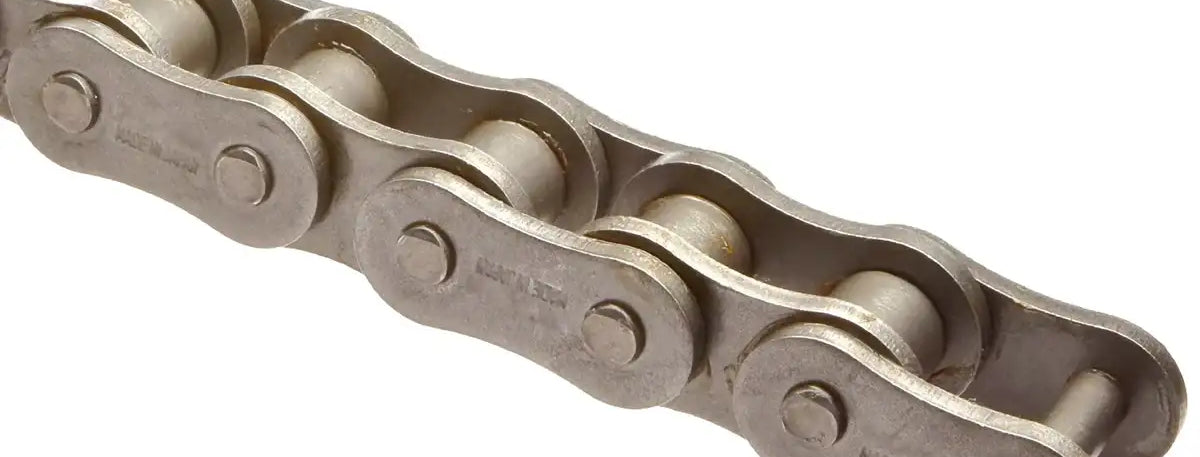

Premium Metric 12B Roller Chain - 10ft Box
Note:
Custom Cut to Length Chain Also Available
$119.99
SKU: P-12B-ROLLER-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Premium Metric 12B Roller Chain - 10ft Box Features
Premium Metric 12B Roller Chain - 10ft Box Specifications
Premier Series 12B roller chain provides the best in class performance, working life, and strength. This 12B roller chain features fully heat-treated and shot peened components that are manufactured using a high quality carbon steel, along with solid bushings and solid rollers and high precision construction. Heat-treated and shot peened high quality carbon steel precision components make the chain much stronger and increases the overall shock load and durability. Adding solid rollers and solid bushings to the roller chain dramatically increases the performance and longevity of the chain due to its ability to operate with less friction and absolute minimal stretch. Additionally, we offer a full line of 12B sprockets and attachments.
Dimensions:
Dimensions:
- Part Number: 12B
- Tensile Strength: 7,040 LBS
- Pitch (P): 0.750"
- Transverse Pitch (K): 0.766"
- Roller Link Width (W): 0.460"
- Roller Diameter (R): 0.475"
- Pin Diameter (D): 0.225"
- Overall Width (F): 0.929"
- Plate Thickness (T1): 0.071"
- Plate Thickness (T2): 0.071"
- Plate Height (H): 0.634"
- Weight: 0.764 LBS/FT
- Part Number: 12B
- Tensile Strength: 7,040 LBS
- Pitch (P): 0.750"
- Transverse Pitch (K): 0.766"
- Roller Link Width (W): 0.460"
- Roller Diameter (R): 0.475"
- Pin Diameter (D): 0.225"
- Overall Width (F): 0.929"
- Plate Thickness (T1): 0.071"
- Plate Thickness (T2): 0.071"
- Plate Height (H): 0.634"
- Weight: 0.764 LBS/FT
